Arduino Protoshield PCB [Design]

Rated 5.00 out of 5 based on 3 customer ratings
(3 customer reviews)

$0.80

Clear
SKU: N/A Category: Tags: , , ,

Description

You can select the board option to view each board main image.

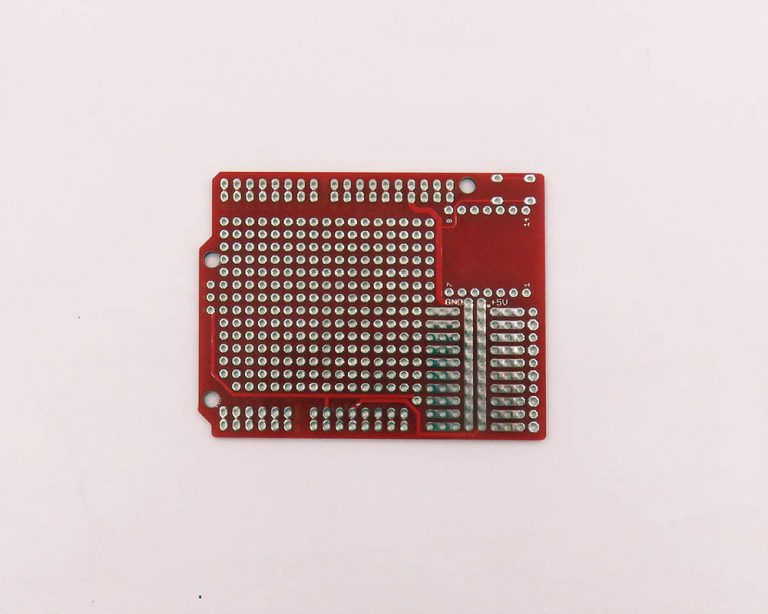

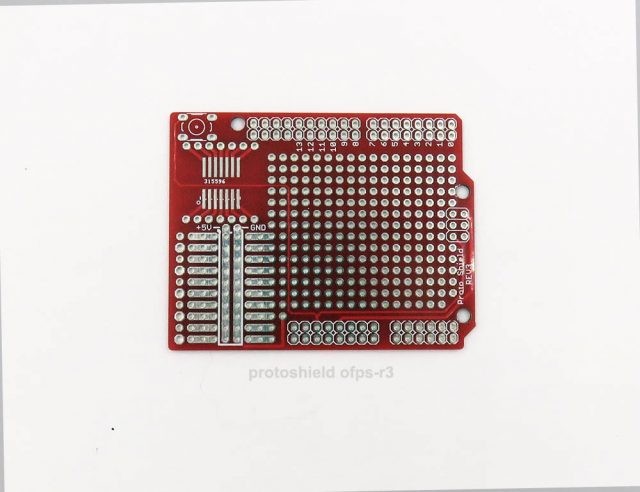

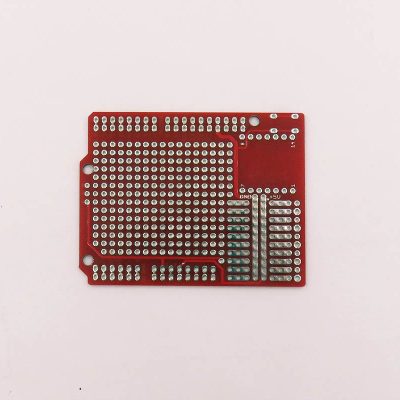

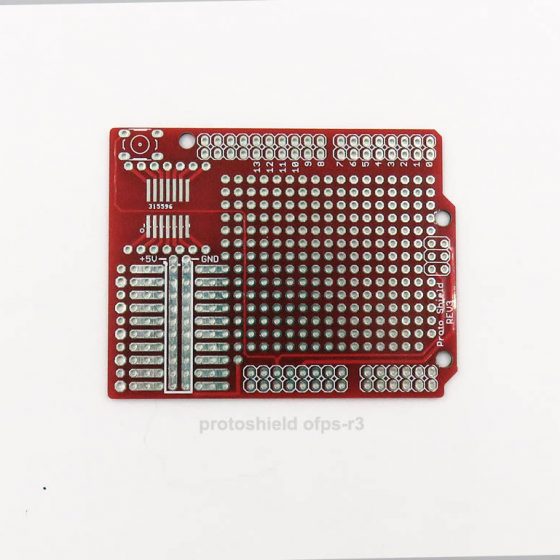

OFPS-R3:

  • Design based on arduino official protypeshield, but this is PCB only.
  • Each purchse is for one board only, not include any other accessories.

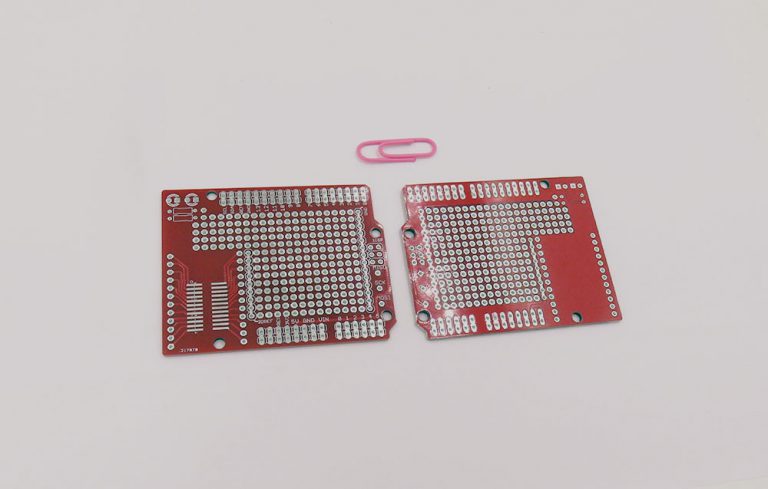

OF-R3:

  • Design based on arduino official rev3 board
  • On board two LEDs place, not yet connected.
  • Standard SOIC024 footprint for SMD IC
  • Each purchse is for one board only, not include any other accessories.

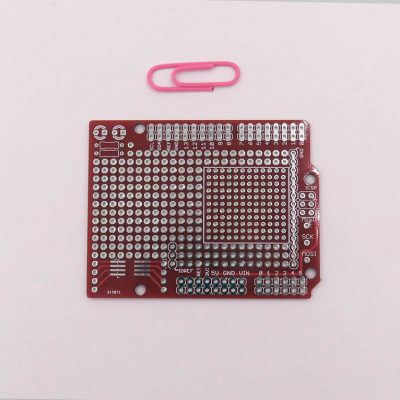

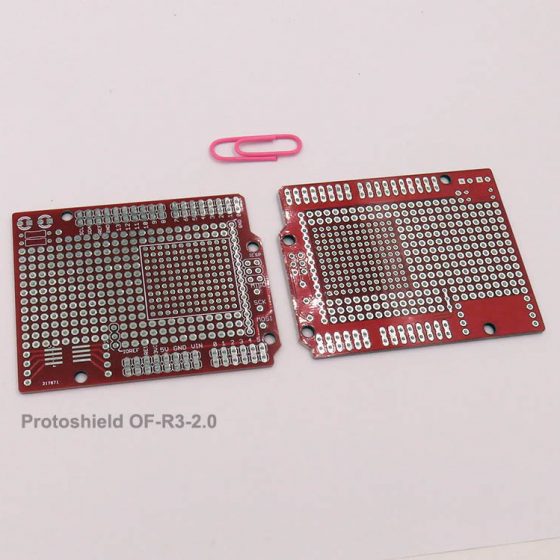

OF-R3-2.0:

  • Based on OF-R3 board, replaced with 12×11 2.0mm pitch pin holes
  • Added more 2.54mm pin holes. Smaller size of SOIC foot print, and shorten singal line of IOREF.
  • Mixed with 2.54 stanadard pin header, make the connection for 2.0 pitch board like wireless board more easy.
  • Each purchse is for one board only, not include any other accessories.

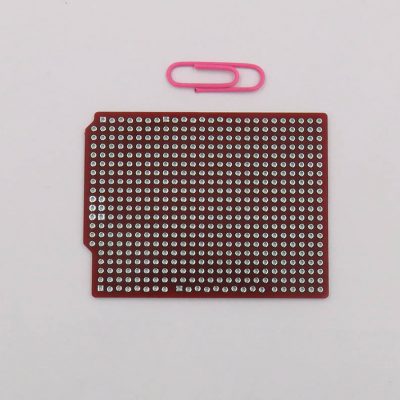

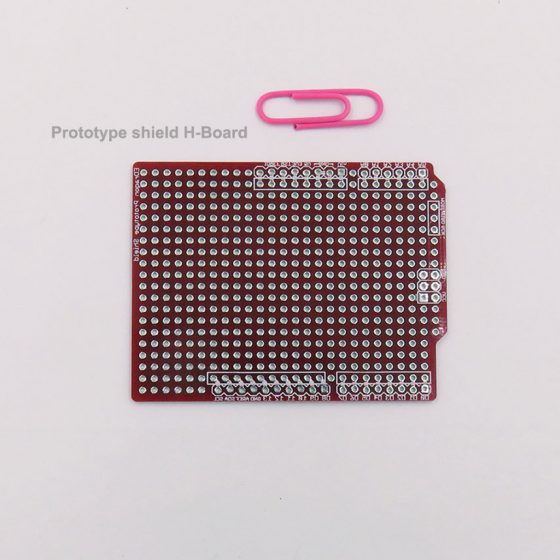

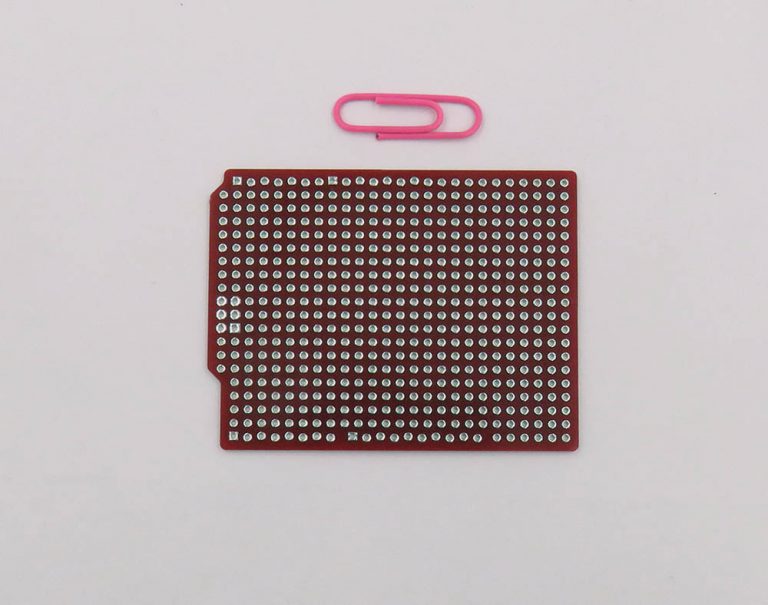

H-Board

  • PCB full covered with 2.54mm pin holes.
  • Still stackable as an arduino prototype shield.
  • Each purchse is for one board only, not include any other accessories.

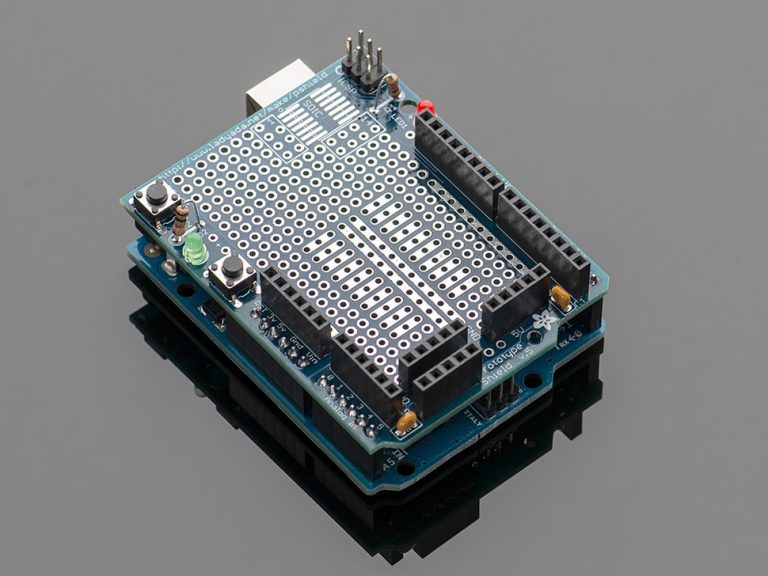

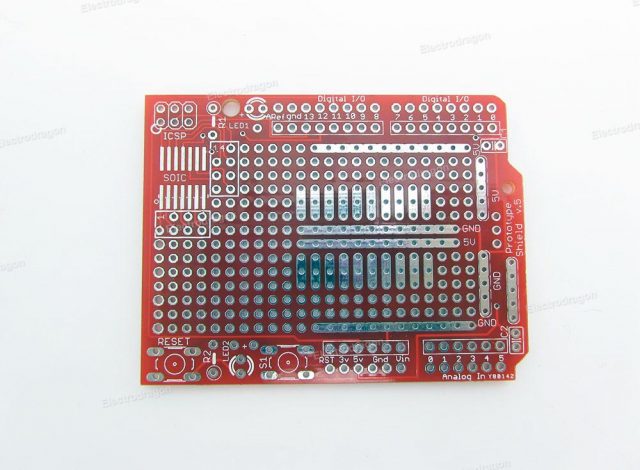

FR-R1:

  • Arduino classical prototype shield PCB board.
  • A IC pattern for adding DIP ICs up to 20 pins
  • Power rails down the middle and sides
  • A reset button and an extra general use button
  • 2 3mm general use LEDs, red and green, as well as 2 matching resistors
  • The ICSP header is up top if you like to upload to your Arduino using a programmer
  • A surface-mount chip area for up to 14 SOIC size parts
  • Compatible with either tiny breadboards or ‘standard’ breadboards with the rails removed.
  • Every pin is brought out, including the new 3V and Reset header pins
  • 2 0.1uF capacitors on either side for extra power stability

Other parts which are needed for these PCBs:

Documentation:

Additional information

Weight N/A
Design version

FR-R1, H-Board, OF-R3, OF-R3-2.0, OFPS-R3

3 reviews for Arduino Protoshield PCB [Design]

  1. Rated 5 out of 5

    (verified owner)

    very nice accessory fro arduino projects
    make your own shields.
    must have

  2. Rated 5 out of 5

    (verified owner)

    Very good quality board, very useful in making arduino shield prototypes, highly recommended! You may also need the extended pin header sold in this store, http://www.electrodragon.com/product/arduino-special-used-break-away-pin-header-with-long-male-pins-68-pins/

  3. Rated 5 out of 5

    (verified owner)

    Good quality and well designed board. The Arduino pins are doubled which makes connections easy. This board is much better than the equivalent one for the ArduinoMega.
