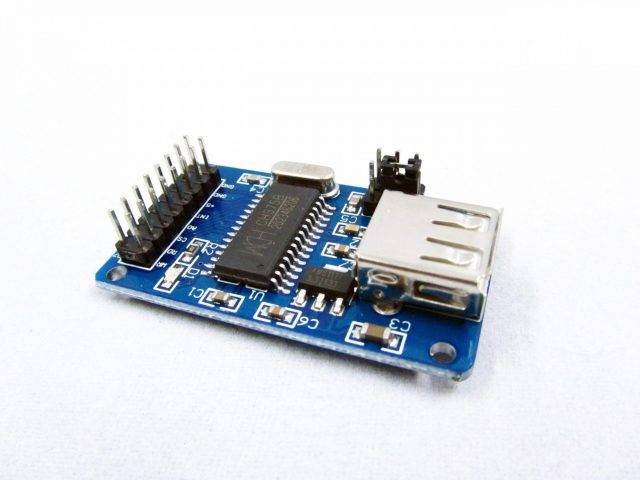

CH375 USB Module

$4.10

SKU: MOT1003 Category: Tag:

Description

CH375 is a USB bus universal interface chip, supports USB-HOST Mode and USB-DEVICE/SLAVE Mode. There are 8-bit data bus and read, write, chip select control wire and interrupt output in CH375.It is convenient to link CH375 to control system bus of MCU/DSP/MPU.CH375 also provides serial communication in USB-HOST mode. It connects with DSP/MCU/MPU through serial input, output and interrupt output.

Module Features:
  • 2×8 connector, can be easily mounted with the MCU
  • According jumper selectable, can work in parallel or serial mode
  • USB status indicator
  • Onboard 3.3V LDO 1117, provides 800mA maximum current
  • 5V power supply from the target board
  • 12MHZ crystal

Documentation on this page.

Additional information

Weight 0.01 kg
