DIL 600mil to 300mil Convert Board Kit

Description

Convert the 600 mil Wide DIL28 pins to 300 mil silm DIL28 pins, let the programmer sockets support more possibility. Currently support our TQFP32 socket.

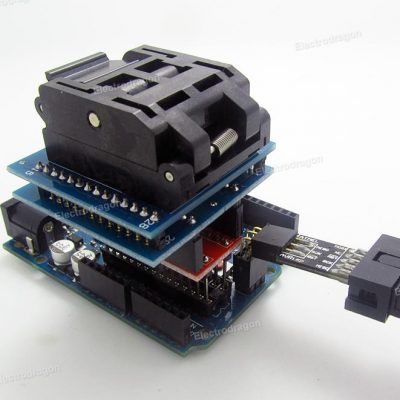

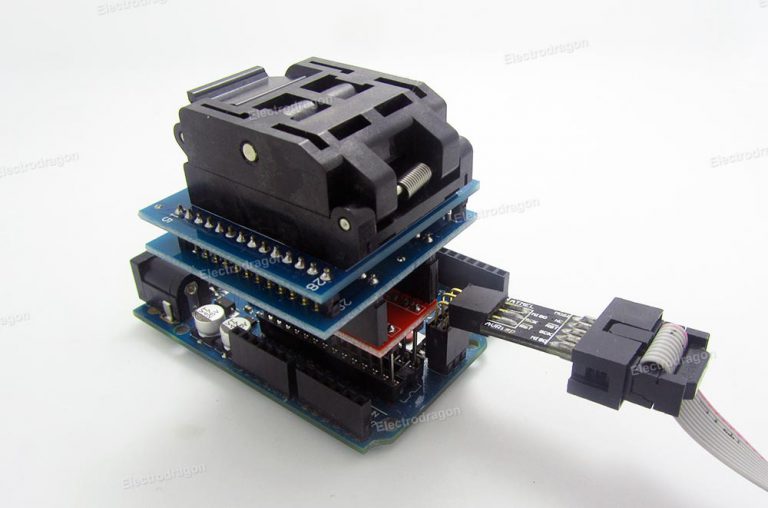

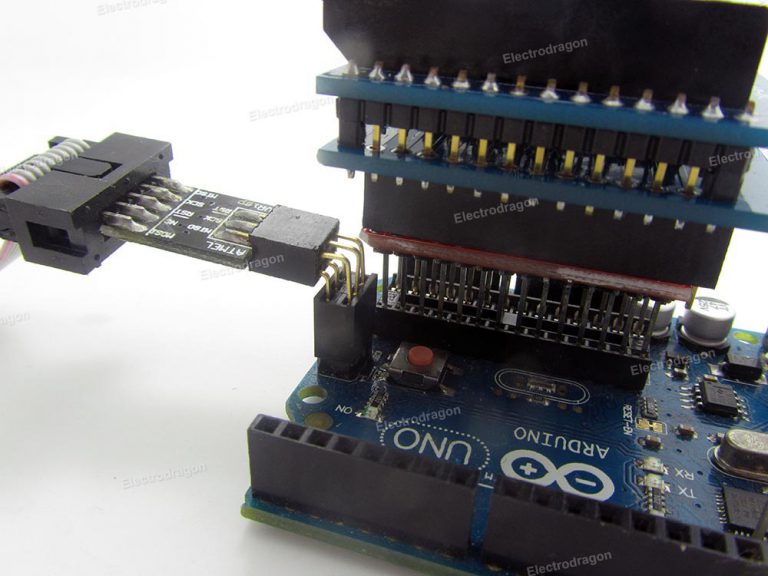

Extra ICSP 90-degree header includes for arduino uno board usage, please see the attached pictures.

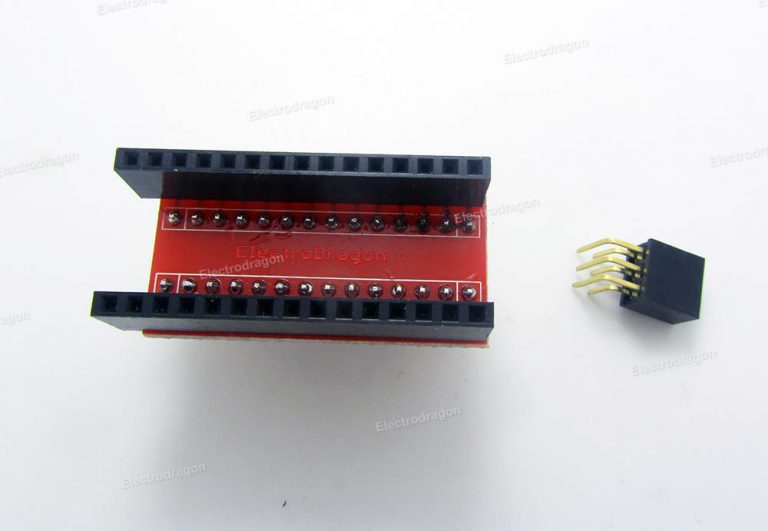

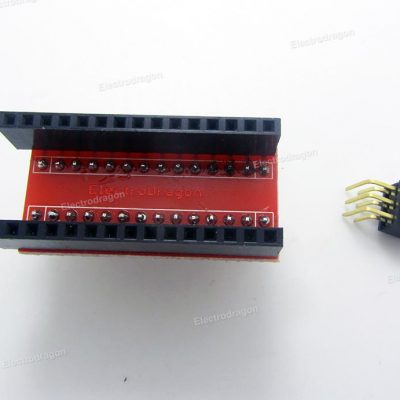

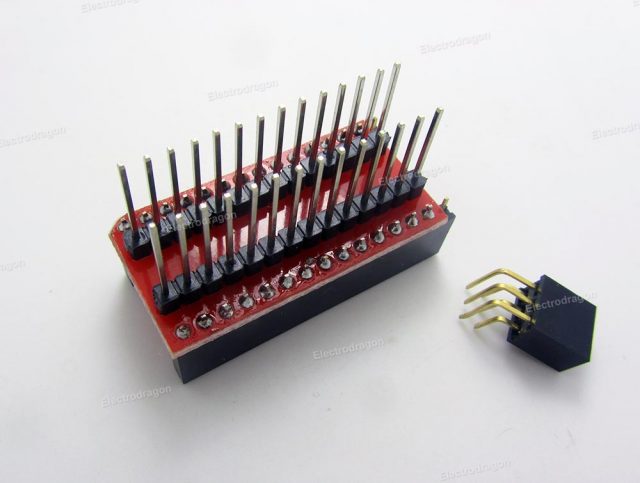

Please note the board is not yet soldered, this has to be done by yourself, this kit includes:

• 2pcs 1×14 long-size male pin connectors and 2pcs 1×14 female pin connectors
• 1pcs convert board
• 1pcs of ICSP convert header

Note: Cut the corner of the convert board to pin 1 to make sure it has less conflict with the ICSP header.
