EDArduino Nano-C (New USB CH340) Arduino-Compatible

Rated 5.00 out of 5 based on 5 customer ratings
(5 customer reviews)


SKU: DAR1040 Category: Tags: , ,

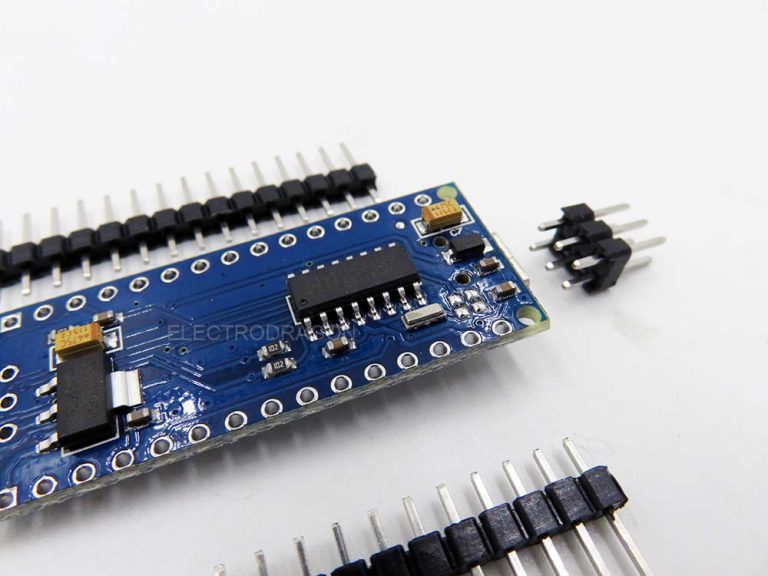

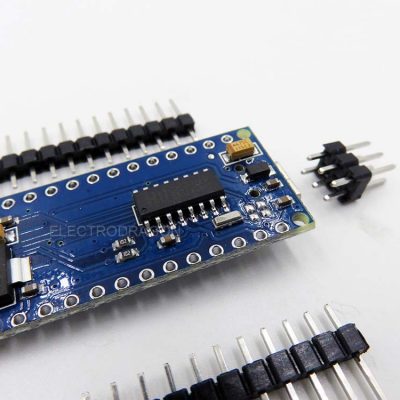

To lower the price for genius FTDI FT232RL USB-TTL IC, this is the new version of nano, replace the FT232RL by CH340, most of the rest remains the same.

50% price off than the original genius design!

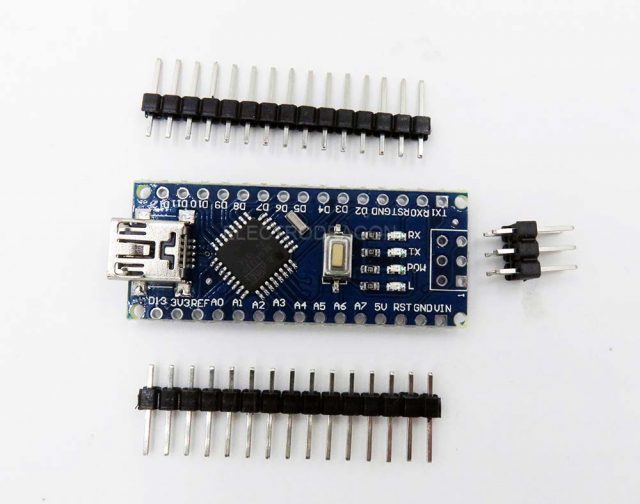

Note: Please note the break away pins headers of this board is not yet soldered.

  • MCU: ATmega328
  • Operating Voltage (logic level): 5 V
  • Input Voltage (recommended): 7-12 V
  • Input Voltage (limits): 6-20 V
  • Digital I/O Pins: 14 (of which 6 provide PWM output)
  • Analog Input Pins: 8
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader
  • SRAM: 1 KB (ATmega168) or 2 KB (ATmega328)
  • EEPROM: 512 bytes (ATmega168) or 1 KB (ATmega328)
  • Clock Speed: 16 MHz
  • Dimensions: 0.73″ x 1.70″

No extra schematic or documentation available yet for this item, please refer to the original design.

Buck order price $2.7 for 50PCs +, price auto update in cart page.

The basic use guide please see on this page.

Additional information

Weight 0.02 kg
