GPS SD RF Lora Shield for Raspberry Pi R2 (w/o Lora Module)
$8.60
- Description
- Additional information
- Reviews (3)
- Product Enquiry
Description

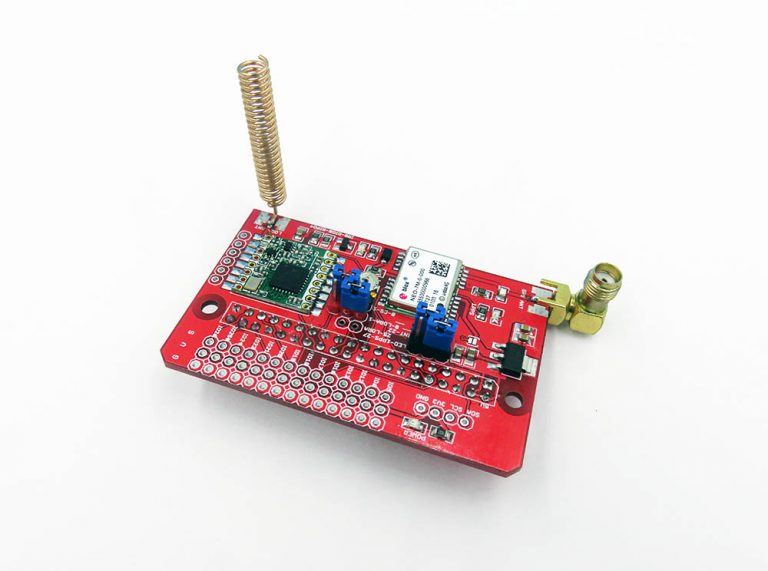

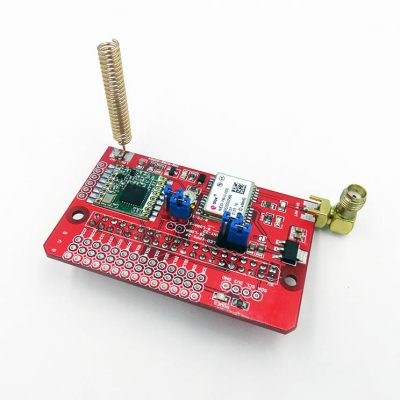

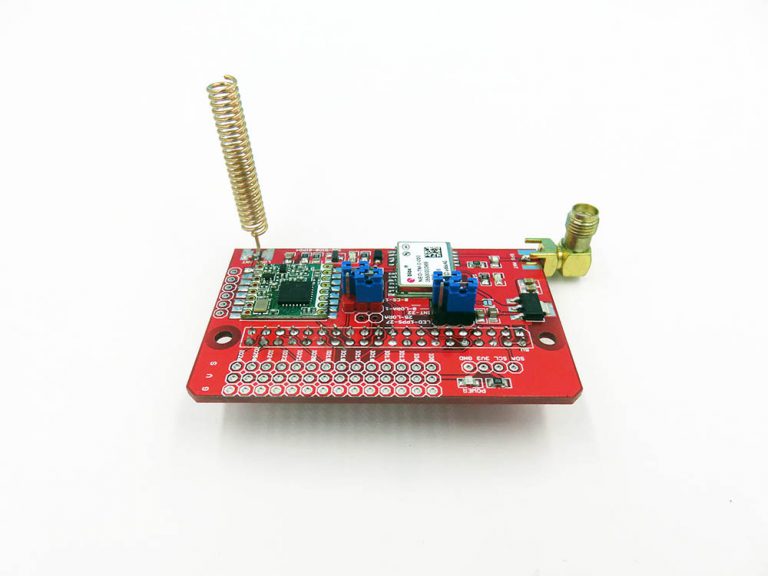

GPS:
- Use GPS module Ublox Neo-7M, or NEO-6M or ATGM332 compatible GPS module. All have the same performace.
- Fast and high speed locating.
- By test
- with our 3M meter GPS antenna, fixed in 30 seconds
- by small ceramic antenna fixed in 3- 10 mintues, in brand new module.
- On board backup battery, for next time quick fix location.
- On board 1PPS fix GPS LED to indication location is fixed.
- Interruption pin and 1PPS pin can connect to RPI by jumper.
Reserved Lora RF Transceiver (Module need to be purchased alone):
- Please notice lora module is not soldered.
- Please notice the footprint of this lora module ONLY support the one selling in our store, other version is not supported and it is different.
- Support “low cost lora gateway” simple run ./lora_gateway, frequency is top important.
- Better attached antenna, a high performance antenna is critical for signal.
- Support our type loraduino board, SX1278/76. Also use low cost lora gateway folder aruduino -> ping-pong sketch, see demo gif in wiki page.
- CE chip select pin can be chose by CE0, CE1 or gpio25 by jumper. For dragino code, please close jumper GPIO25.
- Lora DIO0 connects to GPIO4, attached with on board LED.
- Lora reset pin GPIO17
- For quick demo code please refer to here.
MicroSD:
- Support micro SD card, CE pin also selectable by CE0 or CE1
Other Features:

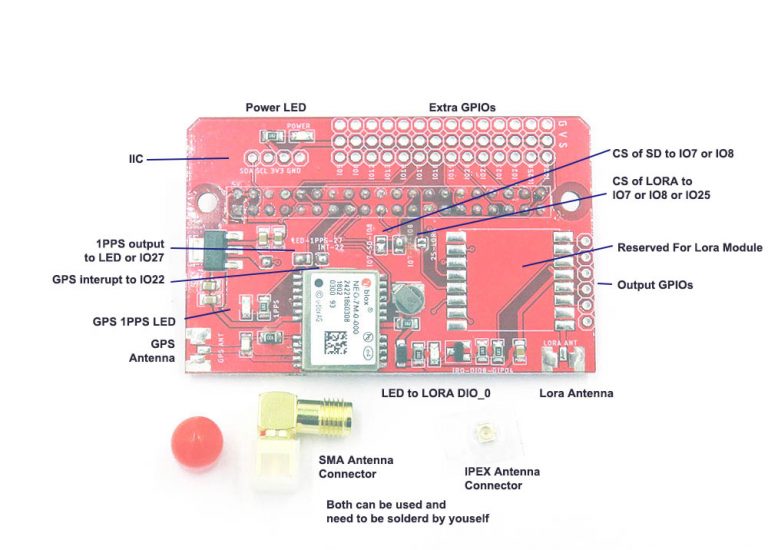

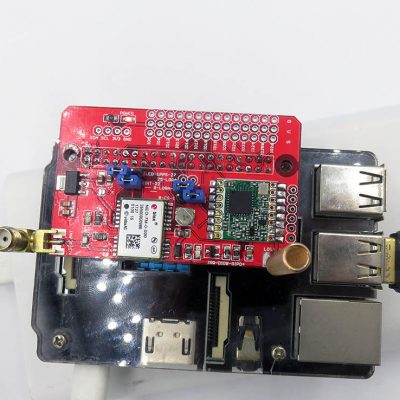

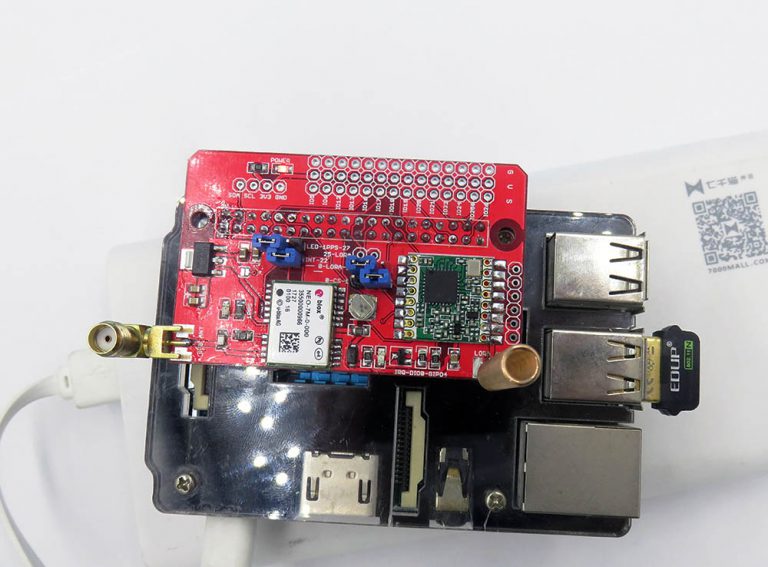

- All the breakout pins for raspberry pi
- Break out IIC pins
- On board power led
Antenna:
- Universal GPS and Lora antenna connection.
- Support IPEX or SMA antenna, can also straight soldering pin/wire antenna.
- Antenna soldering is for your inspriation only! You can attach antenna anyway you like by soldering.
Packaging:
- Not include Lora module, please buy from here! (module included lora antenna)
- Not include GPS antenna, buy large one from here, or small one from here.

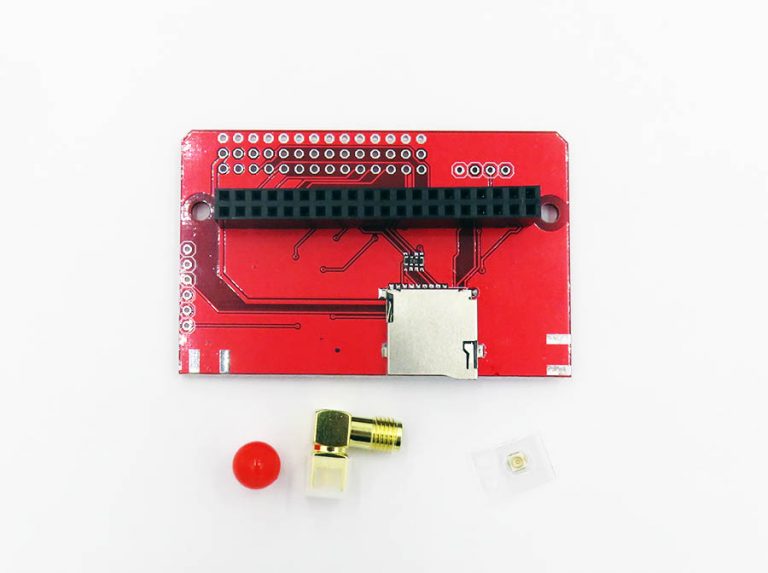

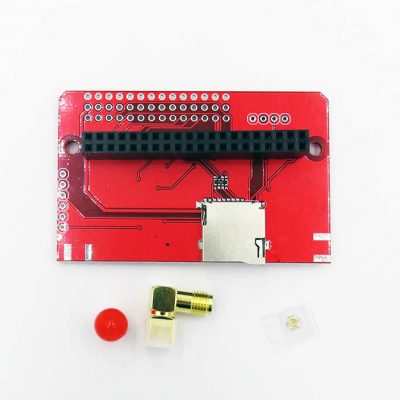

- Include all the rest assembled board, except lora module!

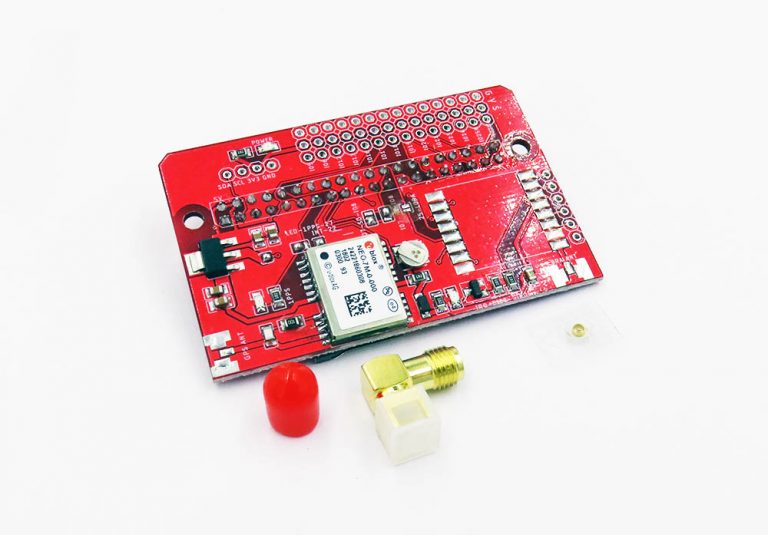

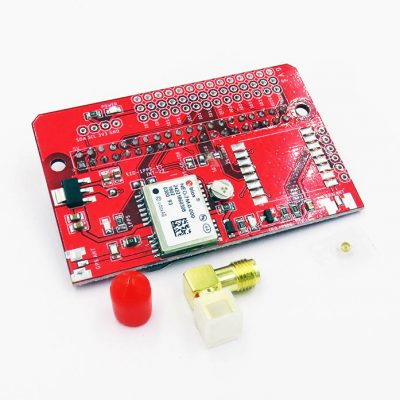

- Include one 90-dgree SMA connector jack, one IPEX connetor jack.
Documentation please see on this page.
Update Logs:
- Latest and should be last version R2.1.
- On board jumper change to SMD soldering jumper. To ease the soldering for Lora module.
- Image not yet updated for this.
Additional information
| Weight | 0.03 kg |
|---|---|
| Wireless Tech | Lora |
barewires (verified owner) –
My first bench tests were done when the shield was not attached to the Raspberry Pi GPIO. Powered by a ‘PL2303HX USB to COM/UART/TTL Integrated Programmer Cable’ had 5 volts (red) to GPIO pin 2, Ground (black) to pin 6, and serial data out (green) to pin 10, and therefore the dongle could be plugged into any system with a serial terminal at 9600 baud. The Shield does requires a ‘GPS Magnetic Active External Antenna w/ 3m cable’ which is also very convienient as the antenna can be placed outside a window.
As there is no lithium battery storing ephemeris data, a cold power will always take some time. The $GPRMC data = time showed after 8 seconds, date after 27 and full lat/long data after 1m40 seconds. With a full view of the sky the data will be much faster.
At this stage
Chao (store manager) –
Good to know this, thanks a lot for the review, any suggestion please add, also email. Thanks!
eceronv (verified owner) –
Great product with great possibilities, recommended as a breakout board
