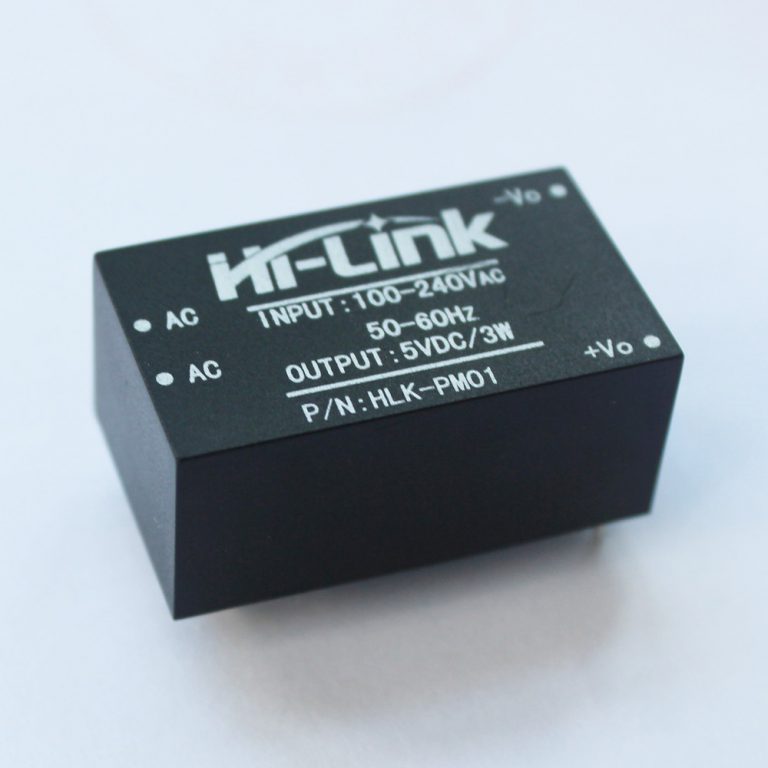

HLK-PM01 AC-DC 220V-5V Module

$3.00

SKU: OPM1140 Category: Tags: , ,

Description

  • Meet UL, CE requirements,
  • Thin, small
  • Full voltage input (90 ~ 264Vac)
  • Low ripple, low noise
  • Output overload short circuit protection function
  • High efficiency, high power density
  • Product design to meet the EMC and safety testing requirements
  • Low power consumption, green, no-load loss <0.1W
  • 100% load aging and testing

Envioronment Condition:

  • Operating temperature -20- + 60 ℃
  • Storage temperature -40- + 80 ℃
  • Relative humidity 5-95%
  • Cooling method of natural cooling
  • Atmospheric pressure 80-106Kpa
  • Altitude ≤2000m
  • Vibration vibration coefficient 10 ~ 500Hz, 2G10min. / 1cycle, 60min.each along X, Y, Z axes

Input Features:

  • Rated input voltage 100-240VAc
  • Input voltage range 90-264VAc
  • Large input current ≤ 0.2 A
  • Input inrush current ≤10A
  • Large input voltage ≤ 270VAc
  • Input slow start ≤ 50mS
  • Input low voltage efficiency Vin = 110VAc, the output full load ≥ 69%
  • Input high voltage efficiency Vin = 220VAc, the output full load ≥ 70%
  • Long-term reliability MTBF ≥100,000h
  • No-load rated output voltage + 5 ± 0.1 VDc
  • Full load rated output voltage + 5 ± 0.2 VDc
  • Short time large output current ≥1000 mA
  • Long time large output current ≥600 mA
  • Voltage regulation rate ± 0.2%
  • Load regulation ± 0.5%
  • Output ripple and noise (mVp-p) ≤50 mV
  • Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, load side and 10uF and 0.1uF capacitor to test.
  • Switch machine overshoot (rated input voltage, output plus 10% load) ≤ 5% VO
  • Output Overcurrent Protection Outputs 150-200% of the maximum load
  • Output short circuit protection Normal output when the short circuit, short circuit after the automatic return to normal work

Safety features:

4.1 product design in line with UL, CE safety certification requirements.

4.2 Safety and electromagnetic compatibility

The input design uses UL certification 0.5A insurance;
PCB board with double-sided copper clad plate production, material fire rating of 94-V0 level;
Safety standards comply with UL1012, EN60950, UL60950
Insulation voltage I / P-O / P: 2500VAC
Insulation resistance I / P-O / P> 100M Ohms / 500VDC 25 ℃ 70% RH
Conduction and Radiation Conforms to EN55011, EN55022 (CISPR22)
Electrostatic discharge IEC / EN 61000-4-2 level 4 8kV / 15kV
Radio frequency radiation immunity IEC / EN 61000-4-3 See the application note

4.3 temperature safety design
At room temperature, the power supply capacitor, the main transformer and other internal surface temperature rise does not exceed 90 ℃;
Shell surface temperature rise does not exceed 60 ℃;

Additional information

Weight 0.03 kg
