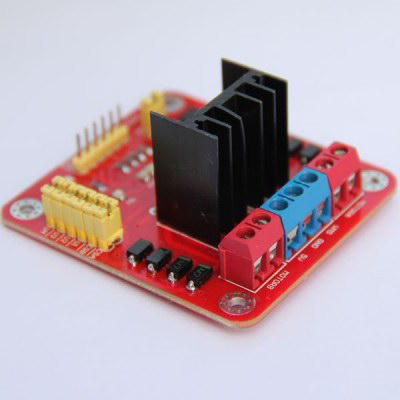

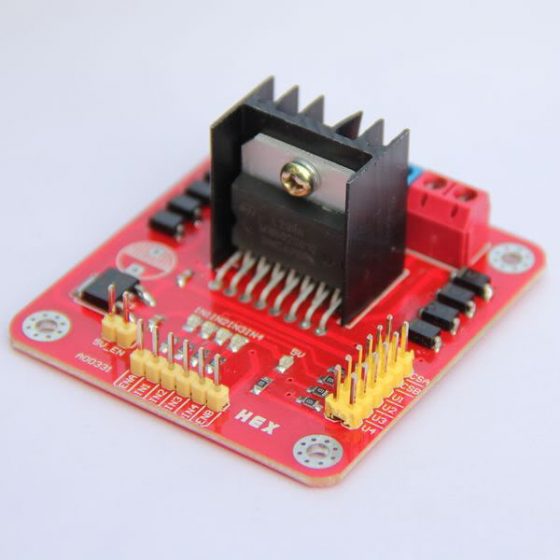

L298N Stepper Motor Driver Controller Board for Arduino

$4.60

SKU: 3104344. Category: . Tags: , , , , .

Product Description

The L298N driver module, using ST’ L298N chip, can directly drive two 3-30V DC motor, and provide a 5V output interface, power for 5V single-chip circuitry , support 3.3VMCU control. you can easily control the DC motor speed and direction, also control the 2-phase stepper motor. It is essential for smart car.

Features:

  • Driver: L298N Dual H Bridge DC Motor Driver IC
  • Driven part of the terminal supply area Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: +7 V ~ +35 V
  • Driven part of the peak current Io: 2A
  • The logical part of the terminal supply area Vss: +5 V ~ +7 V (can take power within the board +5 V)
  • The logical part of the operating current range: 0 ~ 36mA
  • Control signal input voltage range:
  • Low:-0.3V ≤ Vin ≤ 1.5V
  • High: 2.3V ≤ Vin ≤ Vss
  • Enable signal input voltage range:
  • Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid)
  • High: 2.3V ≤ Vin ≤ Vss (control signal active)
  • Maximum power consumption: 20W (when the temperature T = 75 ℃)
  • Storage temperature: -25 ℃ ~ +130 ℃
  • Other Extensions: control of direction indicators, the logic part of the plate to take power interface.
  • Driver Board Size: 55mm * 60mm * 30mm
  • Drive plate Weight: 33g

Additional Information

Weight 0.03 kg
5.00 out of 5

2 reviews for L298N Stepper Motor Driver Controller Board for Arduino

  1. 5 out of 5

    :

    Nice motor driver – good layout and easy to use with Arduino.

  2. 5 out of 5

    (verified owner):

    Nice and easy to use H Bridge Motor driver. Compatible with Arduino.
