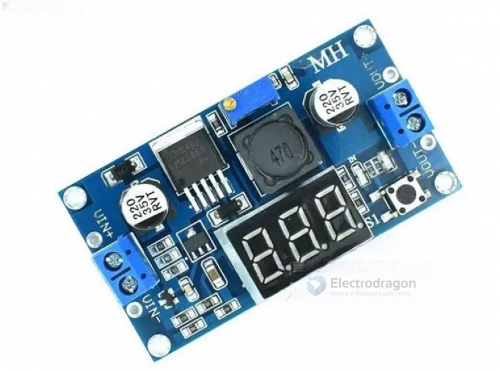

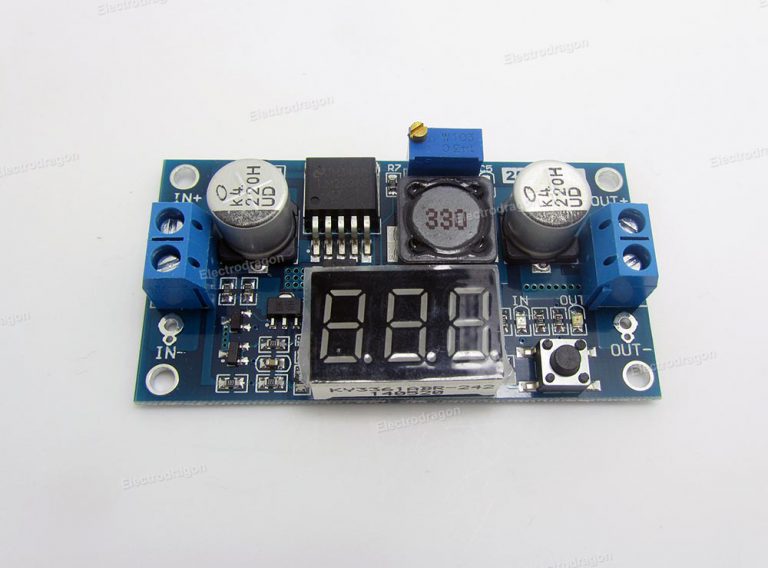

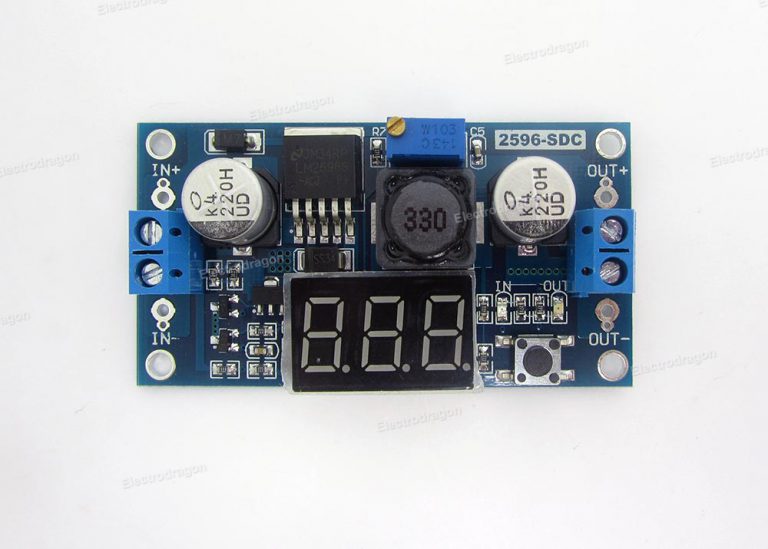

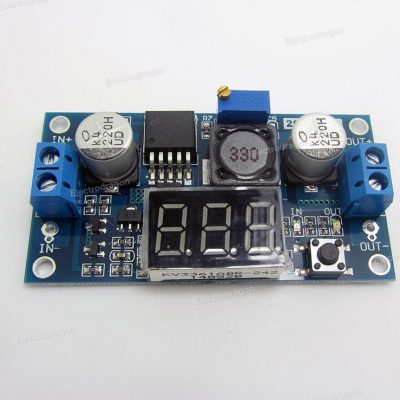

LM2596 ADJ DC Buck Module, High Power w/Display 2-3A

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

$3.70

SKU: OPM1003 Categories: , Tags: , ,

Description

  • Including Voltage measurement display, use internal MCU for control and measurement, measurement inaccuracy within ±0.05V, range from 0 ~ 40V. (To ensure the accuracy of the volt meter, please keep to input volt over 4V)
  • Pressing the button to switch the input or output voltage measurement, and a light show which way is being measured voltage, and save the settings, even then boot off.
  • Voltmeter can be turned off when not needed when you can easily touch the left button
  • With cable terminals,  can still be easy to use even no soldering iron, and retention wire connection point
  • Input Voltage 4.0 ~ 40V (input voltage must be higher than output voltage 1.5v or more.)
  • Adjustable output voltage range of 1.25V ~ 37V continuously adjustable (input voltage must be higher than output voltage 1.5V)
  • The maximum output current of up to 3A, normal and stable operating current of 2A
  • Using an internal oscillator frequency 150KHz, belongs to the second generation of switching voltage regulator, low power consumption and high efficiency.
  • With overheating protection and short circuit protection
  • Package do NOT include the screw anymore, also product layout update slightly but more compact (Oct. 2014)

Documents: Not any other documents available.

Additional information

Weight 0.055 kg

1 review for LM2596 ADJ DC Buck Module, High Power w/Display 2-3A

  1. Rated 5 out of 5

    (verified owner)

    good quality, displays is very usefull.
