Mini Thermal Receipt Printer, Serial 02
Mini Thermal Receipt Printer, Serial 01Mini Thermal Receipt Printer, Serial 02thermal printer r2thermal printer r2 02thermal printer r2 03

Mini Thermal Receipt Printer, Serial 5V [Type]

$20.60

Clear
SKU: N/A Category: Tags: ,

Product Description

Type:

  • Type-R1 supports well arduino R1 library, specially the bitmap
  • Type-R1 is 5p xh2.54
  • Type-R2 does not well support bitmap library, probably need hack work, but can work with R2 library.

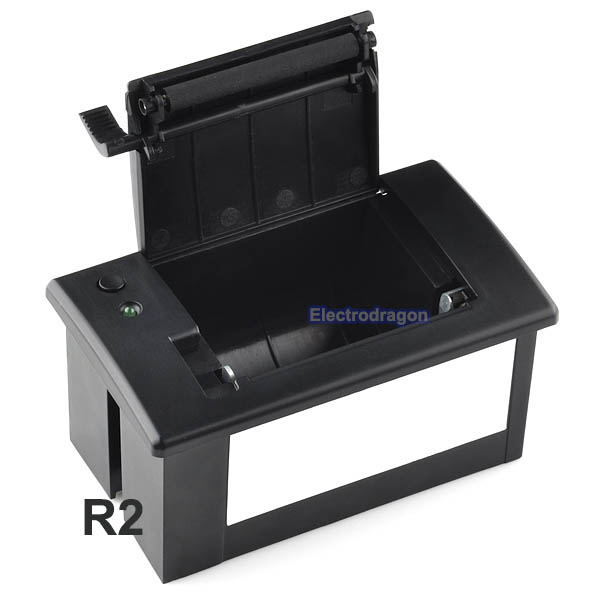

  • Type-R2 is 2 group of 3p xh2.54

Features:

  • The thermal printers are also known as receipt printers, they’re what you get when you go to the ATM or grocery store.
  • Thermal printer also require no ink for printing, easy for maintaining.
  • This is an embeddable item, with serial interfacing, ideally can work with MCU, now it is avaialble to be used in your embeddable project.
  • Easy install with installation holes, fix clip in a open panel.
  • Input power is 5-9V, logic on 3.3-5V.

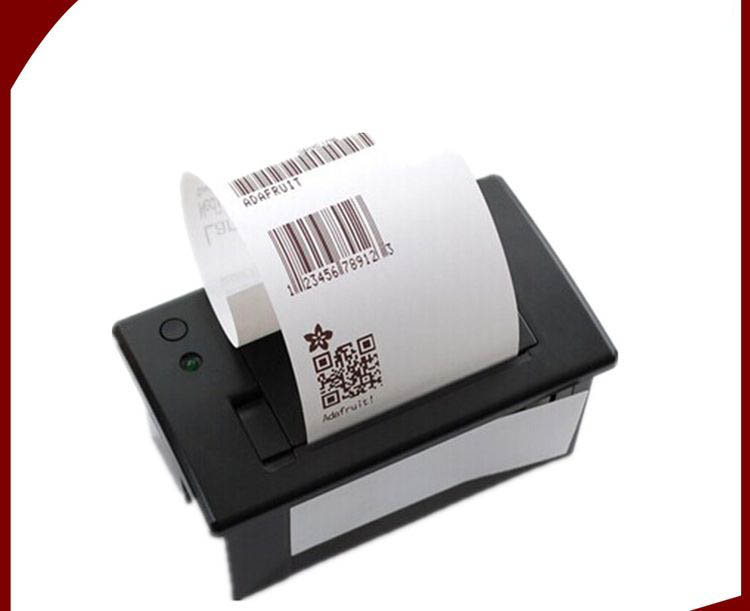

  • Arduino library supports to print text, barcodes, bitmap image, QR code.
  • Applicaton: taxi meter, recorder, self-service equipment, ticket machines, medical equipment, electronic equipment, testing equipment.
  • Demo video avaialble here.
  • Package includes:
    • Main thermal printer,

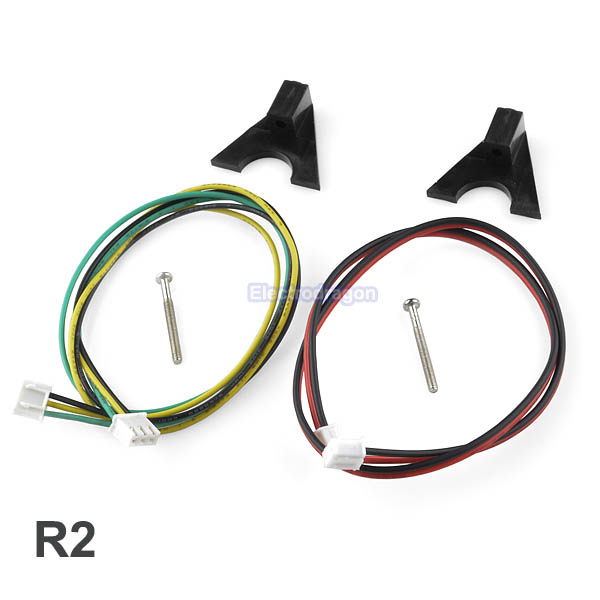

    • 5P XH2.54 cable for type-R1, or 2x 3P XH2.54 cable for type-R2
    • 1x roll of 57.5mm thermal printing paper
    • Installation 2x clip, both side.

Specifications:

  • Embedded depth of 32/36 mm
  • Dimensions (W x D x H) 103 × 57 × 50 mm
  • Installation panel size 111 × 65 mm
  • Print type Thermal
  • Print speed 50 – 85 mm / sec
  • Resolution 8 points / mm, 384 points / line
  • Effective print width of 48 mm
  • Character character set ASCII code, GB2312-80 (Chinese)
  • Print font ANK: 5 × 7, Chinese: 12×24, 24 × 24
  • Paper specifications Paper type Thermal paper roll
  • The paper width is 57.5 ± 0.5 mm
  • Paper thickness 0.06 to 0.07 mm
  • Paper core diameter 13 mm (minimum)
  • Roll the largest diameter: 23 mm
  • Reliability Mean Time Between Failures (MCBF) 5 million rows
  • Interface TTL
  • Embedded depth of 32/36 mm
  • Power supply 5V-9V DC
  • Ambient operating temperature 5 ° C to 50 ° C
  • Operating humidity 10% ~ 80% 1
  • Storage temperature -20 ° C to 60 ° C
  • Storage humidity 10% ~ 90

Additional Information

Attribute (Type)

Type-R1, Type-R2
