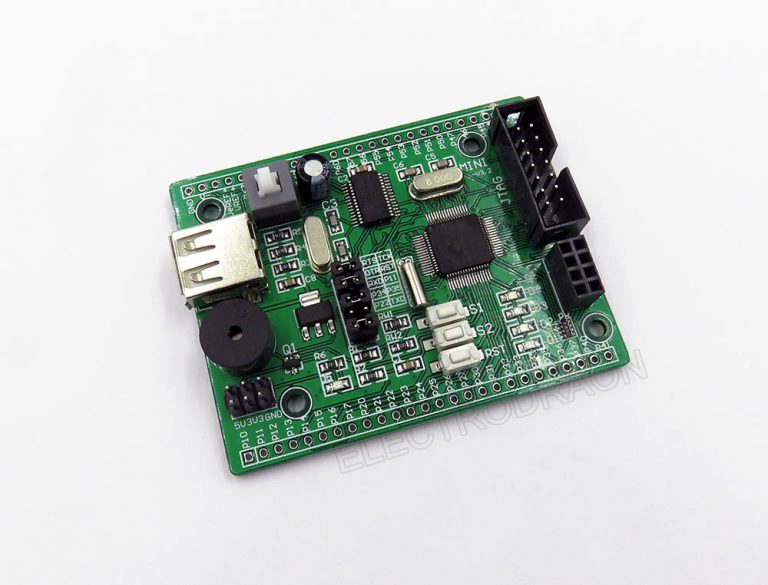

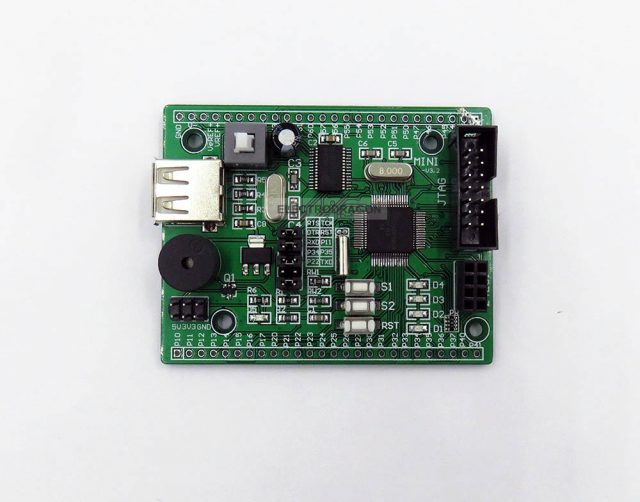

Mini430 Dev Board, MSP430F149

$7.70

SKU: DOD1060 Category: Tags: , ,

Description

Please notice the on board USB-UART (BSL) IC is PL2303HX, may have compatiblity issues for WIN7 and all above. Use old version drive can work, but not best solution.

Packages:

  • MSP430f149 (mini430) mini development board
  • Male to Male extension cable
  • 2 sets of copper pillars

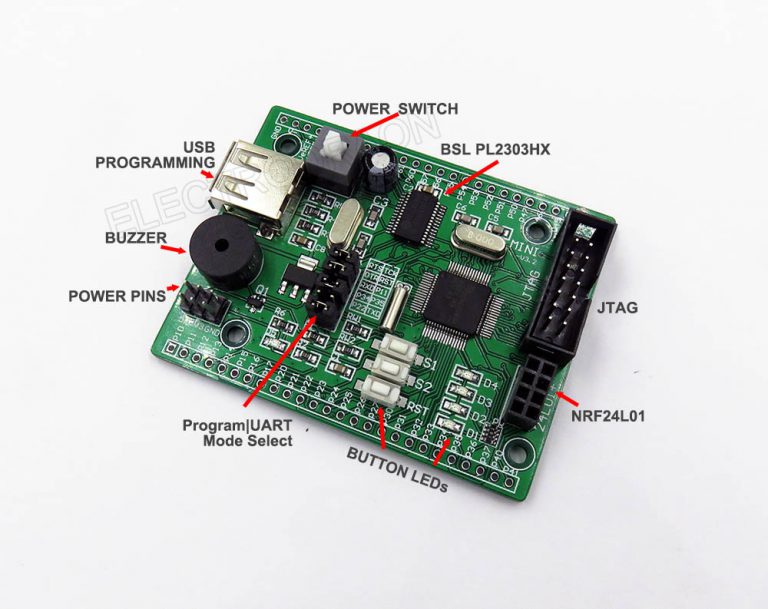

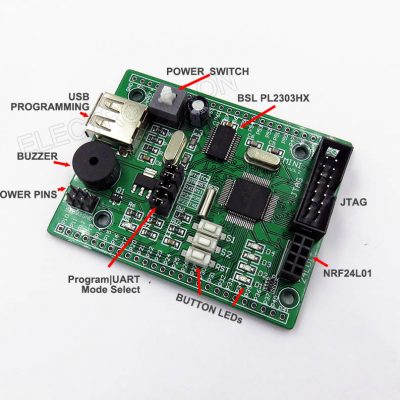

Onboard Resources:

  • Onboard USB BSL program download PL2303HX, you can download the program for itself or other board. High quality capactiors.
  • Comes with 2 independent button input.
  • Onboard manual reset button.
  • Wireless NRF24L01 connector
  • Comes with 4 test LEDs
  • Buzzer circuit, can be used to play music
  • Provide 32.768KHZ and 8MHZ two crystal connection
  • Using standard JTAG interface (14-pin), support hardware simulation.
  • All IO ports (including AD power, etc.) are led (not welded pin, can be up or down welding).
  • Provide 3.3v and 5v output power supply pin.
  • The board itself can be completed part of the experiment, also be directly inserted into the use of protoyping board, expand more features.

Documentation schematic please see on this page.

Additional information

Weight 0.03 kg
