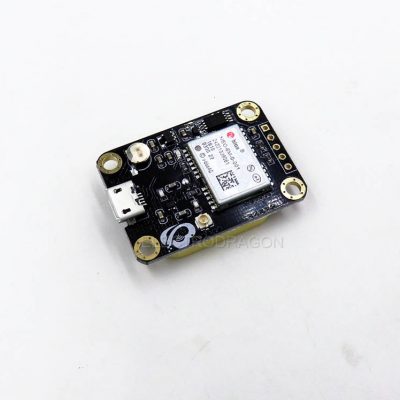

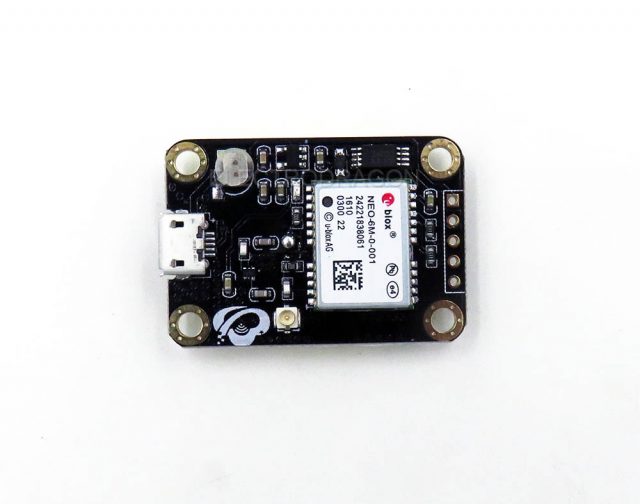

NEO-6M GPS Module R2

SIM808 Dev. Board (GSM+GPRS+GPS, Replacing SIM908)
ED20 2G+GNSS Module, Based on MT2503
5.00 out of 5
1 customer review|Add a review

$10.50

SKU: NGS1052 Category: Tags: , ,

Description

  • With a USB interface, you can directly use the phone data cable in the computer point of view positioning effect. USB direct connection to the computer, that is, with the host computer-owned serial port function, no external serial port module

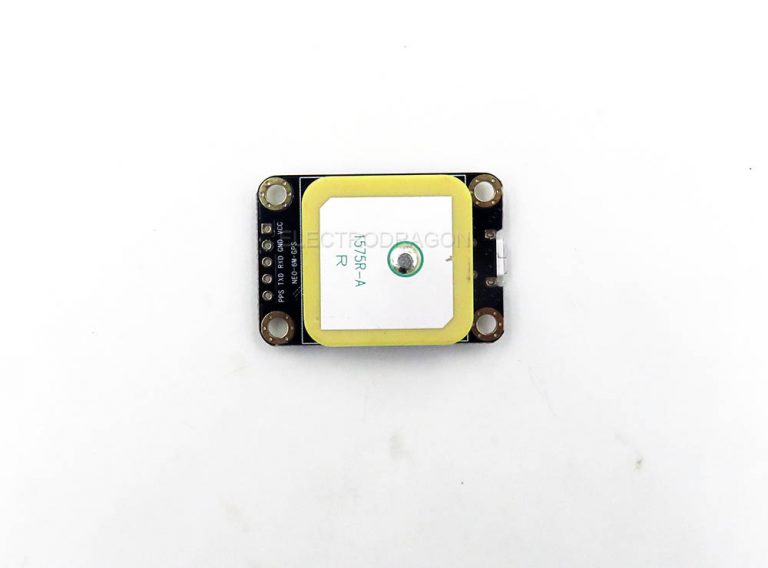

  • With an on-board passive ceramic antenna and passive antenna amplifier circuit, alone with better results.
  • With IPX interface, you can directly access IPX active antenna optionally. Avaialble here.
  • Increase the MAX2659 signal amplification, search signal stronger
  • The module comes with rechargeable battery backup, you can power-down to maintain ephemeris data
  • EEPROM data save for GPS record

Features:

  • Input voltage: 3.3-5.5V
  • Power consumption
    • Normal mode: 50 mA
    • Power saving mode: 30 mA
  • Temperature
    • Operating Temperature -40 ° C to + 85 ° C
    • Storage temperature -55 ° C to + 100 ° C
  • Pin descriptions and electrical connections
    • VCC Power input pin 3.3-5.5V
    • GND Power ground
    • RXD Module serial port to receive the foot – then single-chip serial port TXD sent
    • TXD Module serial send pin – then the microcontroller serial RXD reception
    • PPS Clock pulse output pin, connected to the red LED lights
      On: Normal operation, but not positioned. Blinking: The positioning was successful
  • Baud rate: The default baud rate for the module is 9600

Documentation on this page.

Additional information

Weight 0.04 kg

1 review for NEO-6M GPS Module R2

  1. 5 out of 5

    barewires (verified owner) –

    This module works perfectly when hooked up to a Pl2303HX USB to COM/UART/TTL adaptor at 5 volts power and 3.3 volt transmit data to a Raspberry Pi.

    Plug in the USB adaptor and use dmesg | grep tty to see which port is in use.

    A satellite lock may require up to 5 to 10 minutes when the device is initially placed in a window and much less if it has a better view of the sky. Initial data should show valid time and date.

    dmesg will show:
    [11441.362375] usb 1-1.4: new full-speed USB device number 11 using dwc_otg
    [11441.464594] usb 1-1.4: New USB device found, idVendor=067b, idProduct=2303
    [11441.464611] usb 1-1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=0
    [11441.464618] usb 1-1.4: Product: USB-Serial Controller
    [11441.464624] usb 1-1.4: Manufacturer: Prolific Technology Inc.
    [11441.465544] pl2303 1-1.4:1.0: pl2303 converter detected
    [11441.469422] usb 1-1.4: pl2303 converter now attached to ttyUSB0

    screen /dev/ttyUSB0 9600 will show :
    $GPGLL,,,,,,V,N*64
    $GPRMC,,V,,,,,,,,,,N*53
    $GPVTG,,,,,,,,,N*30
    $GPGGA,,,,,,0,00,99.99,,,,,,*48
    $GPGSA,A,1,,,,,,,,,,,,,99.99,99.99,99.99*30
    $GPGSV,1,1,01,04,,,25*7B
    as the module is on a desk in a room with no view of the satellites.

    Valid data will appear faster with a better view of the sky.
    $GPRMC,171335.00,A,51xx.31165,N,00001.xx809,W,0.707,,171216,,,A*62
    $GPVTG,,T,,M,0.707,N,1.309,K,A*28
    $GPGGA,171335.00,51xx.31165,N,00001.xx809,W,1,04,7.23,63.4,M,45.5,M,,*7B
    $GPGSA,A,2,30,28,05,15,,,,,,,,,7.29,7.23,1.00*00
    $GPGSV,2,1,07,05,37,188,36,15,48,290,27,18,10,321,11,20,50,266,25*74
    $GPGSV,2,2,07,21,13,300,,28,52,098,39,30,38,064,24*46
    $GPGLL,51xx.31165,N,00001.xx809,W,171335.00,A,A*79

    Once the device has acquired a lock, further data will be available much faster as the internal lithium battery backup will store ephermeris data.
