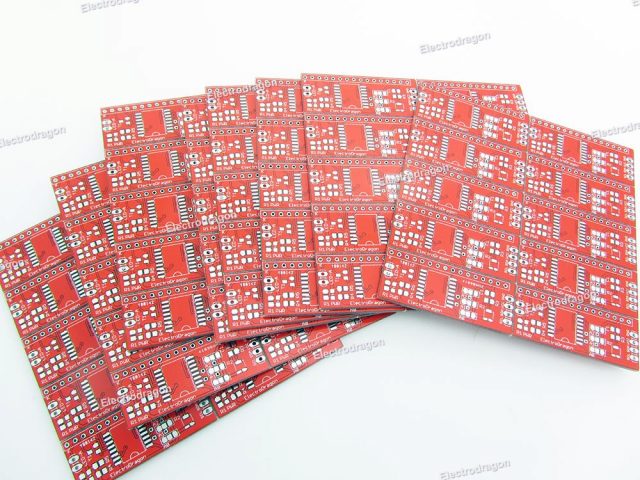

PCB Batch 02

PCB Batch Production Service [Oversize or Batch]

PCB Service Stencil, Frameless
5.00 out of 5
1 customer review|Add a review

$0.10

SKU: SPB1300 Category: Tag:

Please provide following information of your PCB:
– Max Length in CM * Max Width in CM – Sets: (quantity by integer of 10, one set for 10pcs) – Color
– Optionally Provide: – Board Thickness 1.6mm
– e.g. 15 CM x 15 CM x 1 sets x color green

Please calculate your board and enter the result of following:
= max length in CM * max width in CM
– e.g. 15 CM * 15 CM = 225

Please calcuate and enter the result of following:
= Max Length in CM * Max Width in CM * Sets
– e.g. 15 CM * 15 CM * 3 Sets = 675

Please always select Engineering Cost, this is a must have.

(max file size 5 MB)

Description

In two case you will need this PCB Batch instead of standard PCB service:

  • For Boards quantity more than 30 PCs (3 Sets), the price will be cheaper when you produce more.
  • Either maximum length or width of your board is over 10CM
    • for example, board size is 15*5CM, 15CM is over size for standard service, and need to be used by this option

Common PCB Features

  • Available color: green, red, blue, white, black, orange
  • Thickness default 1.6mm, and free to use from 0.8-1.6mm , please add note in the step 1
  • Default Lead time 5-7 days.

Calculation Fields:

  1. Enter the basic board information
  2. Enter the single board area in cm^2
    • Max Length in CM * Max Width in CM
  3. Enter the total board area in cm^2
    • Which is the single board area * Sets (1 set = 10pcs)
    • Max Length in CM * Max Width in CM * Sets
  4. Select any extra options you need

Note:

  • Please measure your board size by yourself, and put the correct quantity here.
    • For all irregular shape boards, use the maximum length instead
    • For example a full round board you need use diameter (length) multiply with diameter (width)
  • Quote for board area over 2 M^2

Detail cost can see on this list.

Additional information

Weight 0.0032 kg

1 review for PCB Batch Production Service [Oversize or Batch]

  1. 5 out of 5

    Steven (verified owner) –

    Electrodragon delivered well made production quality PCBs to us in Sydney Australia in one week. We placed the order online, paid for faster manufacture and delivery – and it just worked with no problems. Our job still only cost $90.42US ($121.69 AUD) delivered for 20 PCBs. 10/10!
