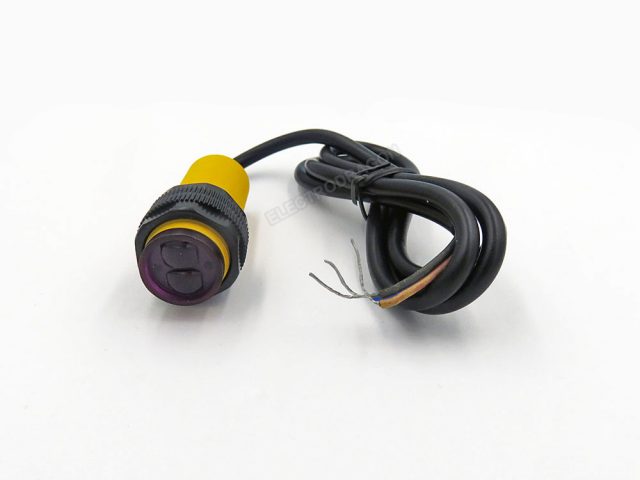

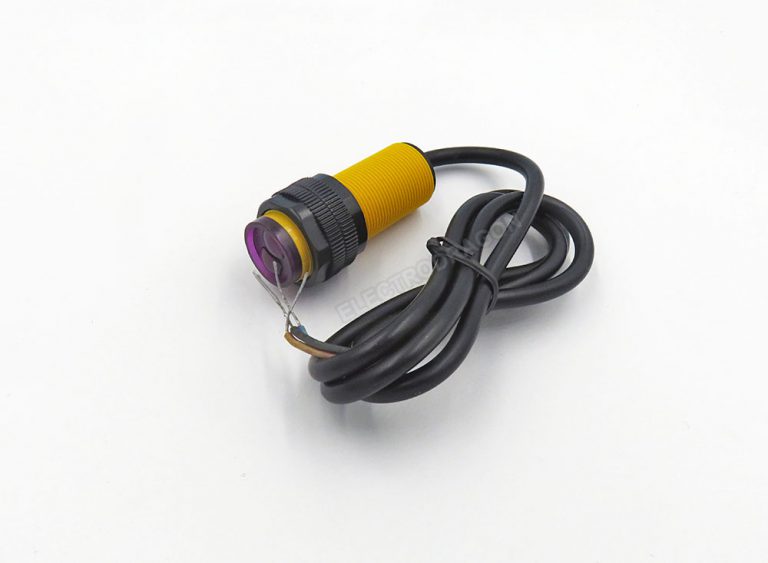

Photoelectric Reflective Sensor, Proximity, D18-E80NK

$3.70

SKU: SMO1092 Category: Tags: , ,

Description

  • This is a integration of emission and reception in one photoelectric sensor. Detection distance can be adjusted according to requirements.
  • long detecting range, low interference by visible light, cheap, easy to assemble, easy to use and so on
  • Widely used in robot obstacle avoidance, pipeline pieces and many other occasions.

Features:

  • 3 ~ 80CM detecting distance (notice a small pot on sensor back for tuning)
  • 2ms very fast response time
  • NPN common-ON switch signal

Other specification:

  • Brown line = Vin, blue line = ground, black line = signal
  • 5V DC power, 100mA current, consumption DC<25mA
  • Diameter: 17MM
  • Sensor length: 45MM
  • Lead length: 45CM
  • Pointing angle: ≤15 °
  • Detection of objects: opaque body
  • Working temperature: -25 ℃ ~ +55 ℃
  • Standard test objects: 10000LX below the following incandescent 3000LX
  • Housing material: plastic

Additional information

Weight 0.02 kg
