“STEP” FPGA Mini Development Board, MAX10

$29.20

Clear
SKU: N/A Tags: , ,

Description

Currently selling is Altera MAX10 – MAX10M08SCM153C8G (not always the same, please select on option)

  • 08SCM – 8K logic elements
  • SC : Single supply – compact features
  • M : Micro FineLine BGA (MBGA)
  • 153: MBGA Package Type 153 : 153 pins, 8 mm x 8 mm
  • C : Commercial (T = 0° C to 85° C)
  • 8: FPGA Fabric Speed Grade
  • G : RoHS6

Board Resources:

  • Maximum operating frequency 400M
  • 112 GPIOs
  • 4x channels switch
  • 4x channels buttons.
  • 8x channels user LED
  • 2x channels RGB_LED
  • 2x sement display.

Board Features:

  • The board integrates a downloader, a MicroUSB data cable can complete the development board power supply and download, is an essential tool for learning Altera FPGA development. Based on the backside PIC MCU.
  • DIP40 IC size and footprint design, easily can insert on to prototype breadboard.

For more information please see stepfpga.com site. Updating informaiton can find on our wiki page.

Boot up test demo can see here.

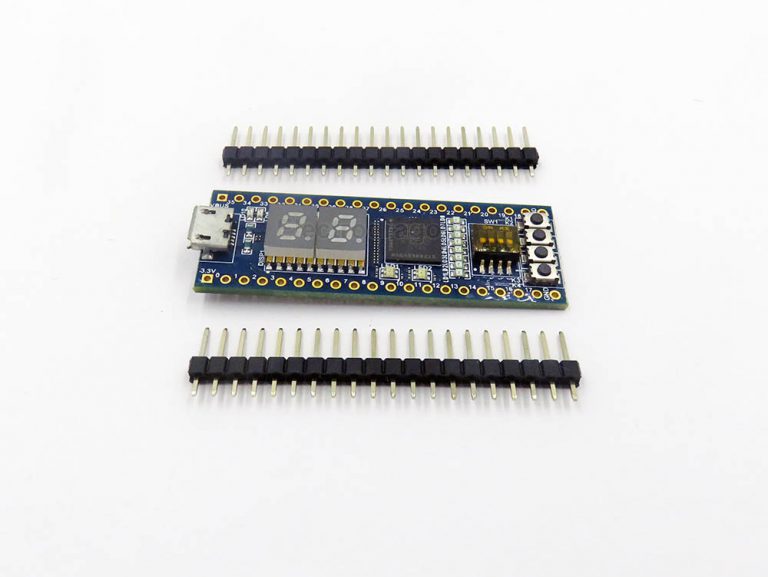

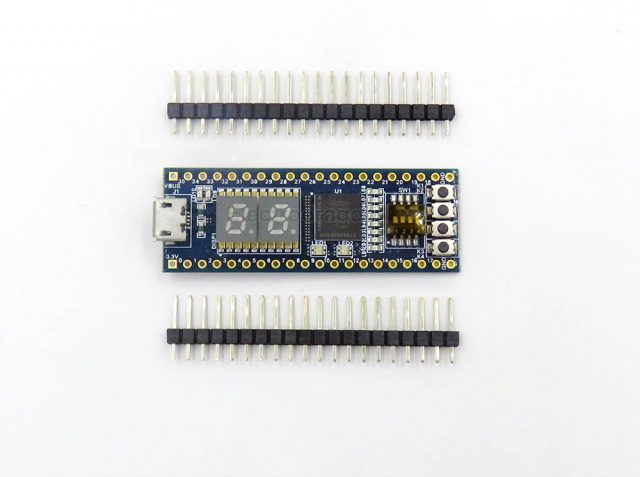

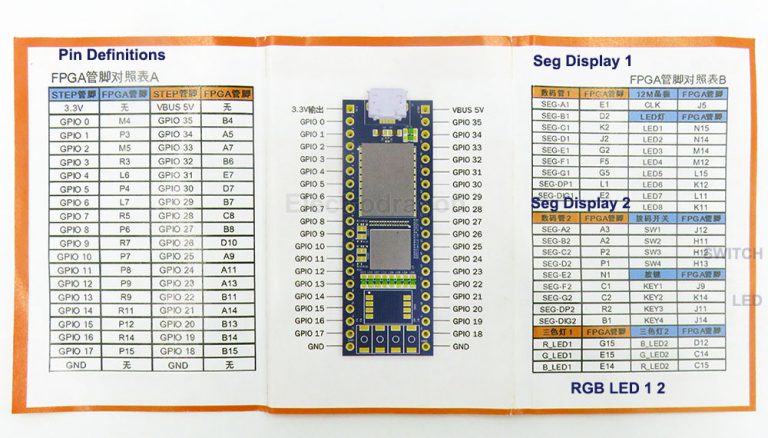

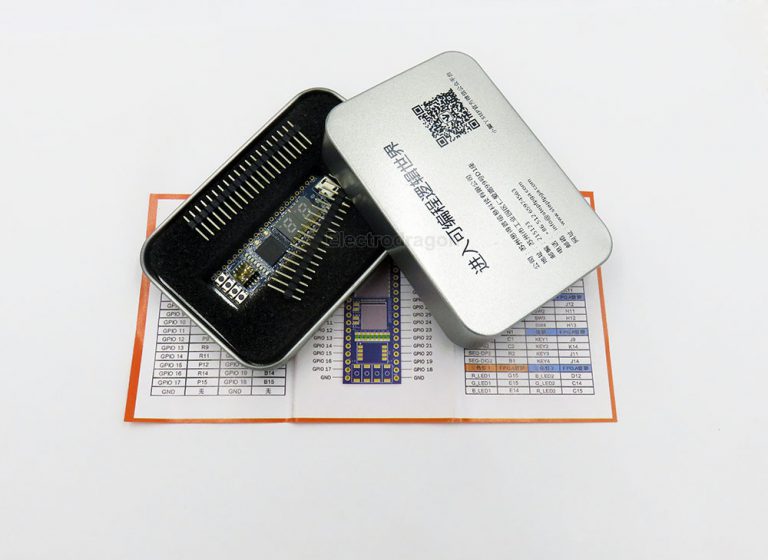

Shipment includes the main board, break away pin headers, metal enclsoure, and pin maps instruction paper.

Additional information

Weight N/A
FPGA

10M08SCM
