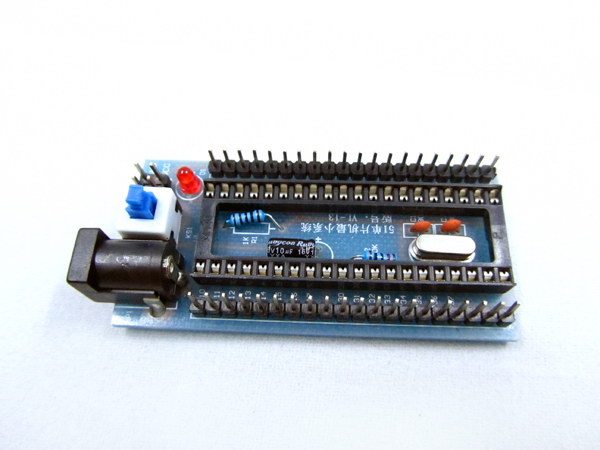

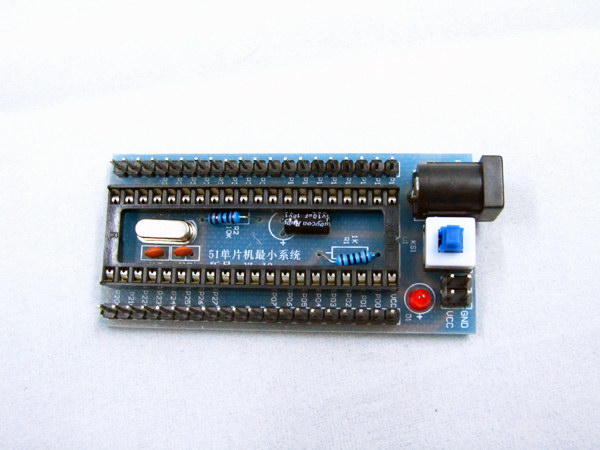

[Retired]8051/AVR MCU Min-Dev. Board R1
$1.80
- Description
- Additional information
- Reviews (1)
- Enquiry2
Description
Classical 8051 minimum development board, get rid off the soldering troubles
- Good PCB technology, reasonable layout, stable performance
- Standard ISP download port, for online programming.
- Built-in crystal oscillator(11.0592M ) circuit, reset circuit, power indicator
- All the pins of chips are brought out which are used to expand more functions.
- Support chips: STC89C52 STC12C5A60S2 STC11/10x series AT89S52, ATmega 16L, and all DIP-compatible AT89S chips
- One power switch for experiments
- DC-005 Jack (5.5*2.1)
- Two extra channels of external power (VCC and GND)
- Components are located inside in order to minimal the size
Documentation:
Additional information
| Weight | 0.015 kg |
|---|
![[retired]2PCs Banana to Banana Cables (A Pair in Black&Red)](https://www.electrodragon.com/wp-content/uploads/2011/12/00507-02-L-400x400.jpg)
![[Retired]8G Kingston microSD Card SDHC Class-4](https://www.electrodragon.com/wp-content/uploads/2011/12/MicroSd-Card-02-560x560.jpg)
![[Retired]8051 Extended Dev. Board R3](https://www.electrodragon.com/wp-content/uploads/2012/01/8051-minimal-system-v3-1-400x400.jpg)
![[Retired]*SIM908 Full-Function Development Board GSM GPS](https://www.electrodragon.com/wp-content/uploads/2011/12/sim9081-400x400.jpg)
![[Retired] VS1053 MP3 Decoding Module V2](https://www.electrodragon.com/wp-content/uploads/2012/01/vs10531-400x400.jpg)
![[Retired]USBtinyISP Programmer](https://www.electrodragon.com/wp-content/uploads/2011/12/USBtinyISP-Programmer-2-560x560.jpg)
![[Retired] ITDB02 3.2" TFT LCD Board (240*320, w/SD Slot, Touch Panel)](https://www.electrodragon.com/wp-content/uploads/2011/12/IDTB-3.2-Display-1-400x400.jpg)
![[Retired] Serial Cable DB9 M/F](https://www.electrodragon.com/wp-content/uploads/2011/12/T13R1dXjtnXXcbH1PX_115045.jpg)
![[Retired] Audio Cable 3.5mm Extension](https://www.electrodragon.com/wp-content/uploads/2011/12/T1z2NYXf4xXXam8vZ0_034945.jpg_310x310.jpg)
![[Retired]NRF905 Transceiver 433MHz-Wireless Module](https://www.electrodragon.com/wp-content/uploads/2011/11/Nrf905-spring-coil-400x400.jpg)
alirahman9316 (verified owner) –
This development is NOT ATMega16L pin compatible. While the schematic is accurate, the product description is misleading. Wasted money by purchasing it after just reading the description.
