50PCs JST XH2.54 Pair PCB Jack + Cable Housing [Type]

Description

• The item list include common DIP XH2.54 connectors, both male and female version.
• Eech purchse if for either female or male part.

• Please notice in our setup:

  • female is the connector with metal pin inside, normally place on board

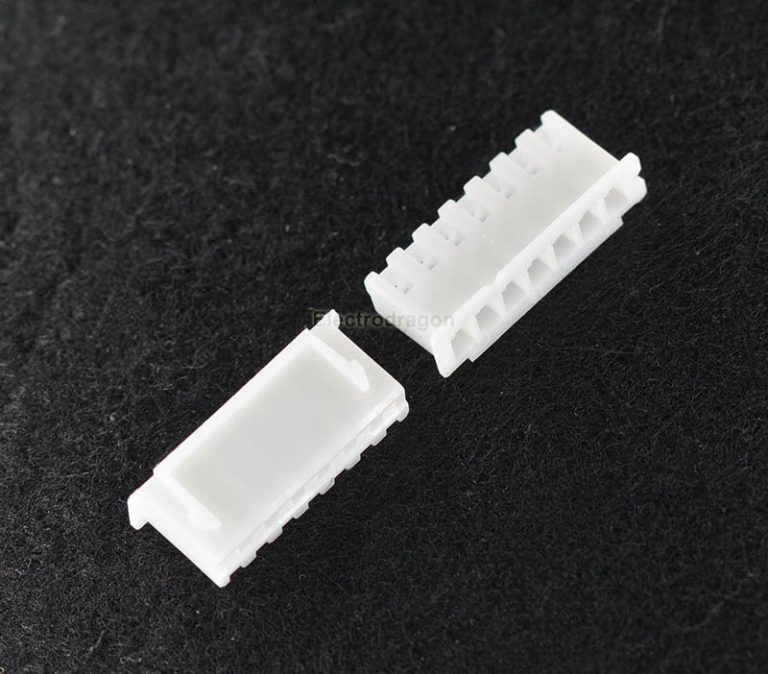

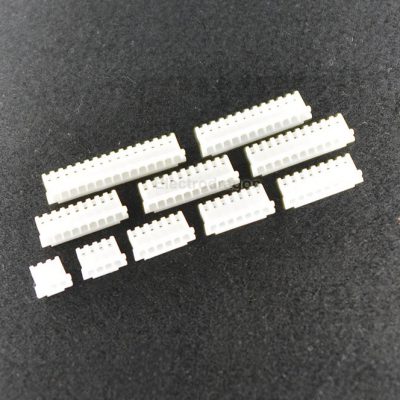

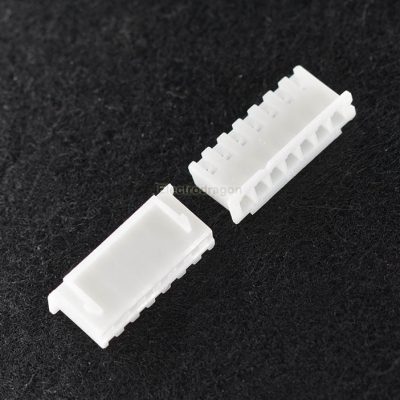

  • male connector is plastic house only, and to plug on cable.
  • “Straight” means the 180 degree no-bend pins
  • “Side” means 90 degree bended pins

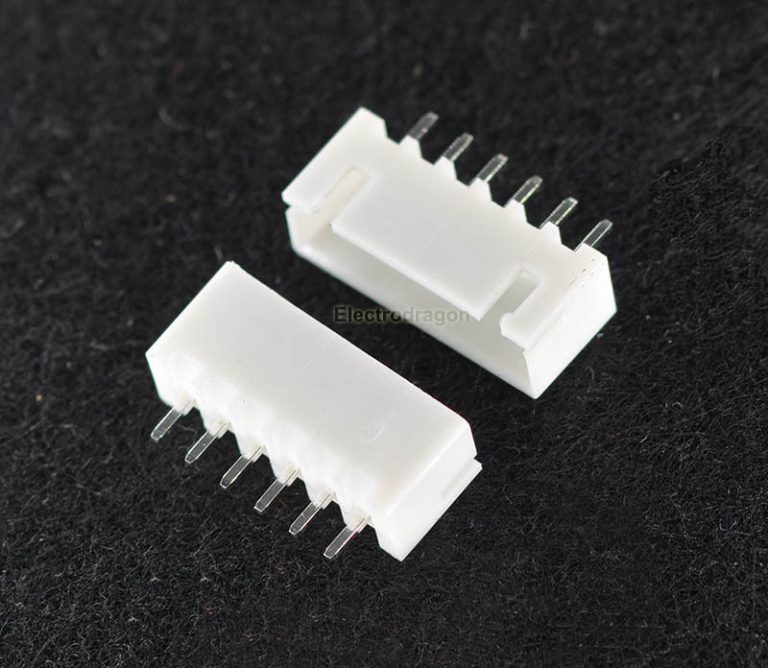

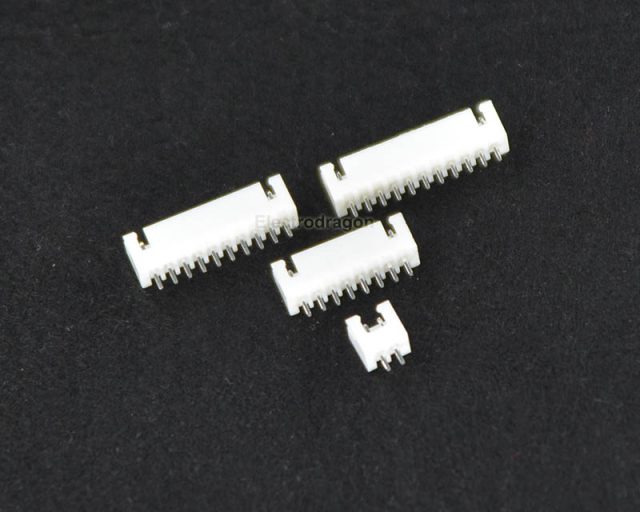

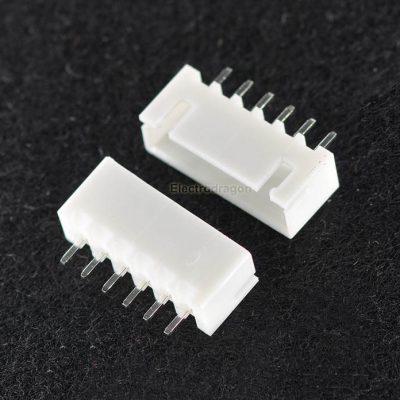

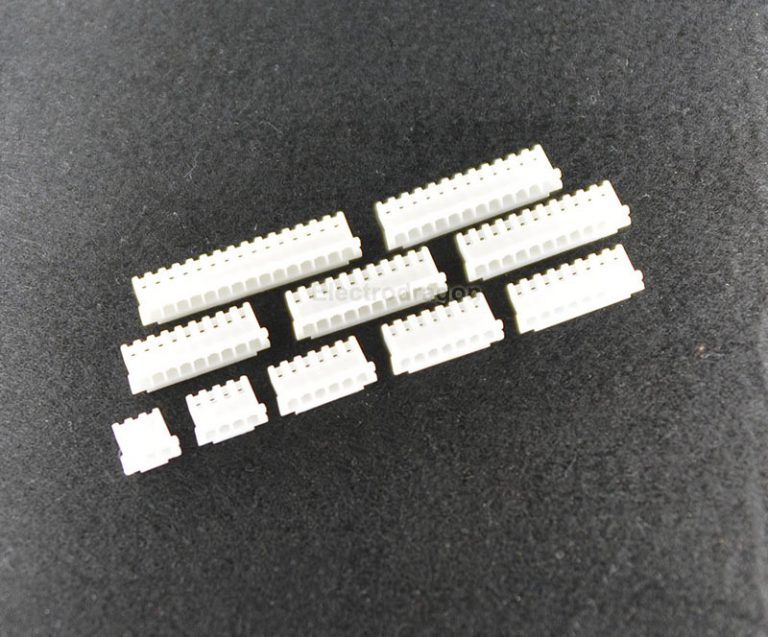

JST XH2.54 type of connectors.

• 2P DIP-Straight Male/Female
• 3P DIP-Straight Male/Female
• 4P DIP-Straight Male/Female
• 6P DIP-Straight Male/Female

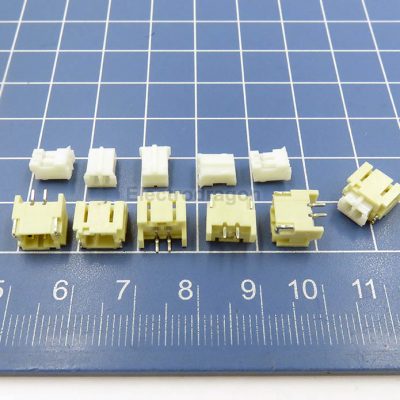

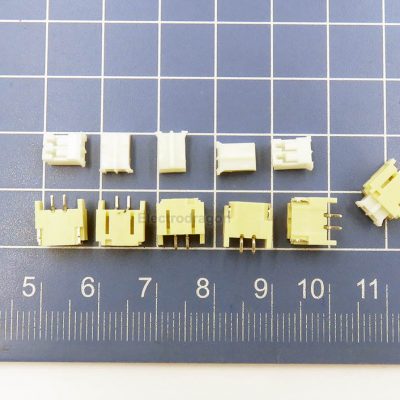

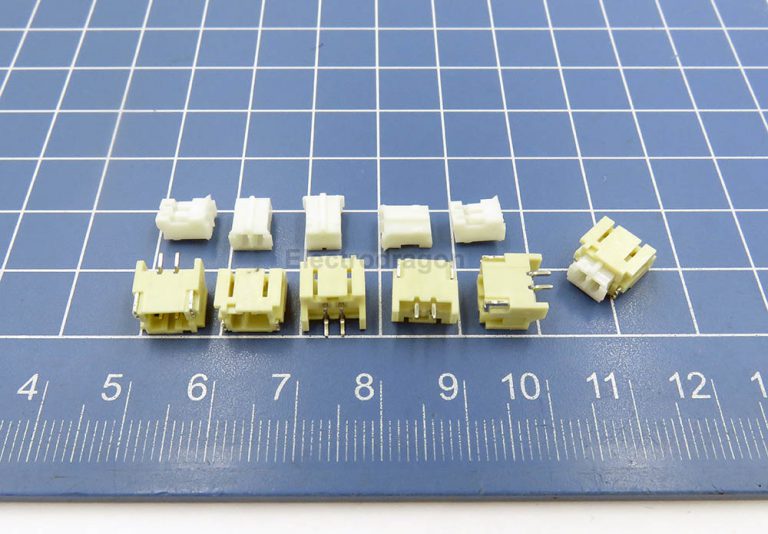

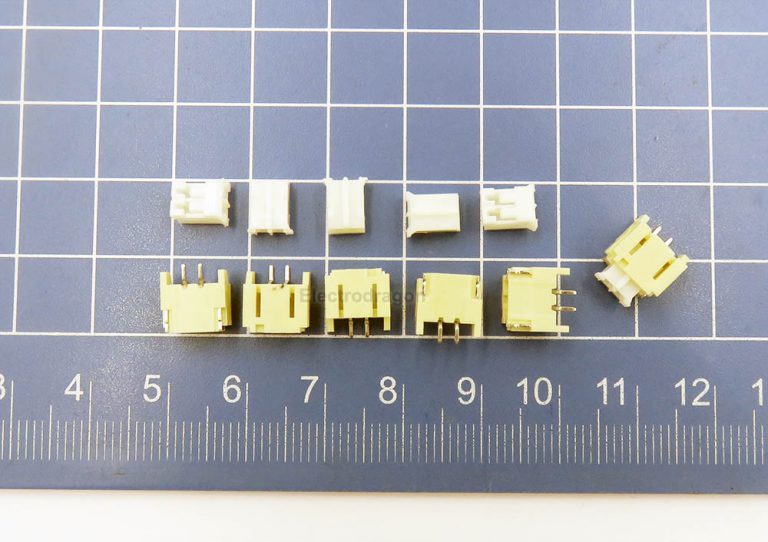

JST PH2.0 type of connectors.

• 2P SMD-Side Female, 2P DIP-Straight Male

Relevant Products:

• 50PCs JST Connectors Housing Plug [Type]
• Plugin cable is available here.
• Pre-build connector cable here.
• You can find the XH2.54 male crimp pin header here.
• Self build clamping tool here.
