Cable Connector Clamping Tool [Terminal-Type]

* UNI-T UT118B Pen Type Autorange Digital Multimeter EF Function AC/DC Voltage
4.67 out of 5
4 customer reviews|Add a review

$17.20 – $21.40

SKU: N/A Category: Tags: , , ,
Clear

Description

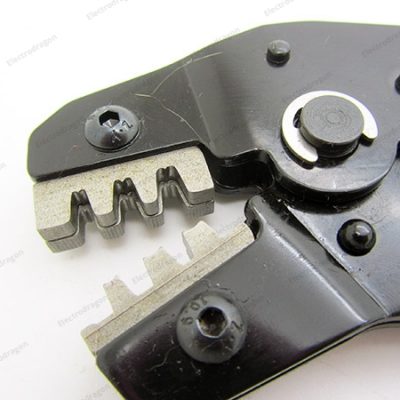

  • Ratchet Crimping Pliers components using special steel is made.
  • In line with the structural design of the ergonomic terminal crimping, effort by 50%.
  • The precision pressure line module and complete locking (self locking and releasing mechanic unit) ensure that in the the repeated pressure line to maintain a higher standard of quality pressure line.
  • Factory prior Accurate adjustment has been.
  • Ensure good crimping effect set the best grip position, as well as light and compact structure and ergonomic handle shape design

Models we have:

  • SN-01BM, This section Crimping Pliers can pressure between 2.5 and 2.54 pitch (0.08 – 0.5 mm^2) terminal including of
    • Common used: XH 2.54, SM 2.54
    • HA XHB / EH / SCN / 5264 / 250 / LGC / CH2.5 / EI / Primary Four P S11 / HR / YH025 / 35155 / 5102 / 5240 / SMH250/SMP250 / 2048HS / 25045HP / TJC8 / TJC8A / 5051/2510 / CH10 / 25415
    • In addition, the tool is sometimes pressure 43645,43020 / 43025 (3.0MM pitch) terminals are a good choice. Provided that the line is not pressure crude pressure.

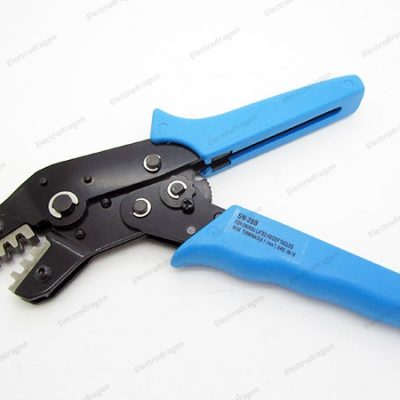

  • SN-28B: This section Crimping Pliers can pressure 2.5-4.8 spacing (0.1 – 1.0 mm^2), Inlcuding:
    • Common used : 3.2/3.96/4.8, KF2510, DuPont 2.54，
    • 90331 / 43645 / 43020 / 5500 / VH 35156 / 5195 / 5196 / 39612 / FL / 5557 / 42474 / SL / OTP / FL / YL / small EL / QH / NV
    • Some automotive connection the terminals also can be crimped.

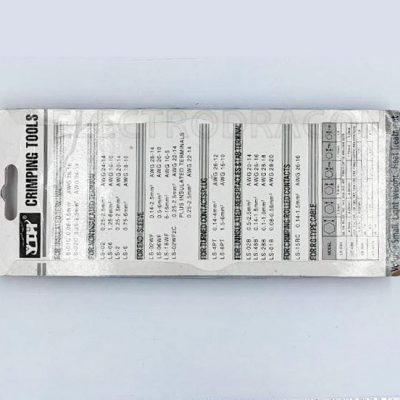

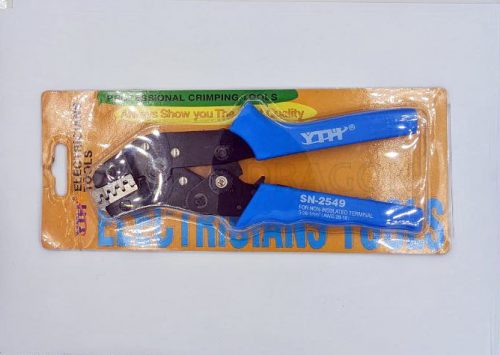

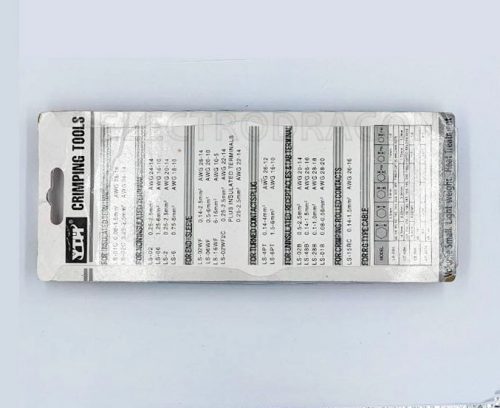

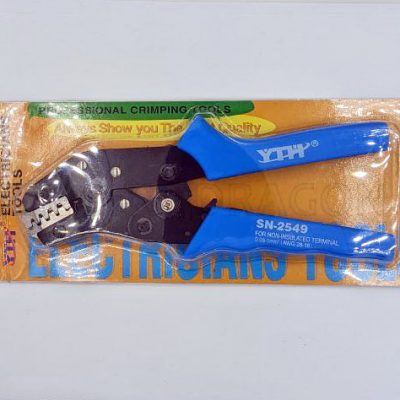

  • SN-2549:
    • Common-used types combination of SN-01B + SN-02B + SN-28B
    • PH2.0 PHD2.0 XH2.54 dupont2.54 MX3.0 2510 VH3.96 CH3.96 .. refer to documentation
    • Price slightly more expensive

Documentation see here.

Relevant Products:

Additional information

Weight N/A
Model Names

, ,

4 reviews for Cable Connector Clamping Tool [Terminal-Type]

  1. 5 out of 5

    jeroenvp (verified owner) –

    Great Clamping Tool, used it for multiple connector types and can be used for more than the described types.

  2. 4 out of 5

    errol (verified owner) –

    Great crimping tool. Great quality. It does not work too good for DuPont connectors though as it does not chimp the wire grip narrow enough. This means that you must do a partial re-crimp of the wire grip using the narrower part of the jaws…

  3. jcding (verified owner) –

    Good and cheap crimping tool. Much cheaper compares to original JST crimping tool.

  4. 5 out of 5

    laplaciano_1 (verified owner) –

    Too impressed with te quality and handle. I recommend it.
