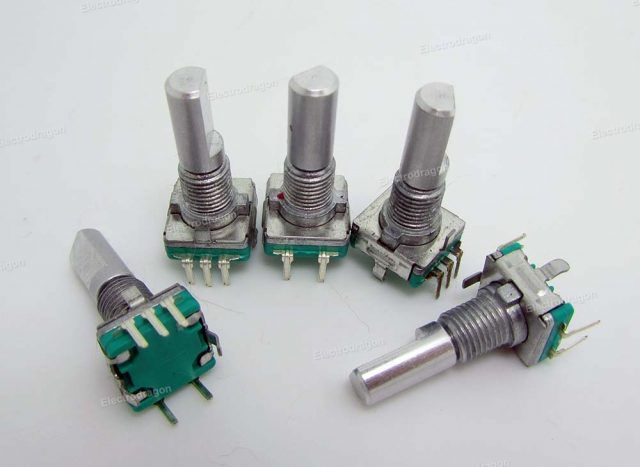

5PCs Rotary Encoder


SKU: SCU1007 Category: Tags: ,

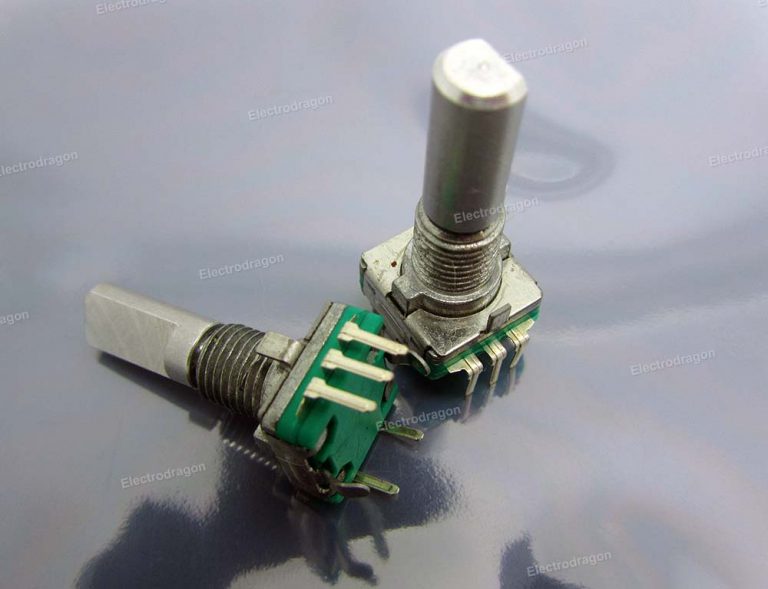

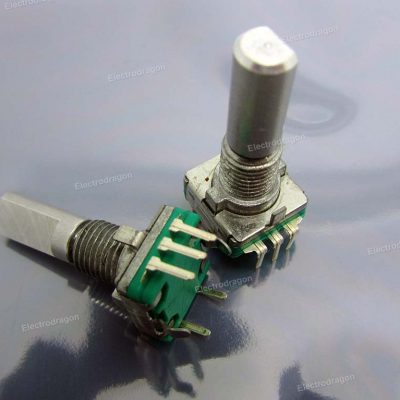

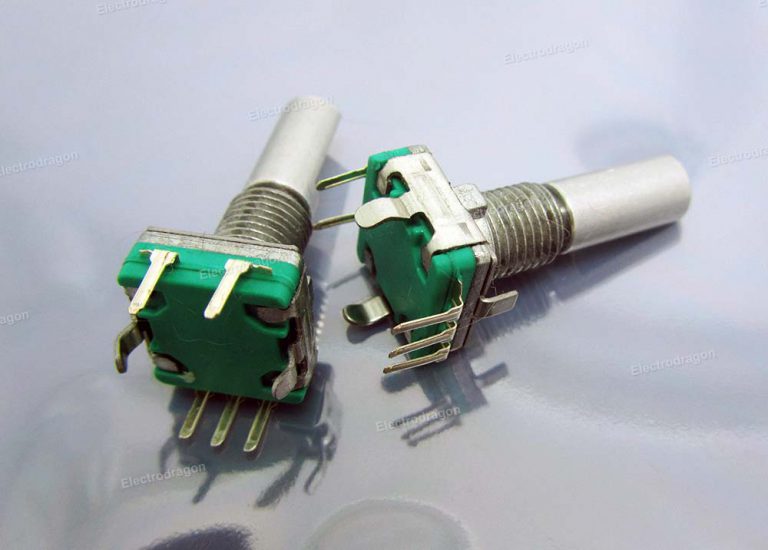

This is a 20-step rotary encoder with a nice ‘clicking’ feel.

It’s breadboard friendly, and has a pretty handy select switch (by pushing in on the knob). The encoder is different from a potentiometer in that an encoder has full rotation without limits. The unit outputs gray code so that you can tell how much and in which direction the encoder has been turned.

  • This item is also used on the Smart controller LCD kit of Ramps both two type this 2004 version and full graphic this.
  • The shaft length is 20mm, a little bit long than normal one.
  • This unit does not include a cap for the shaft.

Documentation please see here.

Additional information

Weight 0.04 kg

4 reviews for 5PCs Rotary Encoder

  1. 4 out of 5

    conradj (verified owner)

    Works perfectly, but need a breakout board. Pins to soft does not go easily into a breadboard.

  2. 5 out of 5

    remymorra (verified owner)


  3. 5 out of 5

    snoonan (verified owner)

    Great. No skips and good feel. Fits standard D knobs.

  4. 5 out of 5

    vestale (verified owner)

    No problem, very good.
