Mechanical Endstop Limited Switch [Ver]
$1.00
- Description
- Additional information
- Reviews (1)
- Enquiry2
Description

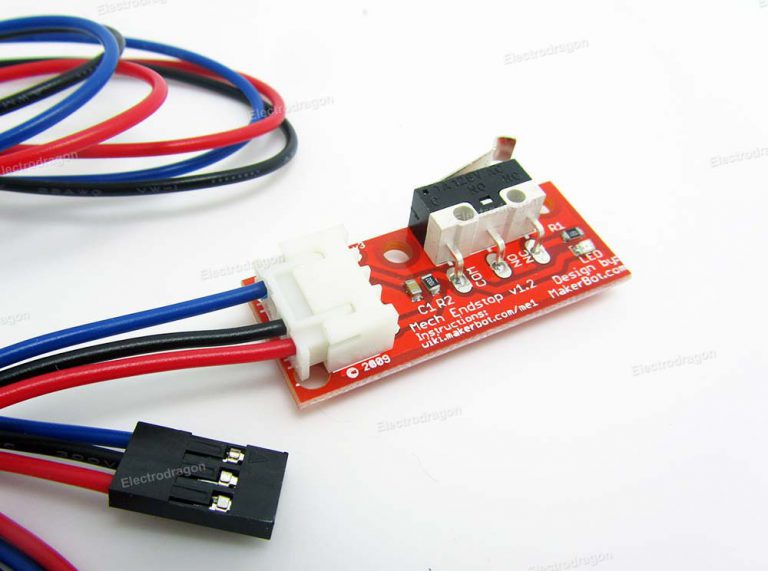

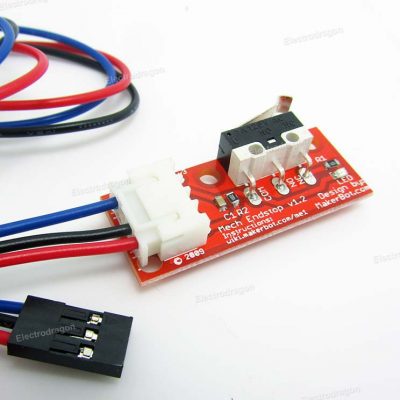

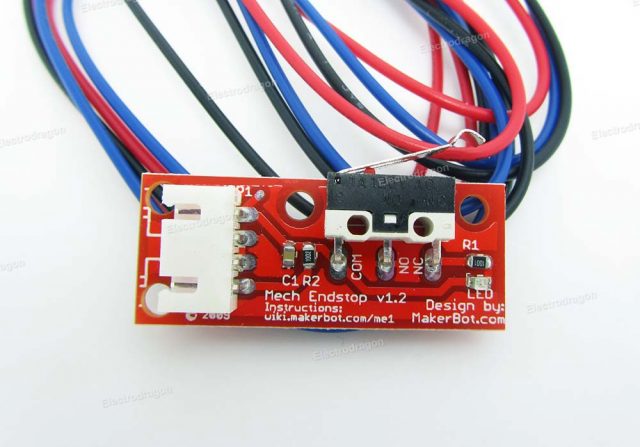

The mechanical endstop uses a lever switch to detect when it is activated. The switch is wired up so that when activated, it pulls the signal to HIGH.
- There is also an LED on the board that will light up when the switch is activated.
- 22AWG cable, durable for 2A current, 300V volt and 80 degree. 70CM length.
- Each item pack alone.
- Same as official version, more information can be found on this page.
- Red and black are power lines, green or blue line is the signal cable.

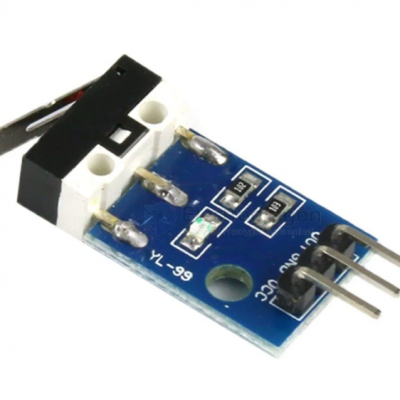

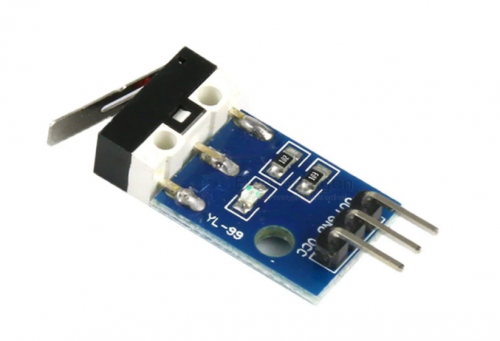

V1 board == Red, V2 board == Blue
Additional information
| Weight | N/A |
|---|---|
| Versions | V1, V2 |
