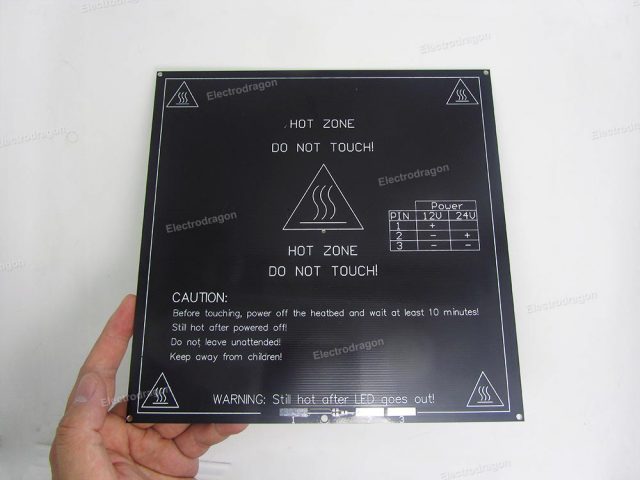

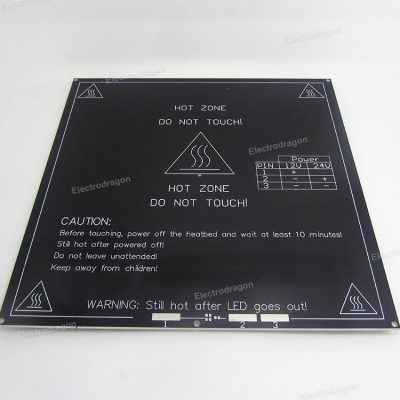

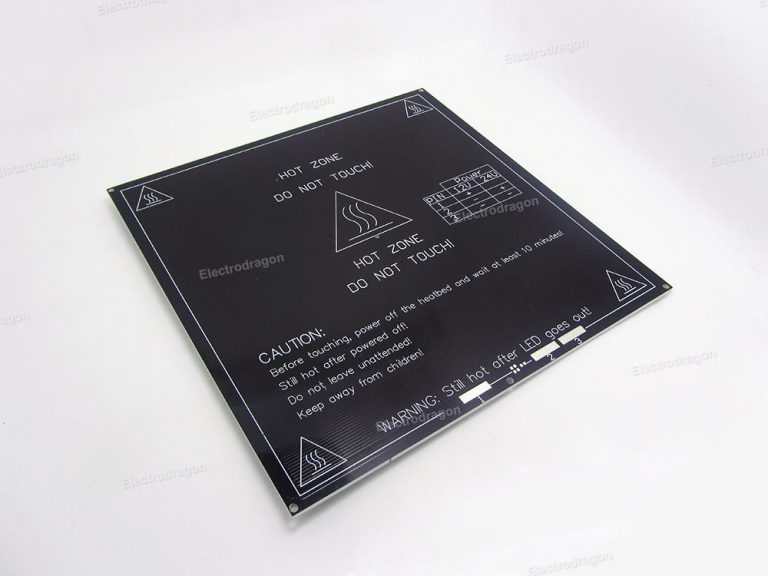

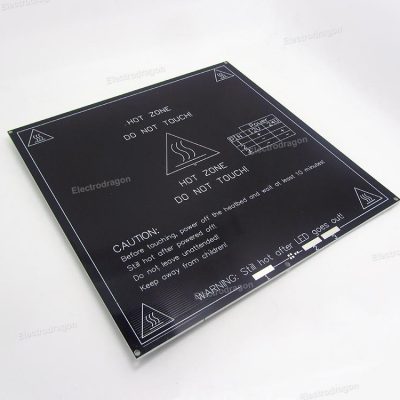

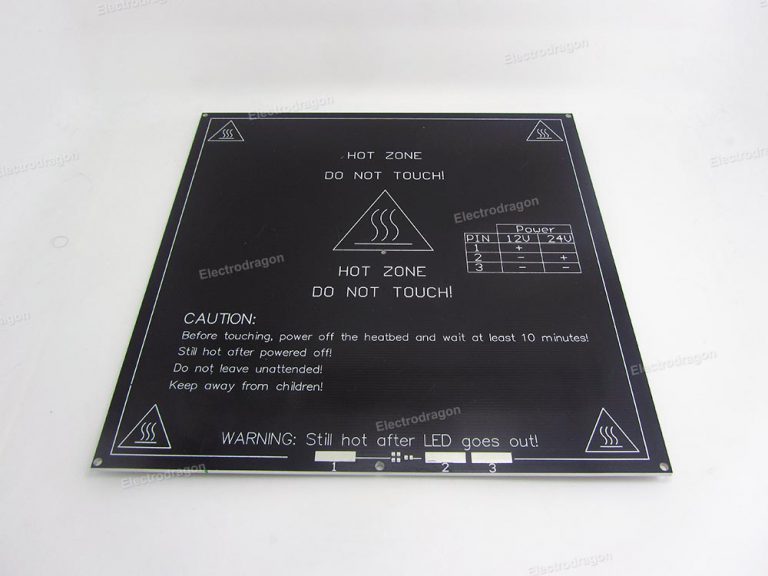

3D Printer MK3 Aluminium Base Heatbed (Reprap Standard 3mm)


SKU: P3DS001 Category: Tags: ,


  • Weight 0.385 KG.
  • Fully compatible with official reprap heat bed design.
  • MK3 can choose either 12V or 24, more easy to use.
    • For 12V, one wire to 1, and another two wires to 2 and 3
    • For 24V, one wire to 2, and another one wire to 3, NC for 1
  • Materials: Aluminium base board
  • Size: 214X214mm
  • Thickness 3mm
  • Color black
  • 1 layer 35μm (1oz base) copper
  • Resistance between 1.4 and 1.6 ohm for the 12V
  • Resistance between 5.0 and 5.4 ohm for the 24V
  • 100 degree Celsius possible for both 12V and 24V
  • With 15V on the 12V terminals will maintain approx. 115 degree Celsius without regulation
  • Running 24V on the 12V terminals will heatup the heatbed to 100 degree in only 2 minutes (Your printer controller will regulate the power to the heatbed in order to get your preset temperature.)
  • 180 degree Celsius max. temperature
  • 3 mm diameter installation holes on four corner, hole center to edge distance are both 2.5 mm.

Additional information

Weight 0.45 kg
