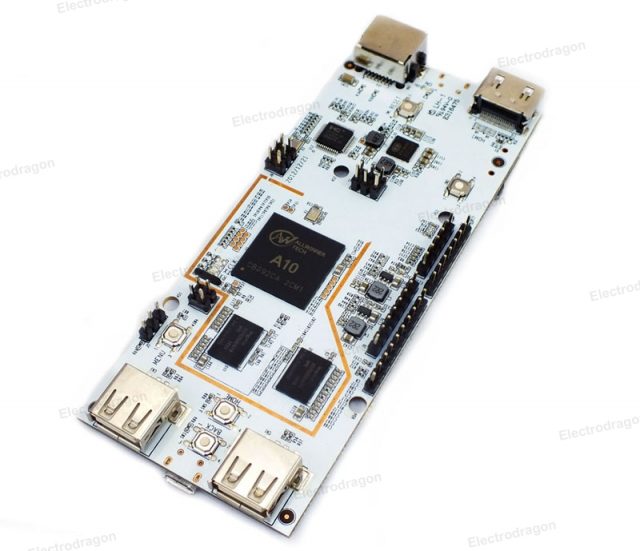

[Retired] Pcduino: 1GHz-ARM A8 CPU, 1GB-DRAM, 2GB-Flash, Better Than Raspberry Pi

[Retired] Pcduino: 1GHz-ARM A8 CPU, 1GB-DRAM, 2GB-Flash, Better Than Raspberry Pi

$57.50

Availability: Out of stock SKU: 7000037 Category:

Description

pcDuino is an mini PC platform that runs PC like OS such as Ubuntu and Android ICS. It outputsscreen to HDMI. Moreover, it has hardware headers interface compatible with Arduino.

As the field of embedded electronics gets more advanced, hobbyists and professionals are both in need of smaller and more powerful computers. We’ve been looking for awhile and now we’ve found one that we really like, not only because it’s small and fast but because it’s also Arduino shield compatible! The pcDuino is a high performance, cost effective mini PC platform that runs full-featured operating systems such as Ubuntu and Android ICS.

It’s easy to hook up, just connect 5V power and a keyboard and mouse. The pcDuino outputs video to any HDMI enabled TV or monitor via the built in HDMI interface. It was specifically designed to make it easy for the open source community to develop computationally demanding projects using the vast, existing catalog of Arduino Shields.

An API has been developed for the pcDuino that allows the user to access all of the functions that you would expect using simple Arduino-style language.

Note:

  • The pcDuino has trouble connecting to certain DVI monitors. There is a fix available on the pcDuino wiki page. Check the documents below!
  •  This is the original Board from sparkfun.

Features:

  • Dimensions: 125mm X 52mm
  • 1GHz ARM Cortex A8 CPU
  • GPU: OpenGL ES2.0, OpenVG 1.1 Mali 400 core
  • 1GB DRAM
  • Onboard Storage: 2GB Flash, microSD card (TF) slot for up to 32GB
  • Arduino-Style Peripheral Headers (Adapter Needed for Shield Form-Factor)
  • HDMI Video Output
  • Linux3.0 + Ubuntu12.10 Supported
  • 0.1″ Spaced GPIO Headers
  • RJ45 Ethernet Connection
  • Power Requirements: 2A @ 5VDC
  • API to access the following interfaces:
    • UART
    • ADC
    • PWM
    • GPIO
    • I2C
  • Program in C, C++ with GNU tool chain
  • Program in Java with standard Android SDK

Packaging NOT Including:

  • WiFi Dongle for pcDuino
  • pcDuino 5V/2A Power
  • HDMI cable

You may need to prepare the necessary accessories before you get the product and start to use, see the accessories list below in the documentation section.

What pcDuino can Do?

  • With pcDuino, user could do lots of fun stuff including but not limited to the follows:
  • Learn or teach to program
  • Interface with hardware
  • Use Internet browser or Office from Ubuntu
  • Learn Ubuntu linux
  • Play movie
  • Play game
  • DIY projects

Software Specifications:

Items Description
OS
  • Ubuntu
  • Android ICS 4.0
Language
    English
API
  • All the arduino shield pins are accessible with the provided API
  • It consists of API to access the following interfaces:
    • UART
    • ADC
    • PWM
    • GPIO
    • I2C
Programming language support
  • C, C++ with GNU tool chain
  • Java with standard Android SDK

Documentation:

Additional information

Weight 0.1 kg
