- Layout same as mini breadboard, and also same connection in the veritcal pin line.
- Two installation screw holes
- Four of these PCBs panelized into one, each purchase if for one penzlied board (4pcs.).

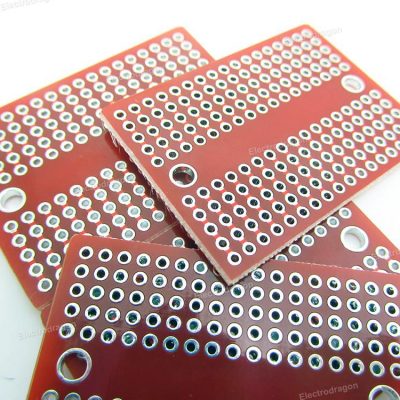

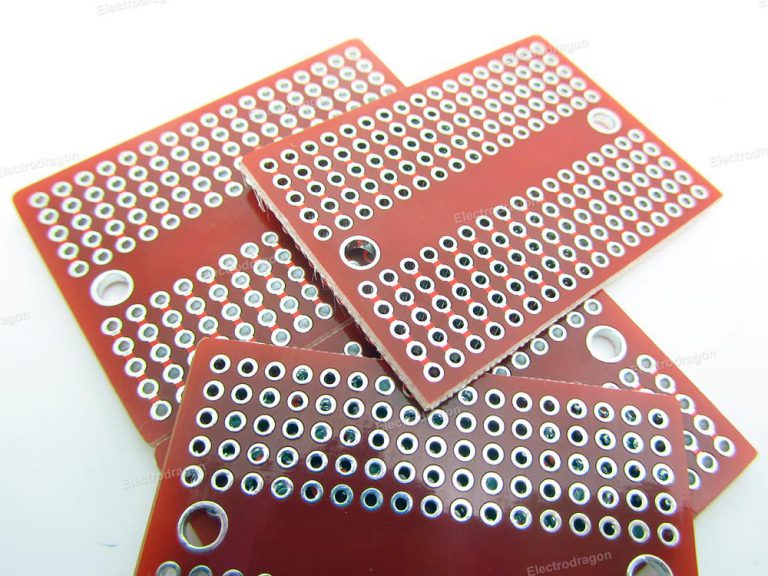

- You can send the edge a little bit if you mind it (see this little issue on the pictures).
- Double side.
- Pin pitch 2.54 mm, dimension please refer to the attached image.
- Installation hole drill M3, pad is M4.
