2PCs PCB Build-in Antenna [Type]

Rated 4.00 out of 5 based on 1 customer rating
(1 customer review)

$1.20$2.90

Clear
SKU: N/A Category: Tags: ,

Description

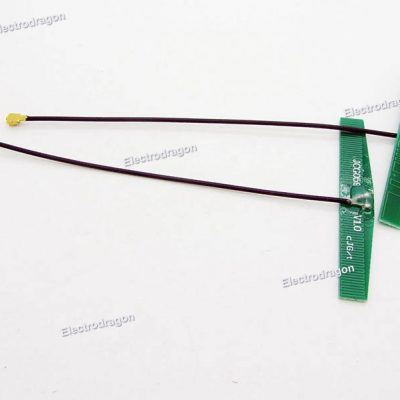

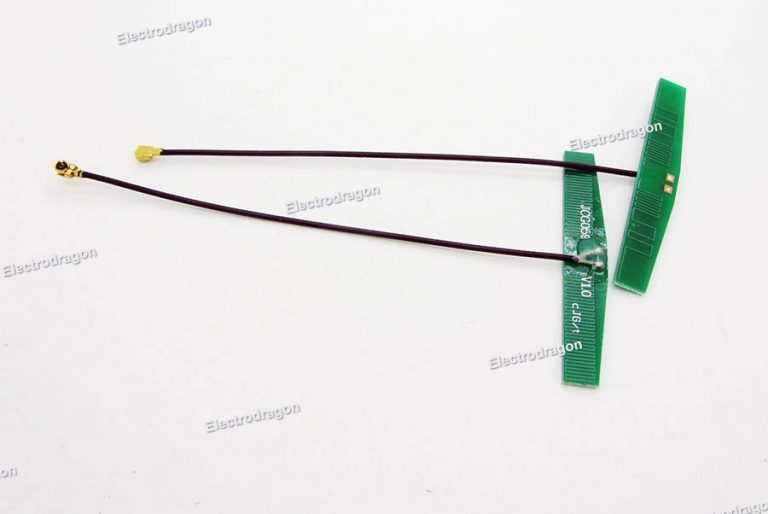

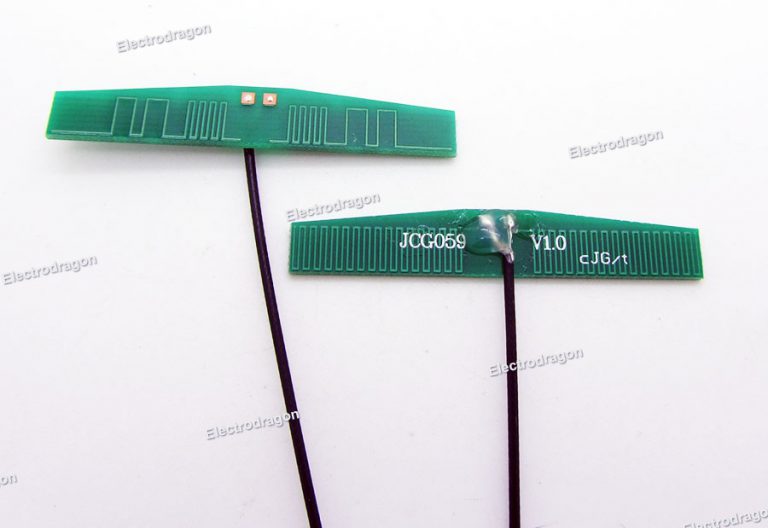

1150 “T-shapce” GSM/GPRS PCB Antenna

  • Frequency: 824~960/1710~1990MHz GSM/GPRS
  • Polarization: Linear
  • VSWR: <3.0
  • Gain: 2dBi
  • Impedance: 50Ω
  • PCB Dimension: 47*7.6*1.2mm
  • Cable: RF1.13/RF1.37
  • Connection: IPEX
  • Mounting Method: Adhesive
  • Standard PCB quality: FR4, 1.6mm, etc.

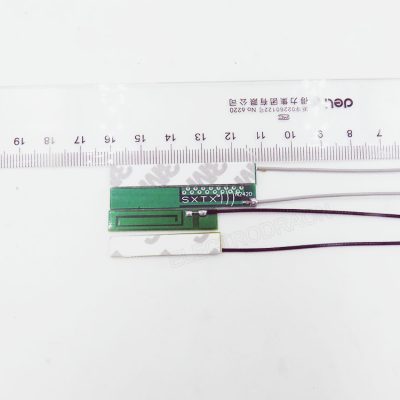

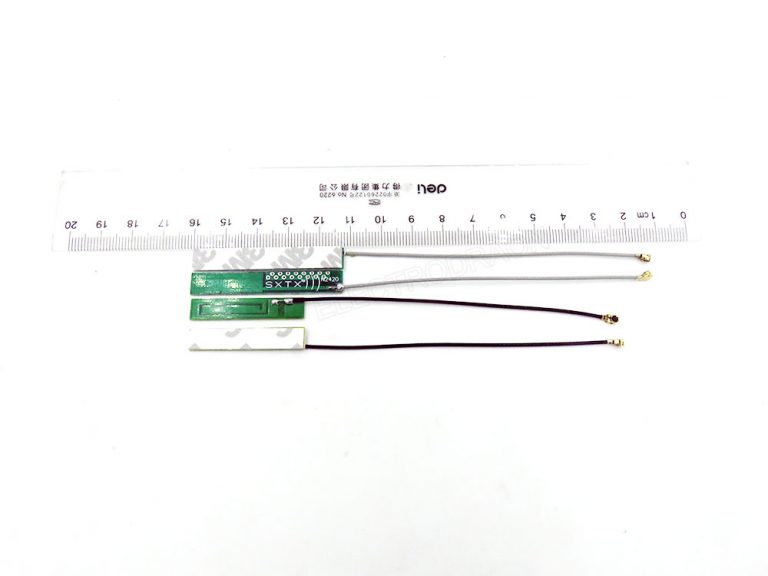

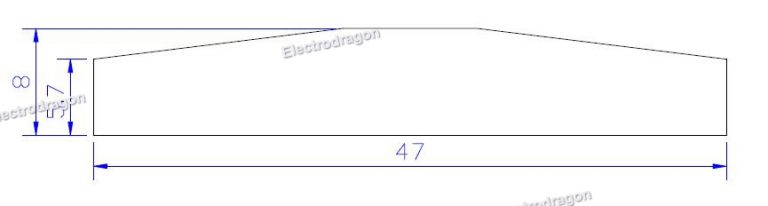

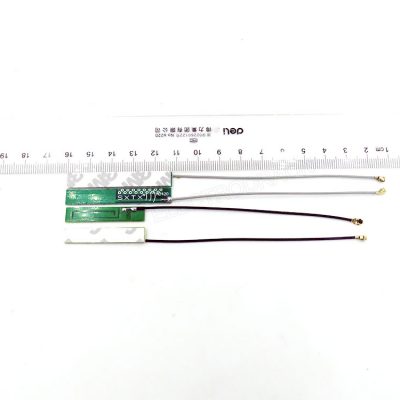

  • Cable length is 10CM, see the PCB dimension in attached pictures.

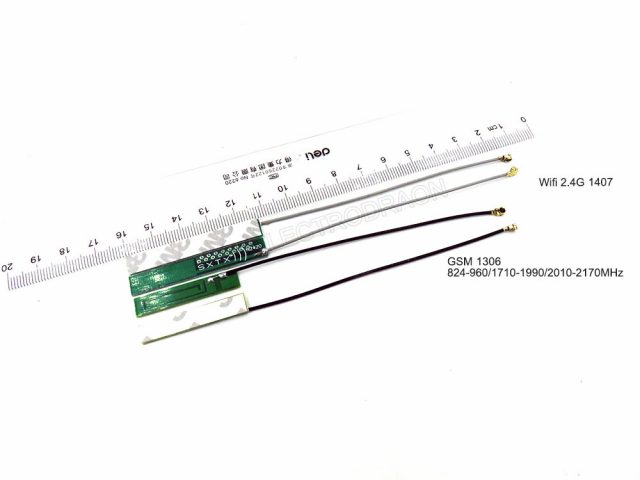

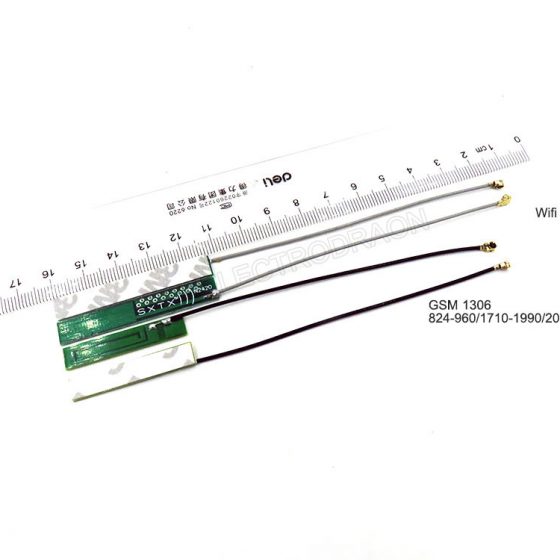

1306 GSM/GPRS PCB Antenna:

  • Frequency 824-960/1710-1990/2010-2170MHz
  • S.W.R. <= 2.0
  • Antenna Gain 3.0
  • Impedance 50 Ohm
  • Cable Type O.D. 1.13 mm
  • Operation Temperature – 40 °C ~ + 65 °C
  • PCB Antenna:35.00MM*5.70MM*0.70MM
  • Cable length100MM, total length 13CM
  • Interface form: one end of the IPX terminal (button), the other end of the circuit board for direct welding, in order to prevail
  • Back side tape, directly tape it to fix.

1407 2.4G PCB Antenna

  • Frequency 2371 -2483 MHz
  • S.W.R. <= 2.0
  • Antenna Gain 3.0 /4.0
  • Impedance 50 Ohm
  • Cable Type O.D. 1.13 mm
  • Operation Temperature – 40 °C ~ + 65 °C
  • Storage Temperature – 40 °C ~ + 80 °C
  • PCB Dimension:48MM*7.5MM*1.0MM
  • Cable Dimension: 100MM Total length 14.5CM
  • This product is mainly used for notebook built-in, Bluetooth, wireless modules, and other series for the frequency of related products.
  • Back side tape, directly tape it to fix.

Additional information

Weight N/A
Attributes-2

, ,
