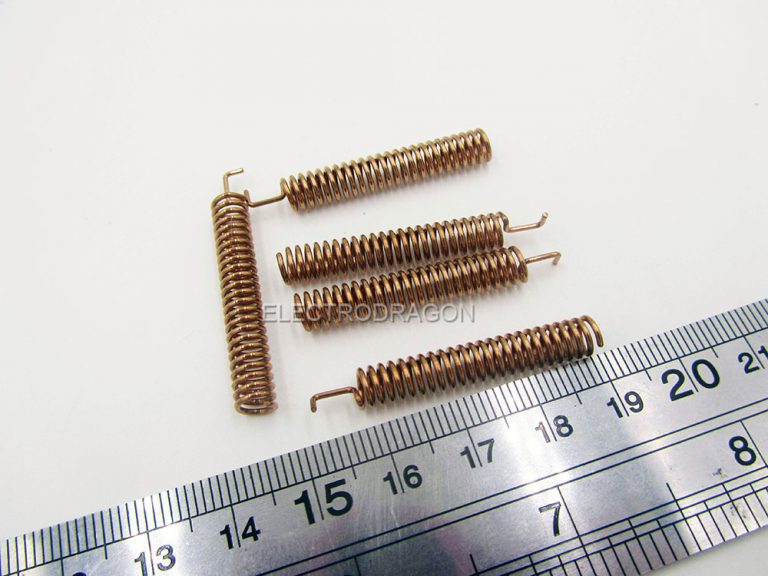

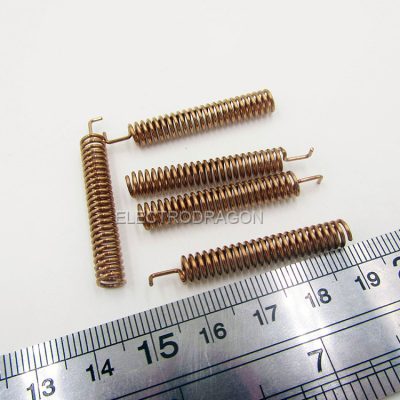

5PCs Spring Coil Antenna [433 Mhz]
$1.40
- Description
- Additional information
- Reviews (0)
- Enquiry2
Description
Spring coil antenna, 433mhz available, direct solder on the antenna pin.
- Frequency Rang （MHz）433±5.0
- V.S.W.R ≤2.5
- Center frequency: 433mhz
- Gain 2.0±0.5
- Impedance （Ω） 50Ω Normalizer
- MAX Power（W） 5W Max
- Polarization Vertical
- Main Structure Specifications
- Diameter of coil（mm）：5.5
- Wire diameter（mm）：0.8
- Connector Type：direct solder
- Color：Phosphor copper
- Total length: 32MM
Eech purchase is for 5pcs.
Additional information
| Weight | 0.01 kg |
|---|---|
| Antenna Type | Soldering Pins |
