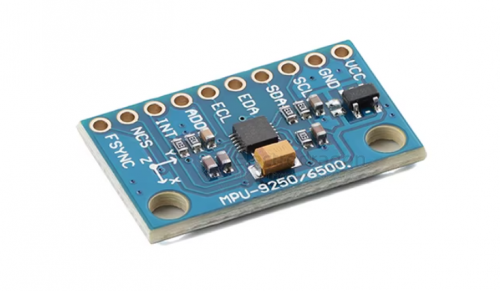

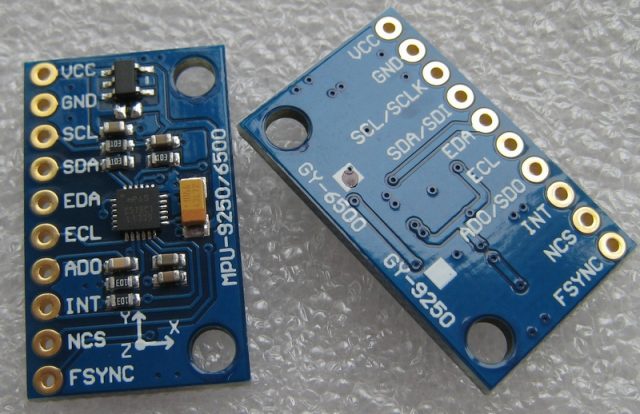

6DOF MPU-6500 Breakout, 3D Accelero + Gyro
$3.10
- Description
- Additional information
- Reviews (0)
- Enquiry2
Description
- This module contains 16-bit ADC output of 3D Accelerometer + Gyroscope
- Model: EY-6500
- Chip: MPU6500
- Power voltage: 3 – 5V
- Communication mode: I2C / SPI
- Gyro range: + / -250, + / -500, + / -1000, + / -2000dps
- Accelerator range: + / -2G, + / -4G, + / -8G, + / -16G
- Register: 1MHz
- SPI / I2C: 400KHz
- Gyro working current: 3.2mA
- Gyro sleeping current: 8uA
- Accelerator working current: 450uA
- Accelerator sleeping current: 8uA
- Size:15mm*25mm
Additional information
| Weight | 0.01 kg |
|---|
