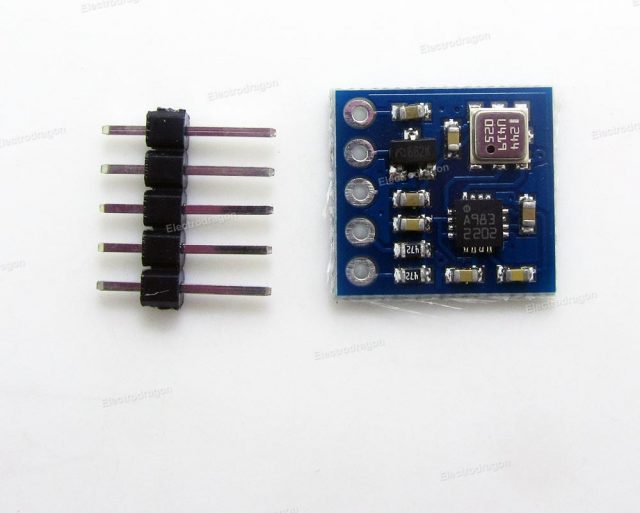

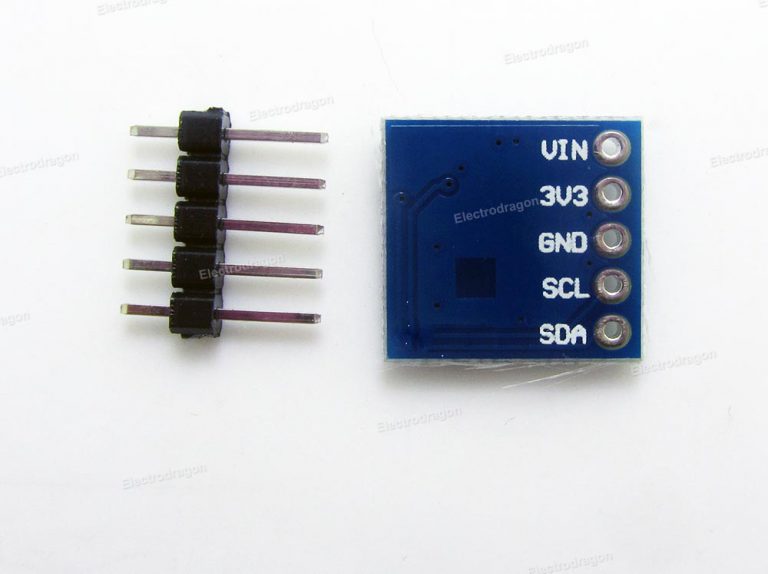

EY652 Compass Barometer Breakout Board

$5.70

SKU: SMO1011 Category: Tags: , , ,

Description

  • Electronic compass atmospheric pressure module (three-axis magnetic field + pressure)
  • The use of chip: HMC5983 + BMP180
  • Power supply :3-5v (internal low dropout regulator)
  • Communication modes: standard IIC communication protocol)
  • Magnetic field range: ± 0.88 to ± 8.1 gauss
  • Pressure Range :300-1100hPa
  • Chip 12bit AD converter, 16-bit data output
  • Machine welding process to ensure quality
  • Size: 13mm * 14mm  (standard pitch 2.54mm)

Schematic can be found here.

Additional information

Weight 0.01 kg
