EY86 10DOF IMU Motion Sensor (Acceler+Gyro+Baro+Mag)
$14.60
- Description
- Additional information
- Reviews (1)
- Enquiry2
Description

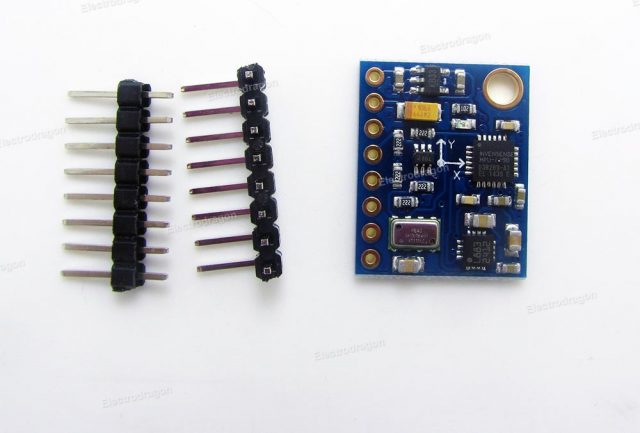

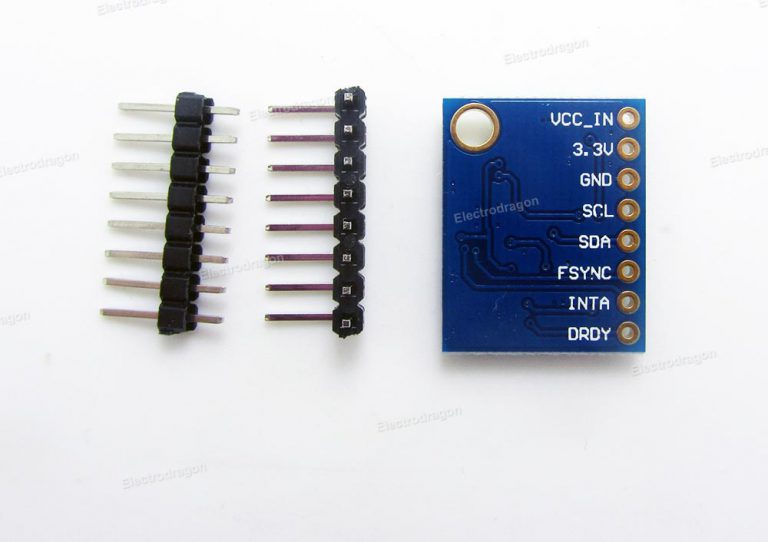

- 10DOF breakout board (gyro+accelerator+compass/Magnetic+barometer)
- Gold plating PCB
- ICs: MPU6050+HMC5883L+MS5611
- Power supply: 3-5v
- Interface: IIC (fully compatible with 3-5V, inlcuding LLC circuit)
- Size: 2.2cm*1.7cm
Additional information
| Weight | 0.01 kg |
|---|
![[Retired] LSM303DLH 6DOF 3-Axis Accelerometer Magnetometer Module](https://www.electrodragon.com/wp-content/uploads/2012/03/LSM303DLH-3-axis-Digital-Compass-Accelerometer-Magnetometer-Module-Shield.jpg)
![[Retired/Replaced by EY88] EY-80 All in one 9-Axis Motion Sensor (Gyro + Acceler + Magneto + Baro)](https://www.electrodragon.com/wp-content/uploads/2012/03/All-in-one-9-Axis-Motion-sensor-gyroscope-+-Accelerometer-+-Magnetometer-+-Barometer-.jpg)
![Proximity, Ambient Light, RGB and Gesture Sensor [APDS9960 APDS9930]](https://www.electrodragon.com/wp-content/uploads/2016/10/ads9960.jpg)
![[Retired] Nine-Axis Freedom IMU Sensor Module ( ITG3200/ITG3205 ADXL345 HMC5883L)](https://www.electrodragon.com/wp-content/uploads/2012/06/Nine-Axis-freedom-IMU-sensor-ITG3200-ITG3205-ADXL345-HMC5883L-Module-1.jpg)
![FreeScale Triple-Axis Accelerometer Breakout [Models]](https://www.electrodragon.com/wp-content/uploads/2011/12/MMA7455-Module-560x560.jpg)
aferrarel (verified owner) –
I bought this little board a while ago to start some trials with a gyro board. It comes with the 3 chips on it:
the MS5611 is a pressure/altimeter sensor
the MPU6050 is 6-axis gyro accelerometer
the HMC5883 is a triple-axis compass
all the chips on the board communicate with a I2C bus. Please note the HMC5883 is a slave of the MPU6050 so it is not directly connected to the I2C bus, this means you will see only 2 devices (addresses) when connected to a I2C master.
I used the board with a RPi and an ESP8266 without any problem, they worked fine at the first attempt. On the web you can find hundreds of examples. The Arduino libraries work well, I used them with the ESP8266.
Have fun!
