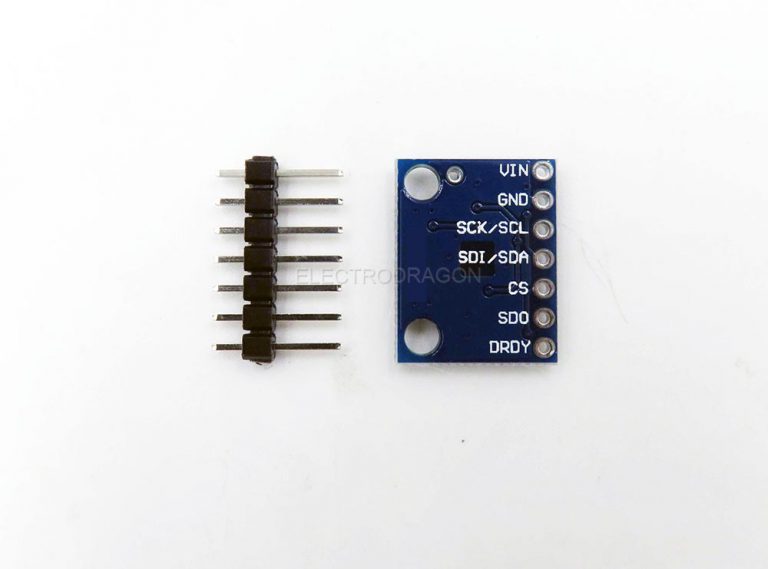

HMC5983 3-Axis 3DOF Compass Magnetometer Module
$3.60
- Description
- Additional information
- Reviews (0)
- Enquiry2
Description
Three-axis magnetic field sensor module, compatible HMC5883L, replace HMC5883L
Features
- Immersion Gold Process gilded Pin interference
- HMC5983 high-precision triaxial compass magnetic field sensor with temperature compensation
- Means of communication: IIC / SPI optional
- Power supply: DC3-5V
- With temperature compensation data output;
- Automatic offset compensation;
- Maximum 220HZ output frequency
- Heading angle accuracy of 1-2 degrees.
- PCB size: 14.5mm * 18.5mm
Documentation please see on this page.
Additional information
| Weight | 0.01 kg |
|---|
