More features about this CPLD IC please see on this page.


  • A very price-effective board for learning CPLD, verilog and VHDL language.

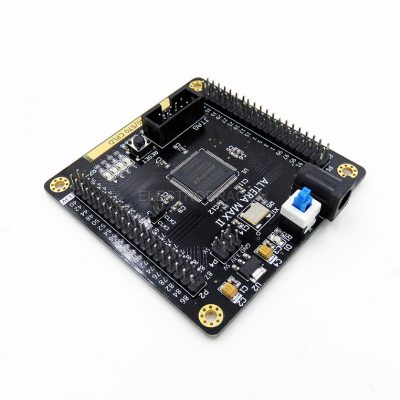

  • On Board Chip EPM240T100CN or EPM570T100CN for choosing
  • Package include high quality 5V/2A power plug (220V), 2 meters cable

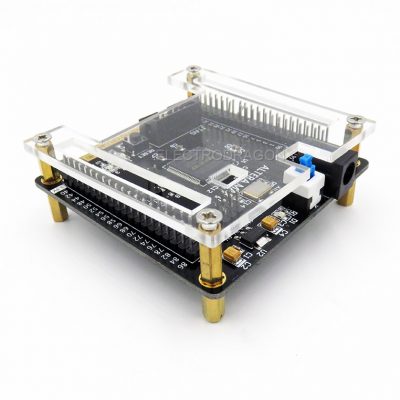

  • Package include 3mm acrylic transparent cover, in order to against ESD short, self installation.
  • Black and ENIG board technique, machine soldering, very well quality

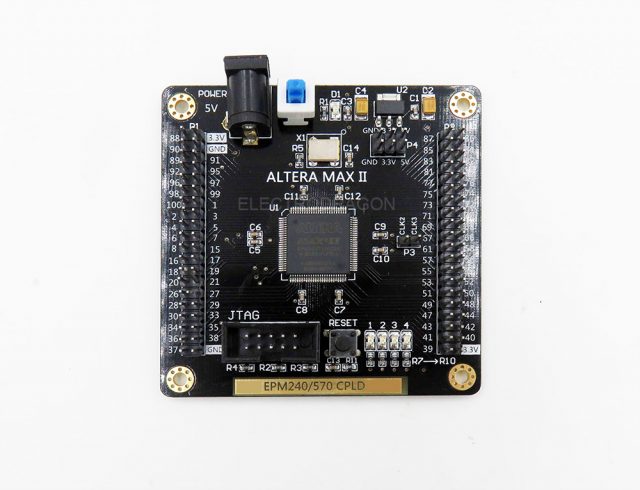

  • All the pins are lead out (2*20-2.54mm pitch) and marked, very easy to find and use.

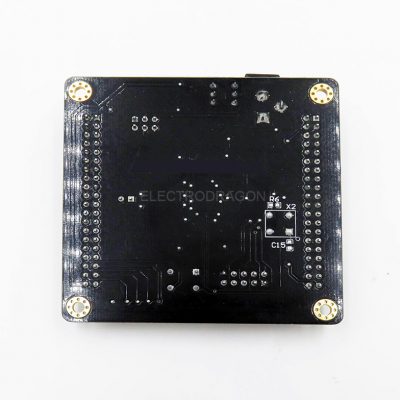

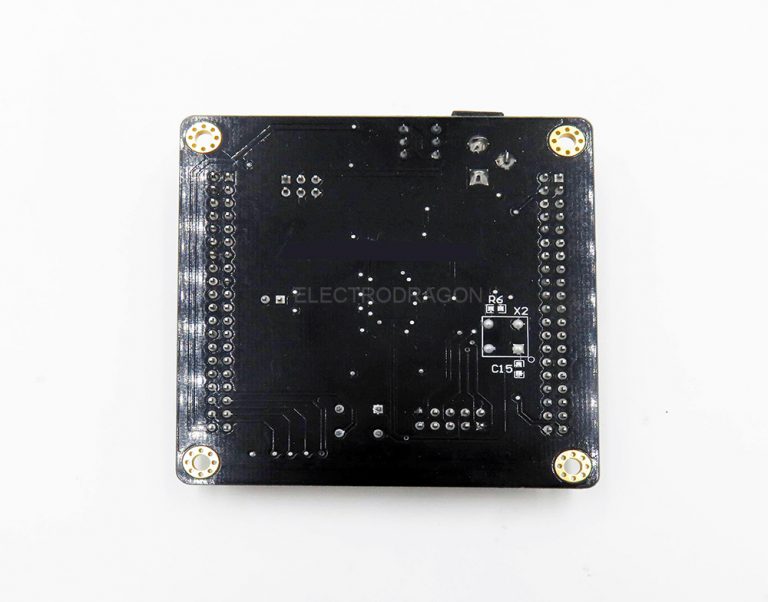

  • 50mhz main working crystal, backup crystal can be soldered on the back of the board to use.
  • Use AMS117-3v3 to supply the operational volt, use plenty of filter capacitors for filtering design.

On Board Resource:

  • 5V DC power plug
  • Red status LED indicating power
  • Self-lock power switch
  • A system reset switch, can also be used as an input switch.

Package includes:

  • Altera CPLD EPM240 or EPM570 board
  • 5V/2A power plug   > USB to DC power cable.
  • Acrylic cover and screws
  • 1 DVD disk including some free software (some software will be identified as virsus, feel free to use it or not)
