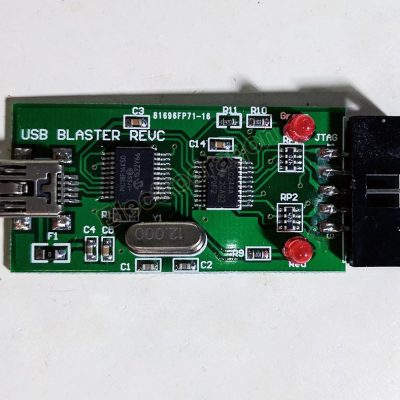

USB Blaster ED-Revsion, ALTERA CPLD/FPGA Programmer

$8.30

SKU: DPR1077 Categories: ,

Description

  • Support winxp,win7 win8 win10
  • Stable support SignalTap II embedded logic analyzer function, grab data will never catch a mess!
  • ALTERA company supports a full range of devices. Absolutely the whole series, do not worry about a device does not support!
    • CPLD: MAX3000, MAX7000, MAX9000 and MAXII etc.
    • FPGA: Stratix, StratixII, StratxIII, Cyclone, CycloneII, CycloneIII, ACEX1K, APEX20K and FLEX10K etc.
    • Active serial configuration device: EPCS1, EPCS4, EPCS16, EPCS64 etc.
    • Enhanced configuration devices: EPC1, EPC4 like.
  • Supports three download mode: AS, PS and JTAG (JTAG_uart supported)
  • Communication and debugging support Nios II embedded soft core processor in the system, Rev.C latest firmware! (No any warning will occur)
  • High Speed: 6 times faster than conventional parallel port download cable ByteBlasterII ;
  • Easy to use: MiniUSB interface easy connection, two status indicators to make debugging more handy.
  • Must: current laptop has not the parallel port anymore, so common was ByteblasterMV and ByteblasterII download lines can not be used in a notebook, so for notebook users, choose USB download cable that is convenient, it is a must.
  • Fully compatible with ALTERA USB Blaster. Usage, functionality and performance are consistent and  original ALTERA programmer.

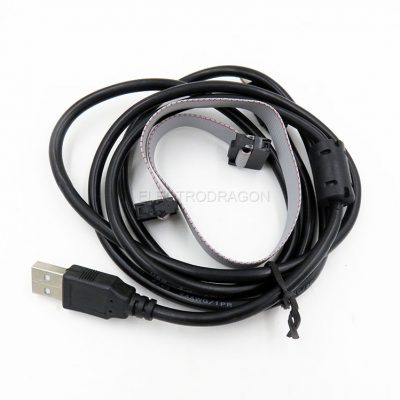

  • Package includes 10 pins cable and USB cable.
  • Please find the quartus II software and driver in our download address.

Note:  JTAG protocol communication is a very vulnerable protocol, please avoid interference.

  1. From JTAG connector to target IC layout please follow the high frequency signal requirement.
  2. Make sure the PC end of USB balster can supply sufficient power, no interference and no any other USB device use together.
  3. Eliminate the interference source, such like cell phone, and shorten your USB cable
  4. if any communication error happened, reconnect the programmer, and restart Quartus II software.

Additional information

Weight 0.11 kg
