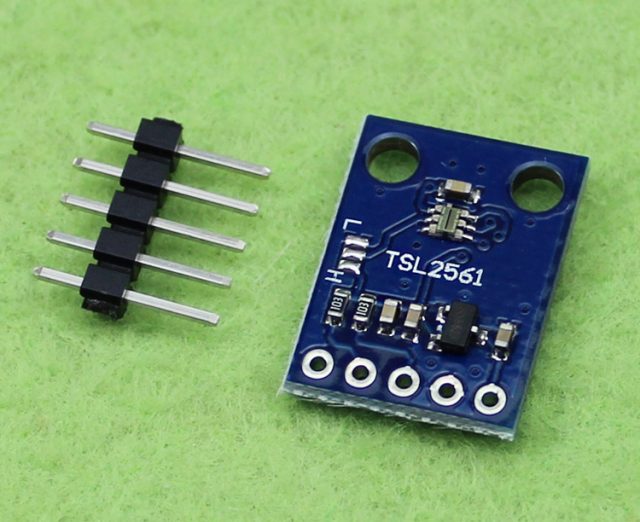

Ambient Light Intensity Sensor TSL2561 Breakout

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

$1.70

SKU: SSL1053 Category: Tags: ,

Description

  • On Board 5V-3.3V LDO, support 5V power supply
  • The TSL2561 Luminosity Sensor Breakout is a sophisticated light sensor which has a flat response across most of the visible spectrum.
  • Unlike simpler sensors, the TSL2561 measures both infrared and visible light to better approximate the response of the human eye.
  • And because the TSL2561 is an integrating sensor (it soaks up light for a predetermined amount of time), it is capable of measuring both small and large amounts of light by changing the integration time.
  • The TSL2561 is capable of direct I2C communication and is able to conduct specific light ranges from 0.1 – 40k+ Lux easily.
  • Additionally, the TSL12561 contains two integrating analog-to-digital converters (ADC) that integrate currents from two photodiodes, simultaneously. The built in ADC means you can use this with any microcontroller, even if it doesn’t have analog inputs.
  • The current draw is extremely low, so its great for low power data-logging systems. about 0.5mA when actively sensing, and less than 15 uA when in powerdown mode.

Documentation please see on this page.



Additional information

Weight 0.005 kg

1 review for Ambient Light Intensity Sensor TSL2561 Breakout

  1. Rated 5 out of 5

    marc06 (verified owner)

    Perfet for controlling LCD intensity.
