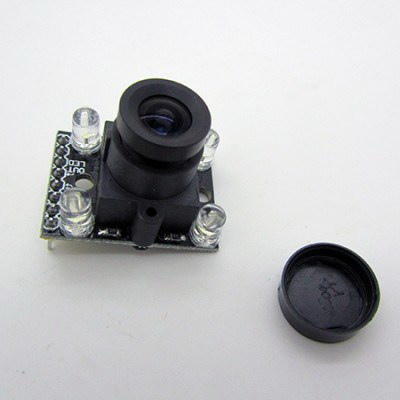

TCS230 TCS3200D Color Sensing/Sensor Module (w/Wide-angle Lens)

TCS230 TCS3200D Color Sensing/Sensor Module (w/Wide-angle Lens)

$8.60

SKU: SSL1037 Category: Tags: , ,

Description

  • On-board the TCS3200 color sensor

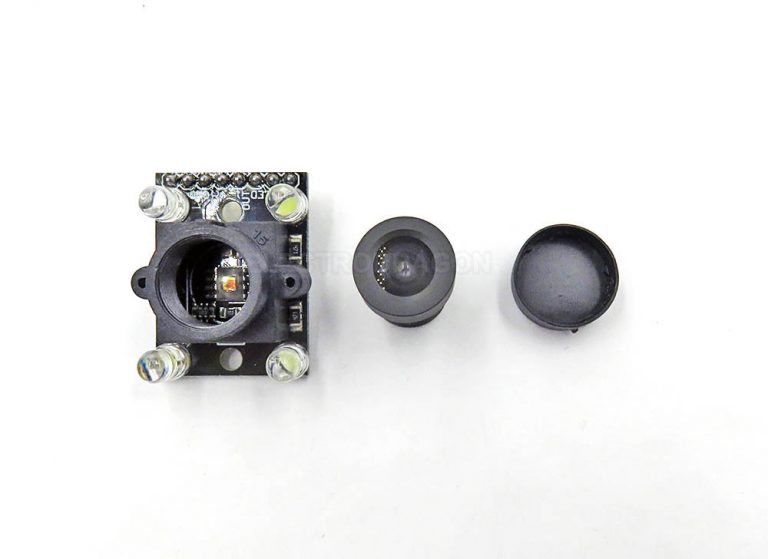

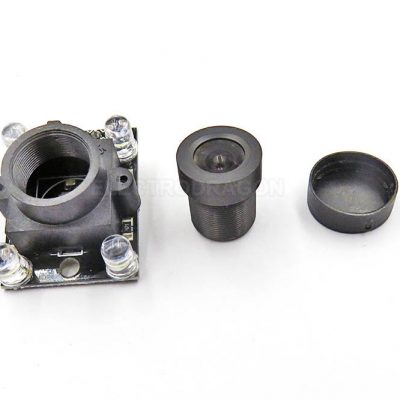

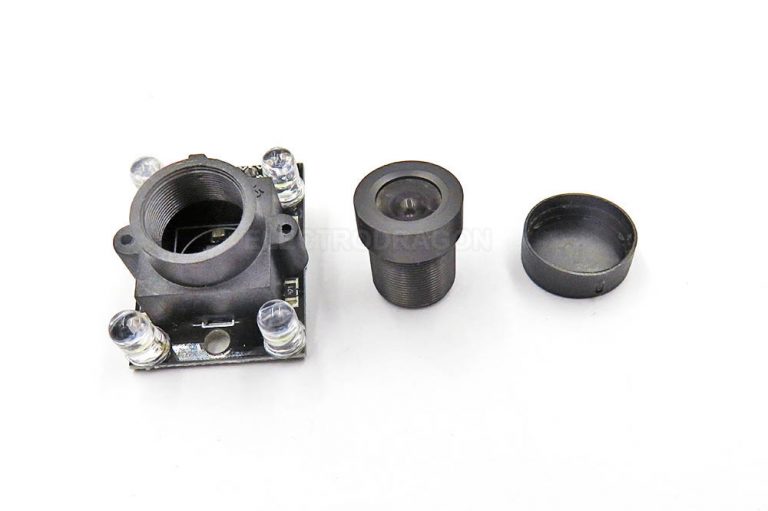

  • With  removable wide-angle lens, can identify a large area or a small area of the object.
  • Support 3V-5V voltage input

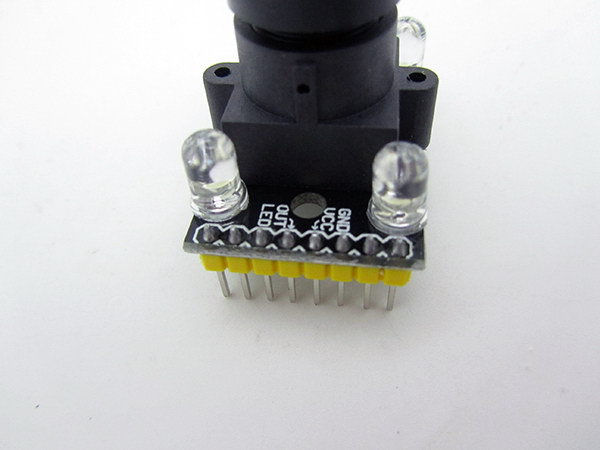

  • Chip pin all already leads pin standard 100mil (2.54mm), convenient for dot matrix board design
  • With four bright white LED can illuminate the object which does not emit light itself. Controllable light-emitting tube.

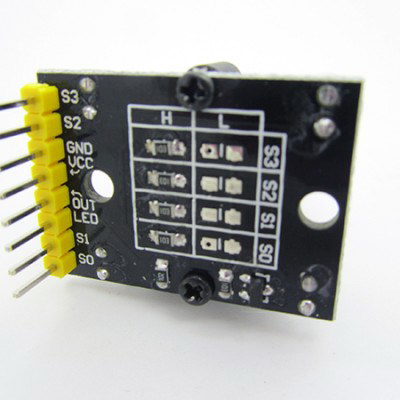

  • S1 S2 S3 S4 can be the pull-up or pull-down resistors on board.
  • Two 3mm mounting screw holes spacing 16.5mm
  • Screw diameter of the lens is 12mm.
  • PCB Size: 23mm X 30mm

Documentation on this page.

Additional information

Weight 0.015 kg
