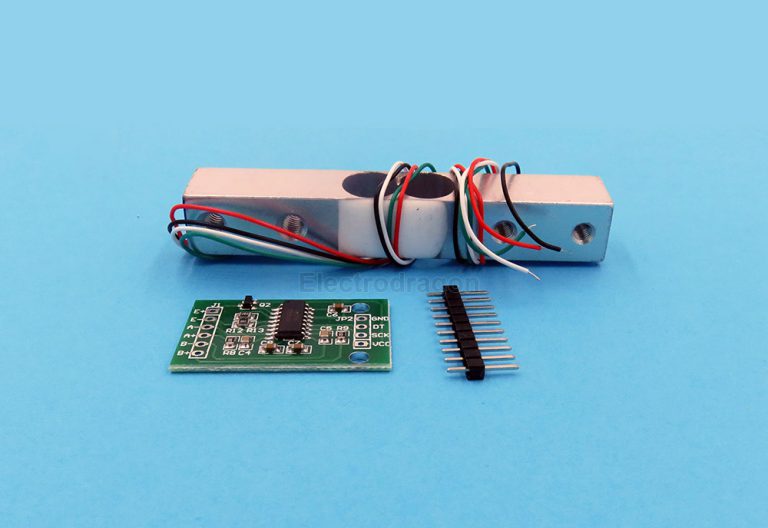

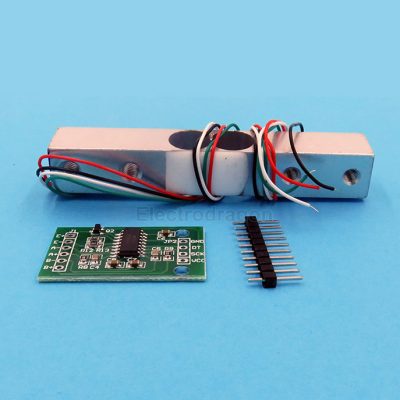

Load Cell Amplifier, Weight Sensor Kit, HX711 [KG]




  • HX711 load cell amplifier
    • Internal 24bit ADC amplifier
    • Two selectable differential input channels
    • On-chip active low noise PGA with selectable gain of 32, 64 and 128
    • On-chip power supply regulator for load-cell and ADC analog power supply
    • Output sensing range depends on input voltage. For exmaple if input voltage is 5V, then full sensing range is 5V * 1mV = 5mV

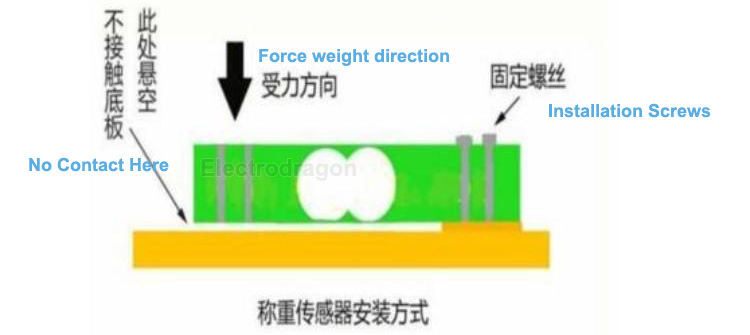

    • The higher pressure force, the higher output analog voltage.

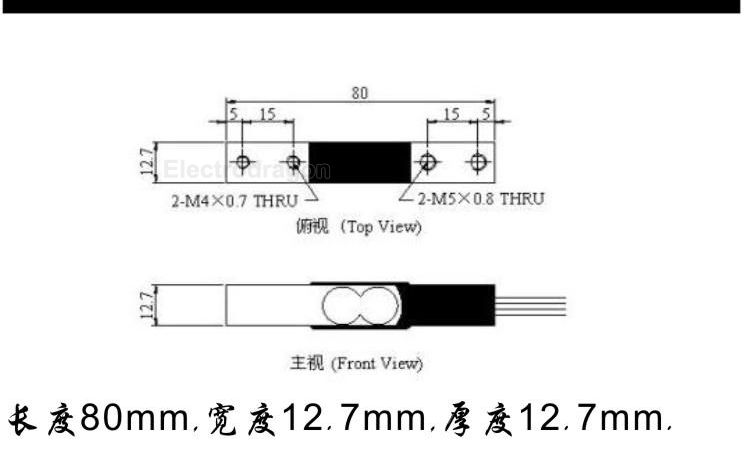

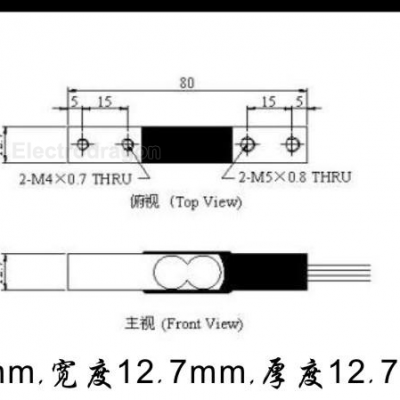

  • Common gauge load cell, version 1KG, 10KG, 20KG.
  • Wiring from HX711 to load cell:
    • Load cell sensor RED – HX711 E+
    • Load cell sensor BLACK – HX711 E-
    • Load cell sensor WHITE – HX711 A-
    • Load cell sensor GREEN – HX711 A+
  • Wiring of HX711 to MCU Pins:
    • Gnd – power gorund
    • DT – data output
    • SCK – clock
    • VCC power 2.7-5V

Additional information

Weight N/A
Other sensor

10KG, 1KG, 20KG
