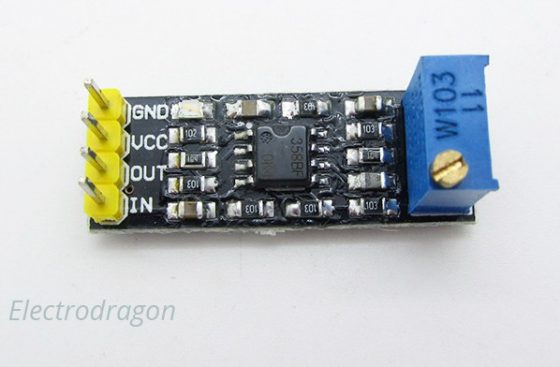

Amplify analog signal from 10x to 100x, common rail to rail amplify solution.


  • Used LM358, mono power supply operational amplifier
  • Magnify 100 times in theory.

Due to the temperature drift, zero issues, etc,  the precision of the amplification won’t be exact. Please consider these details.

See the schematic on this page.

Additional information

Weight 0.005 kg
