Resistive Strain Gauge Foil, Pressure [Type]

Description

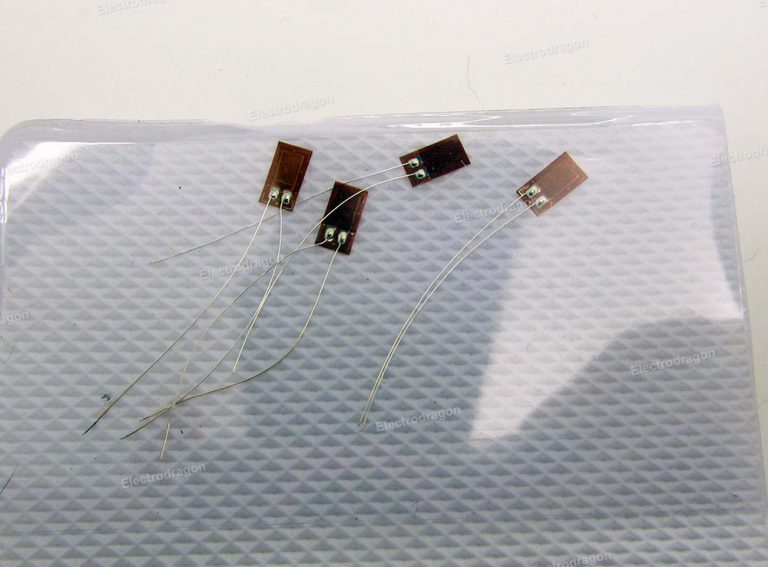

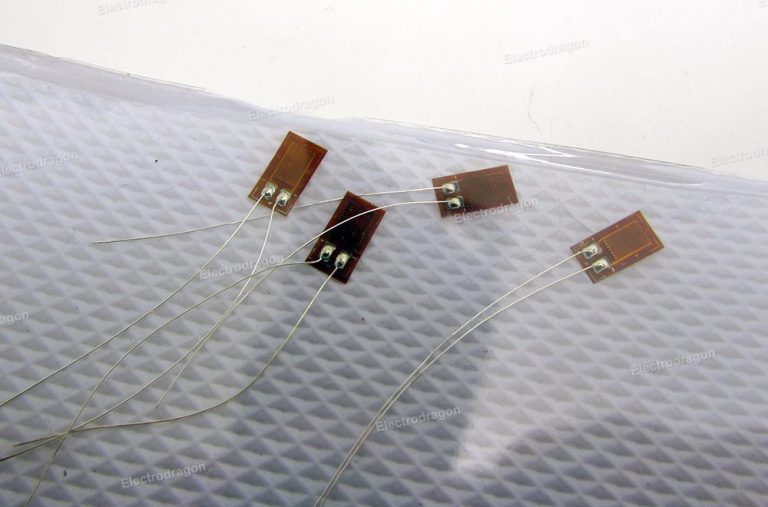

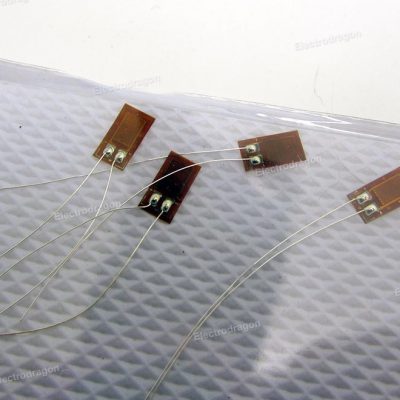

R1-BX

• Resistive value 120 ohm
• Input voltage 3-10V
• Gauge Factor sensitivity：2.0－2.20
• Precision level: 0.02
• Size 6.6*3.6 mm
• maximum strain : 20000 um/m
• Temperature -30~60 degree.
• Each end has two very tiny solder cable lead out. Siliver wires, without insulated materials covered.

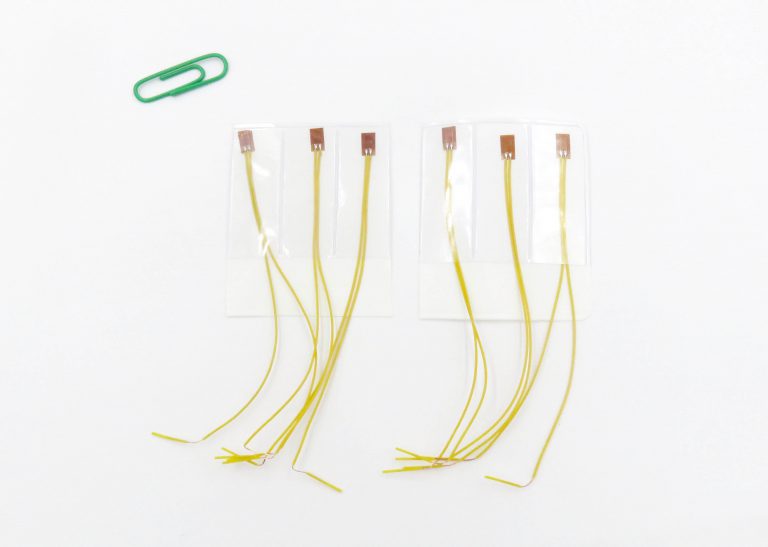

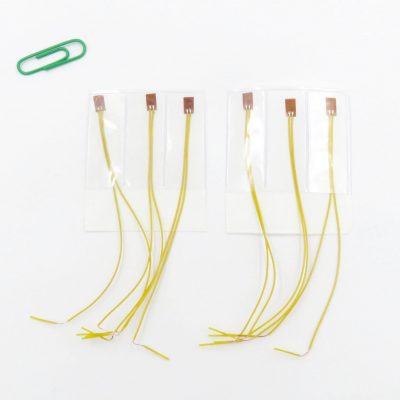

R2-BFH

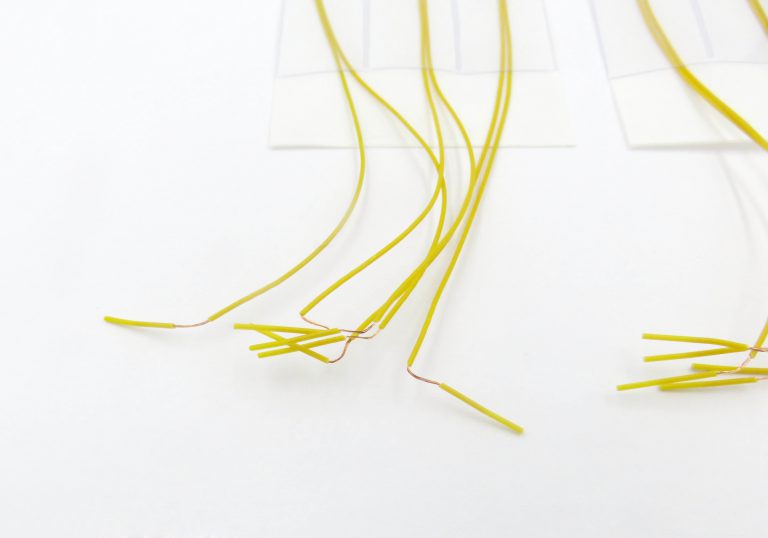

• Based on R1 3AA version, but soldered insulated 10CM wires. You can directly solder on pads or holes on PCB.

• Each purchase is for 2pcs.

The sensor should be glued on target medium, see more details about strain gauge on wikipedia.
