PCB Service 2 layers [Size]

Hot

PCB Service 2 layers [Size]

$13.30

SKU: SPB1010 Category: Tags: ,

Size *

Color *

All the silk print of words will be white except white color

Thickness *

Express

Penalization *

Please read more about penalization on our wiki page.

Extra Note (Optional)

Thickness (default 1.6mm, from 0.6-1.6mm free to choose), and other requests or notes (if you have)

Other Service (Optional, Can not be applied for R2 express)

Upload PCB files

Upload PCB files, must be in zip format, less than 1mb

(max file size 1 MB)

Description

Board Size:
  • Length and width within 10×10 cm – default
  • Length and width over 10×10 cm but within 10×15 cm, extra cost +$22
Board Color:
  • R1 Standard PCB: White, Black, Red, Green (R2 Express Free), Blue, Yellow
Lead Time:
  • R1 Standard PCB: 6-7 Days, support express option 30 hours or 50 hours. (If you have two PCB order, can only order one of this extra service for two)
  • R2 Express Free1-3 Days, express in 60 hours, no need extra express cost.
Board Layer:
  • 2 – Default
Board Quantity:
  • 10PCs each purchase Default
Board Thickness:
  • 0.6mm, 0.8mm, 1.0mm, 1.2mm, extra cost +$0.5
  • 1.6mm – Default (R2 Express Free)
  • 2.0mm, extra cost +$20
Board Trace Copper Thickness:
  • 1oz, 35um, Default
  • 2oz, 70um, extra cost +$20
Main Specs:
  • Trace width/spacing: 6/6 mil
PCB finish:
  • HASL – Default
  • HASL Free + $6
  • ENIG + $20
Half-Hole/Impedance
  • Half-Hole + $20, if you need this please contact first or write note in order.
  • Impedance + $60

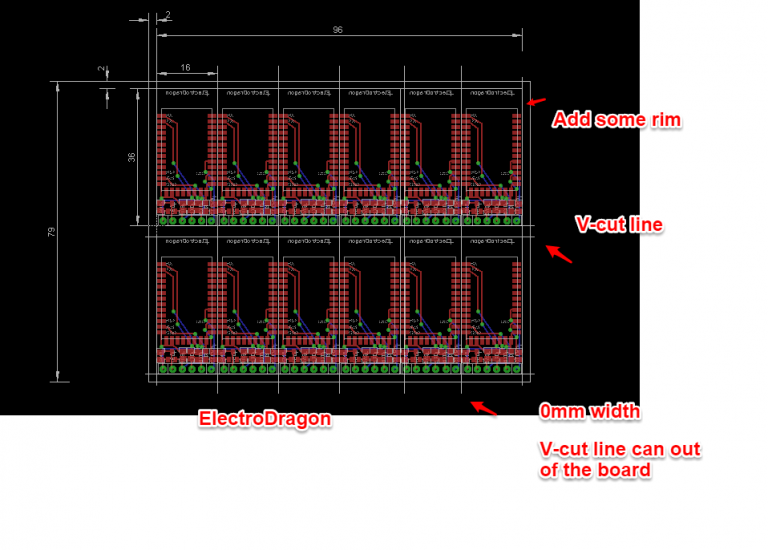

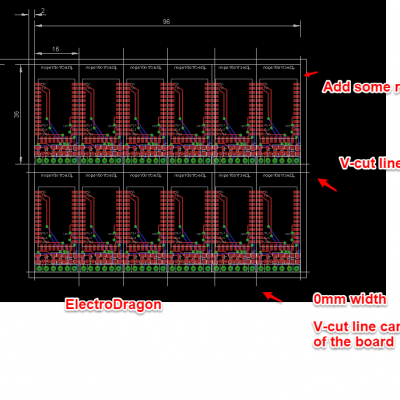

Penalization:



  • Add stamp holes, V-cut or similar penalization technics need extra cost, please choose correct options, otherwise will NOT be applied.
  • Non-Penalization single board can apply R2 express free.

Note:

How to order:

  • Double check your gerber file is validate, see more here
  • Please make sure files are all correct, we will check your files in the beginning but it’s 100% we can find all problems (only check manufacturing issues), any extra problems caused delay we will be hard to response for it.
  • Placed your order with right options on this page.
  • We will confirm your in 12 hours after we send into production.
