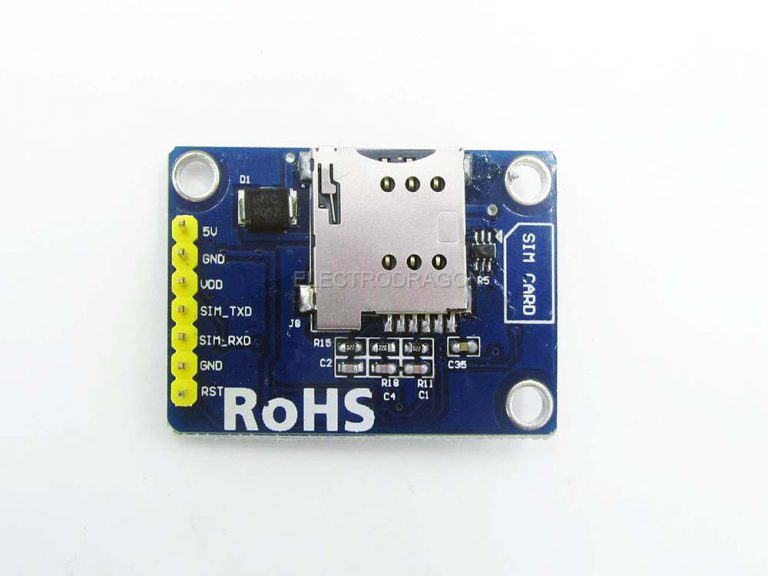

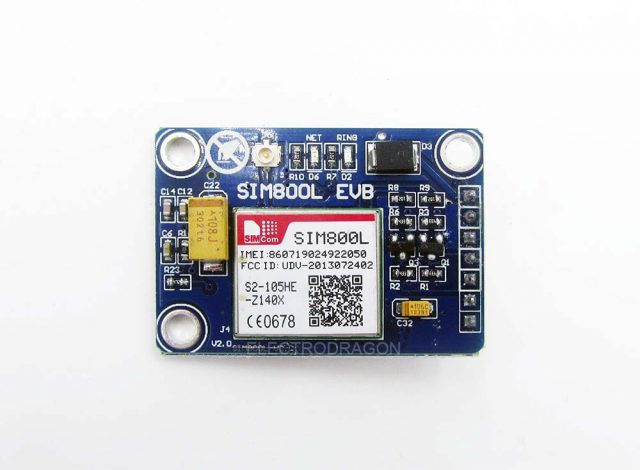

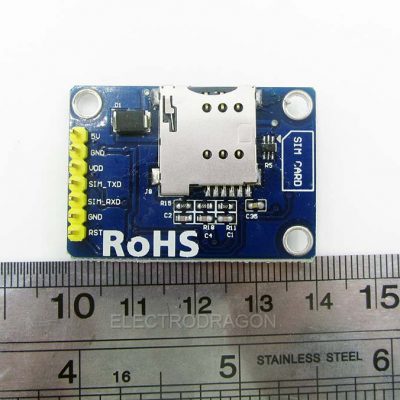

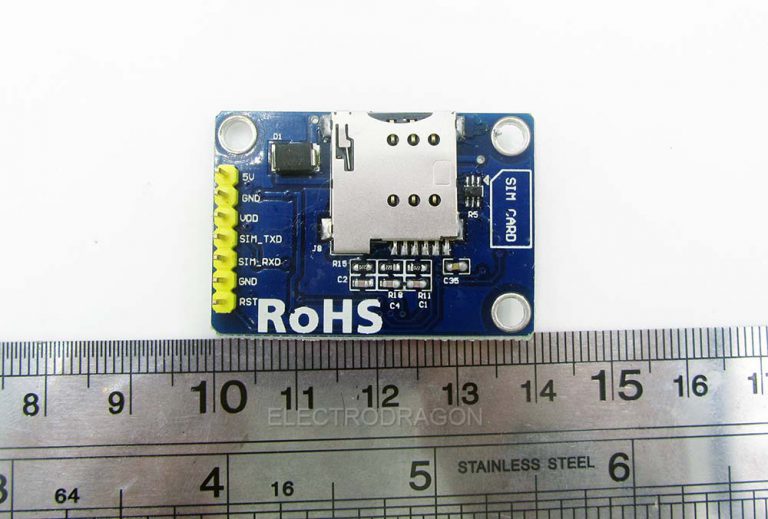

[Retired]SIM800L GSM GPRS Dev Board (Replace SIM900A)

ESP8266 SMD Breakout Board R2 [version]
SIM800H-Mini Dev Board (GSM/GPRS, Bluetooth Default)
0 out of 5
( There are no reviews yet. )

$18.30

Availability: Out of stock SKU: NGS1021 Category:

Description

This module power supply of 5V, computer debugging USB to TTL serial port. 800MA power supply output current , TTL serial port compatible with 3.3V and 5V MCU, the MCU can be connected directly.

IPX antenna interface can switch PCB antenna, glue stick antenna and sucker antenna.

SIM800L 4 frequency data communications, globally available.

Feature:

  • The ultra-small size for a variety of cuff and embedded.
  • Using side slot design, easy to switch phone card when you design it within a case
  • IPX interface may optionally replace the antenna. Default PCB antenna, greatly reducing: the use of space.
  • board with gold board, in terms of performance more stable.
  • More stable because of the golden plated PCB
  • This module add protection devices that can be anti-reverse, anti-hypertension, reducing the board’s loss, suitable programs and learning.

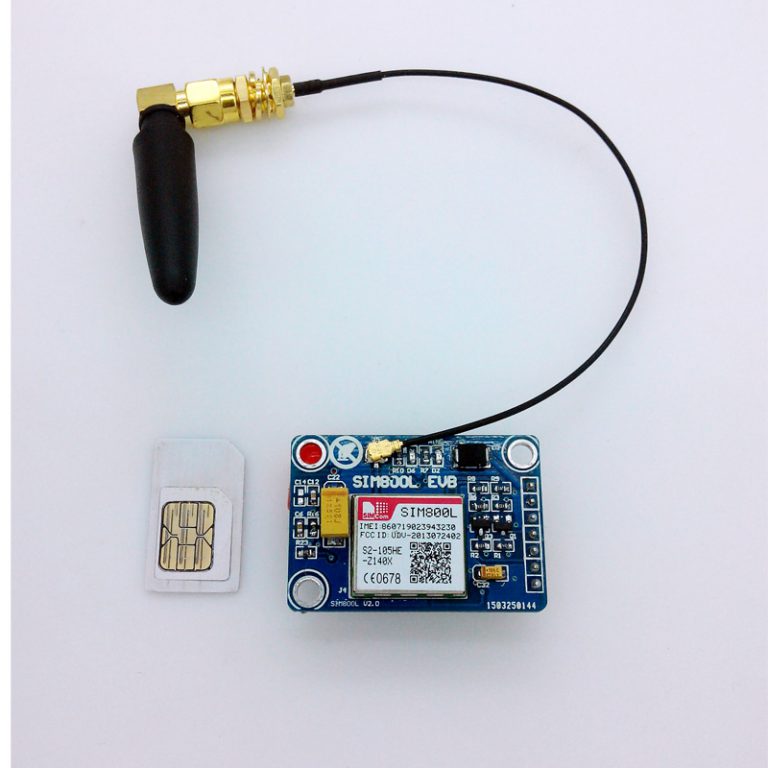

Package includes SMA-IPX cable and Rod antenna, as shown in the pictures.

Documentation please see on this page.

Additional information

Weight 0.04 kg

1 review for [Retired]SIM800L GSM GPRS Dev Board (Replace SIM900A)

  1. [email protected] –

    SIM800L does not support bluetooth, only SIM800H does.
    And the price is way to high, the same board is sold on ebay for 12$
