EDL TFT LCD Display LCM Module [Size]


SKU: ILC1026 Category: Tags: , , ,



  • All LCDs includes the SD card slot and touch panel function.
  • All LCDs are Arduino supported, can be driven by Arduino, AVR, PIC, STM32 and most 8080 16bits MCUs.

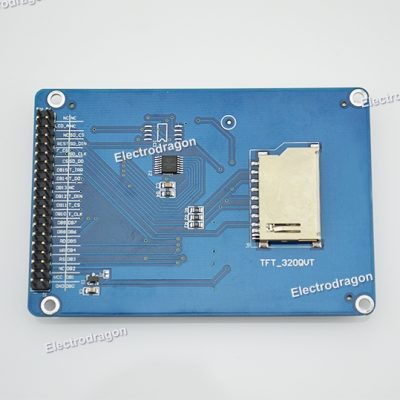

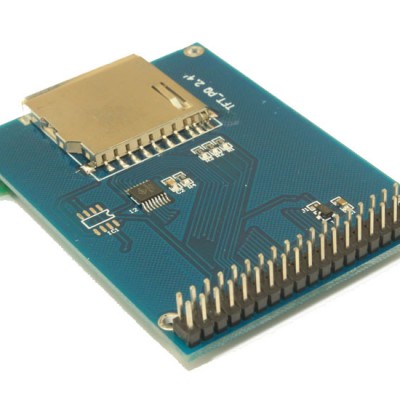

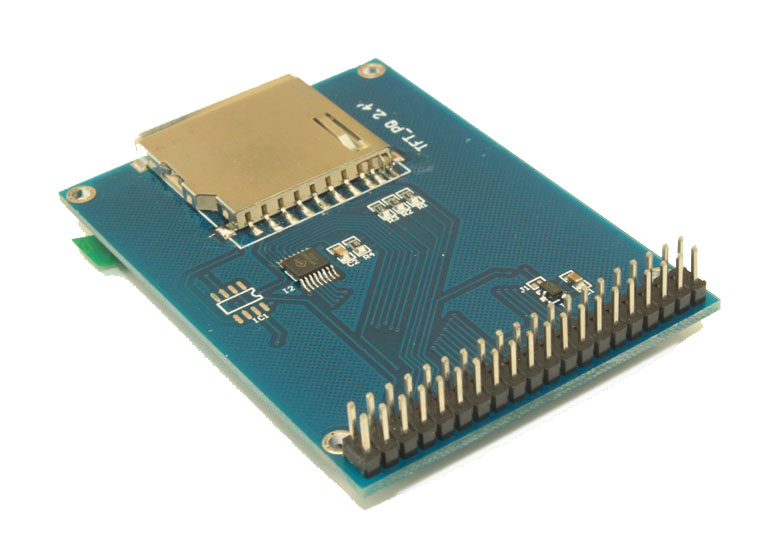

  • All LCDs also includes the backpack PCB, 3.3-5V power regulating circuit (AMS1117).
  • All LCDs are supported by UTFT library. And some codes need to modify further due to some reasons, for example in the touch panel demo code, display on X+ and X- are mirror, so when you draw on left it comes to right, this changes on code will need to do it by yourself.

This series include size:

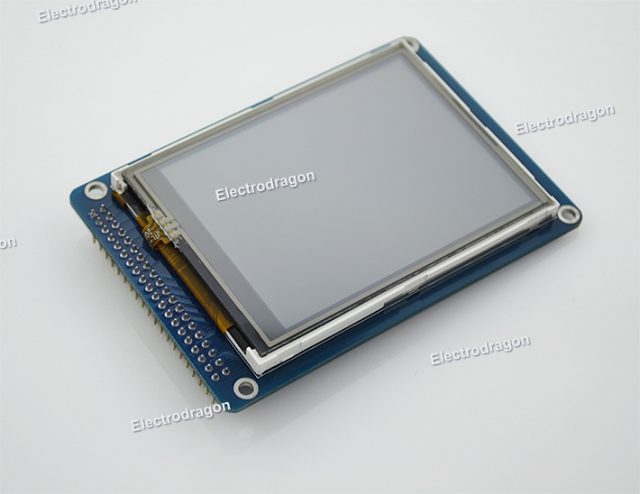

  • 2.4” – ILI9341 – 240*320
  • 3.2” – ILI9341 – 240*320
  • 3.2”-W (Widescreen)
  • 4.3” – SSD1963 – 480*272

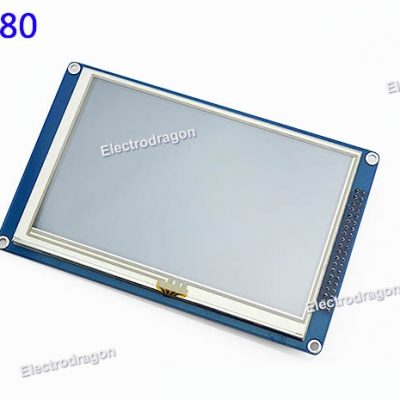

  • 5.0” – SSD1963 – 800*480
  • 7.0” – SSD1963 – 800*480

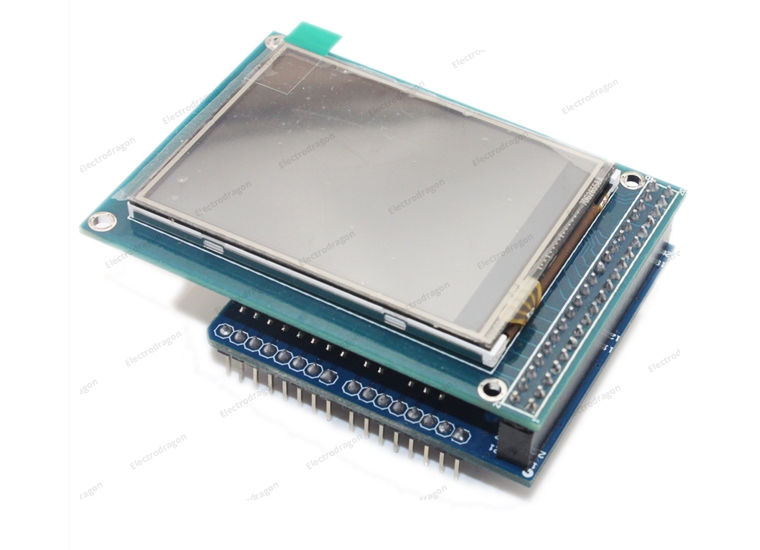

Addons : EDL Arduino shield available on this link, you can directly plug this LCD module in the shield and work with Arduino board.

Documentation and demos please see on this page.

Additional information

Weight 0.07 kg

, , , , ,
