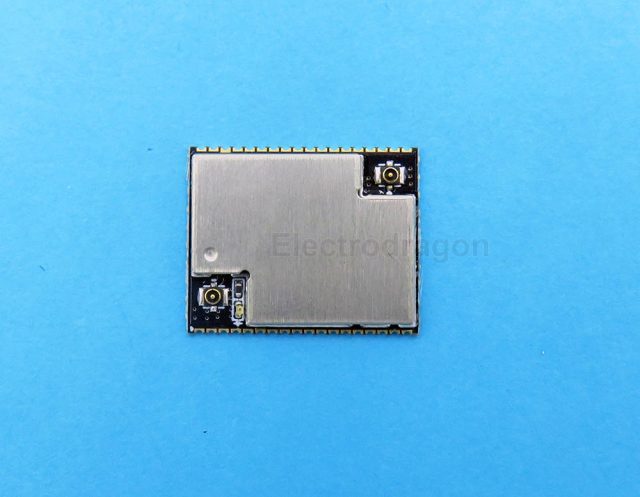

- This is a highly integrated module, include RDA5981C and RDA5856QE32 inside:
- RDA5981C – is 32Mbit Wifi SOC IC, support embedOS programming, for more information about RDA5981, please check wiki page.
- RDA5856QE32 is a Bluetooth BLE+EDR (Bluetooth 4.0 + 2.0) dual mode audio module.
- Also has SDK programming supported.
- Please notice this part of wiki page is still writing.

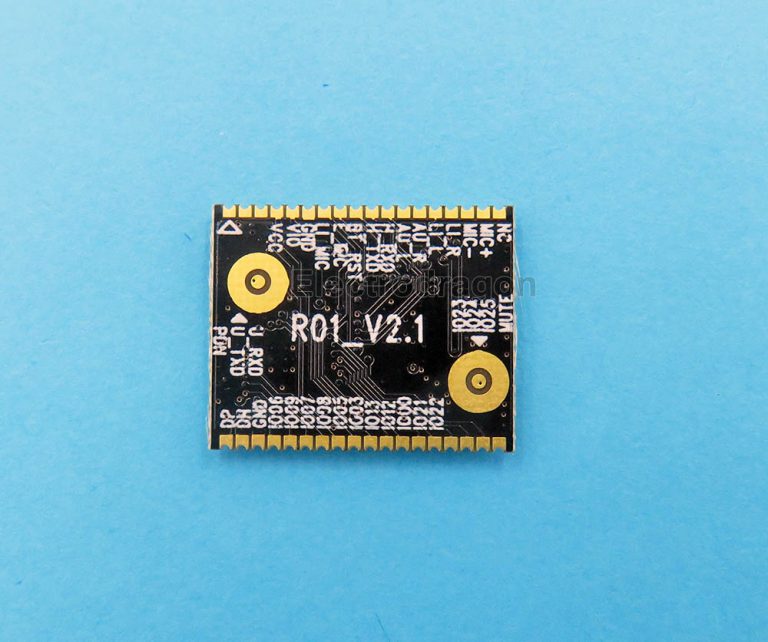

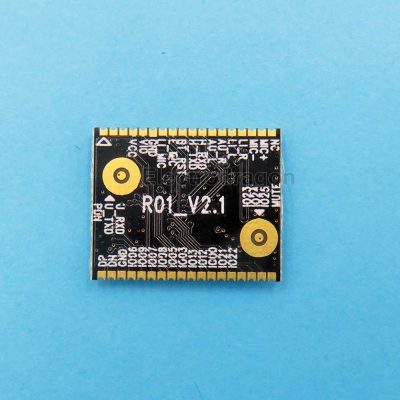

- Right side is most RDA5981 pins, left side is most RDA5856 audio, mic, linein, etc pins.
- On board IPEX connector is IOT type, not common type. For testing, this is optional to add or not.

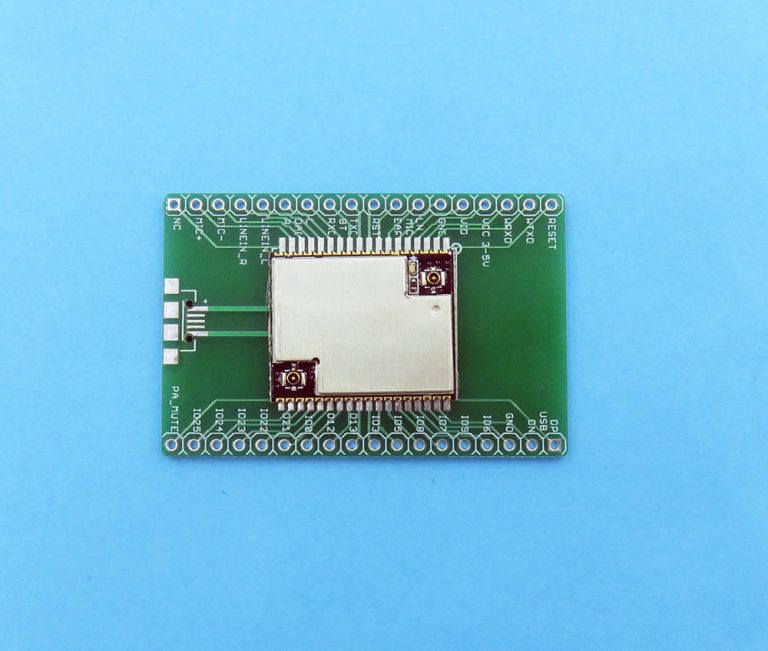

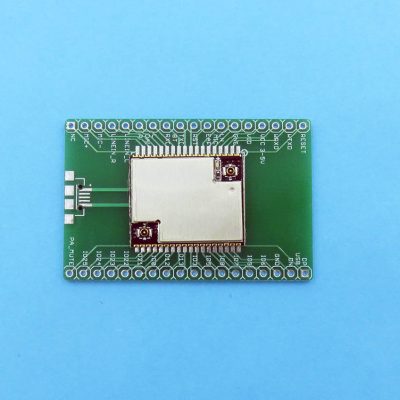

- Shipment include a breakout board.
- Module power up to 5V, on breakout board reserved a USB power supply footprint.
