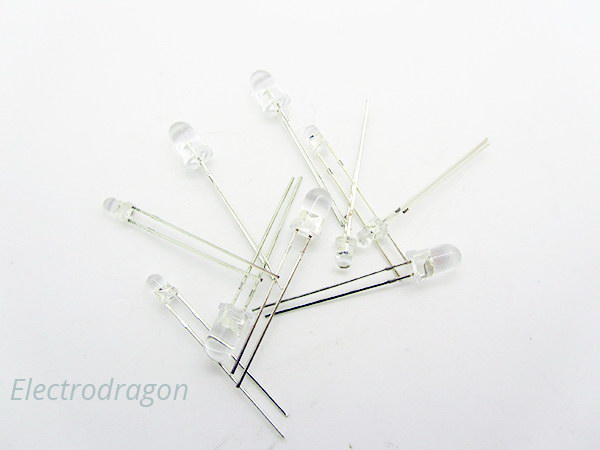

50PCs Infrared IR Transmitter LED [3/5mm Dia.]


SKU: 3205211 Category: Tags: , ,


  • The launch range: the receiver sensitivity is directly related to the circuit, does not belong to the scope of its properties, this one mounted in the top of the remote control experience value range is 10m.
  • Angle 30 degree
  • Transmit distance 9 meters
  • Wave length: 940nm
  • VF 0.9-1.3V (IF=20mA, max 30mA, pulse current 60mA)
  • IR=5uA (VR=5V, max to 6V)
  • Power 100mW
  • Add current limit resistor in the circuit for each IR LED to make sure the power of each one is same

For more dimension info you can see on this page.

Additional information

Weight N/A


1 review for 50PCs Infrared IR Transmitter LED [3/5mm Dia.]

  1. 5 out of 5

    geraldhasmail (verified owner)

    Works as advertised, no problems here.
