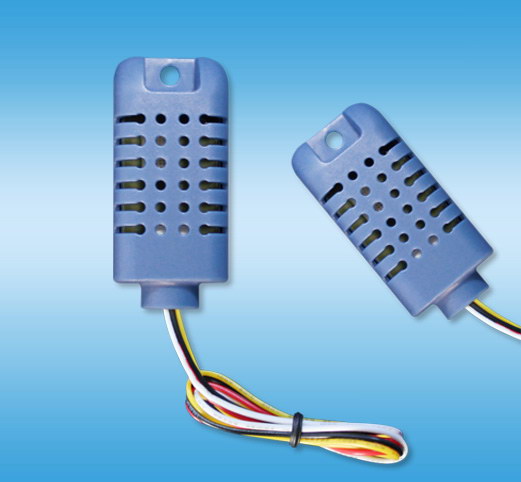

AM1011 is a humidity sensitive capacitive temperature and humidity sensor. The sensor signal adopts analog voltage output mode. This module has high precision, high reliability, good consistency, and temperature compensation to ensure long-term stability, easy to use and low price. Features, especially suitable for enterprises with strict quality and cost requirements.
HVAC, humidifier, dehumidifier, communication, atmospheric environmental monitoring, industrial process control, agriculture, measuring instruments and other applications.

Low power consumption, small size, temperature compensation, single-chip calibration linear output, easy to use, low cost, fully interchangeable, long signal transmission distance, accurate calibration.


  • Model: AM1011
  • Signal: 0-3V analog voltage signal
  • Voltage: DC4.75-5.25V
  • Humidity range: 5%-95%RH
  • Temperature accuracy: +-0.5 °C
  • Humidity accuracy: +-5%RH (30-80% RH)
  • Attenuation value: temperature: <0.1 °C / year, humidity: <1% RH / year
  • Response time: temperature: 5s, humidity: 10s 1 / e (63%)
  • Temperature range: 0~+60°C
  • Housing material: ABS plastic
  • Weight: 13.5g
  • Temperature output: 10KNTC

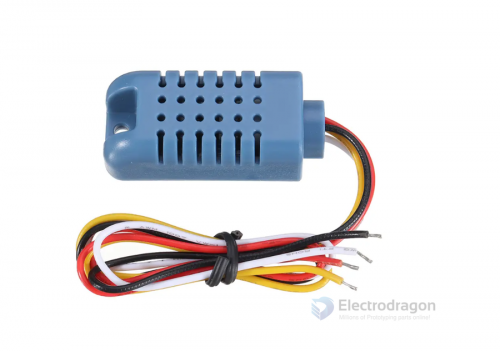

Package Includes: 1 x AMT1001 Resistive Humidity and Temperature Sensor Module.

For a completed use guide please visit our wiki page.

Additional information

Weight 0.02 kg
