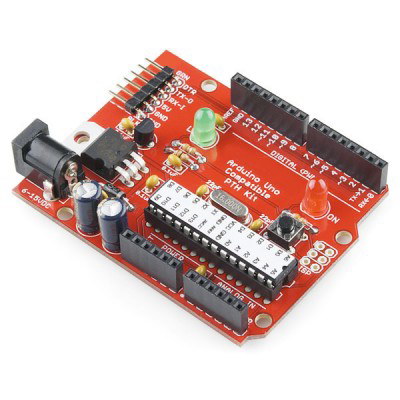

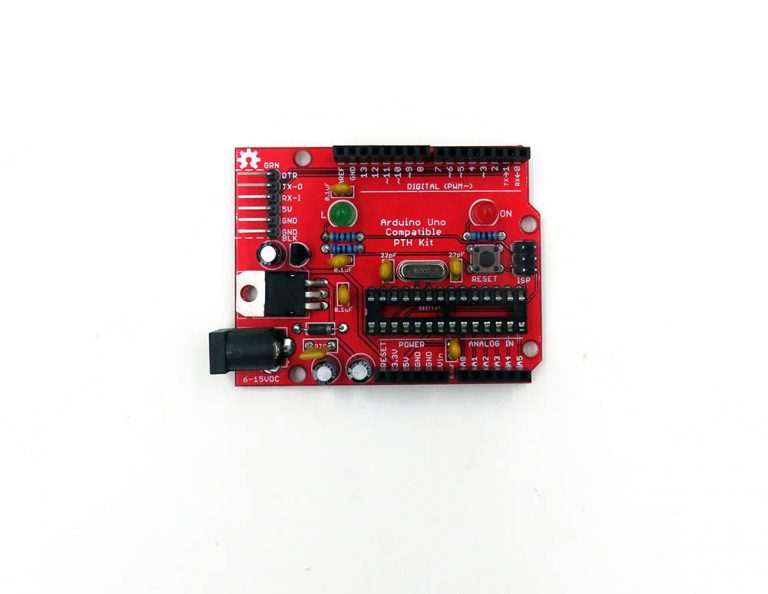

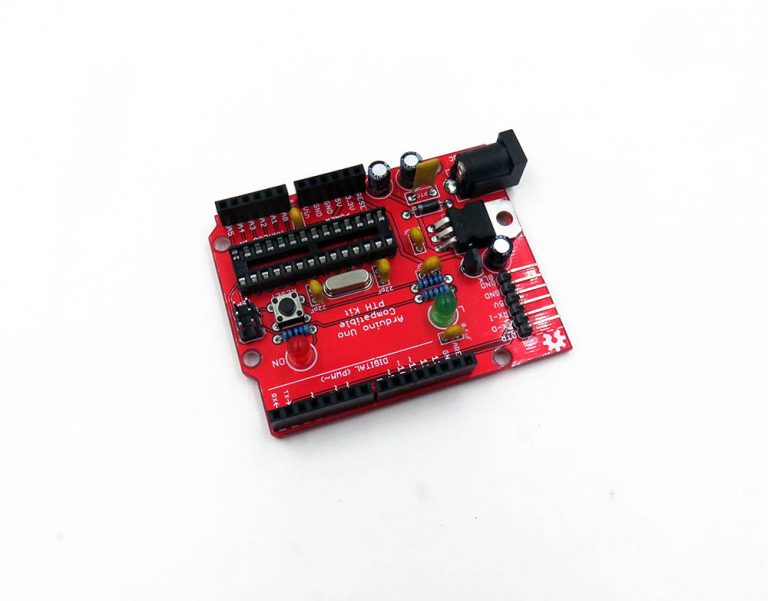

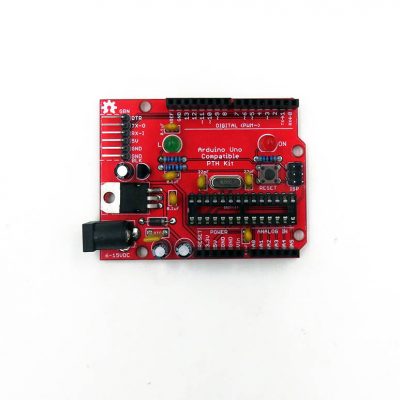

Arduino-Compatible PTH Board [Options] – w/o IC

(16 customer reviews)

$1.80

SKU: DAR1033 Category: Tags: , , ,

Description

This kit contains everything you need to build your very own Uno-Compatible development board! Simply follow the Assembly Guide and after some basic soldering, you’ll have made a fully-functional Arduino-compatible board.

Note:

Board Features:

  • Input voltage 5-24V
  • Reserve protective diode and PTC fuse
  • 16Mhz crystal
  • Standard FTDI FT232RL programming interface

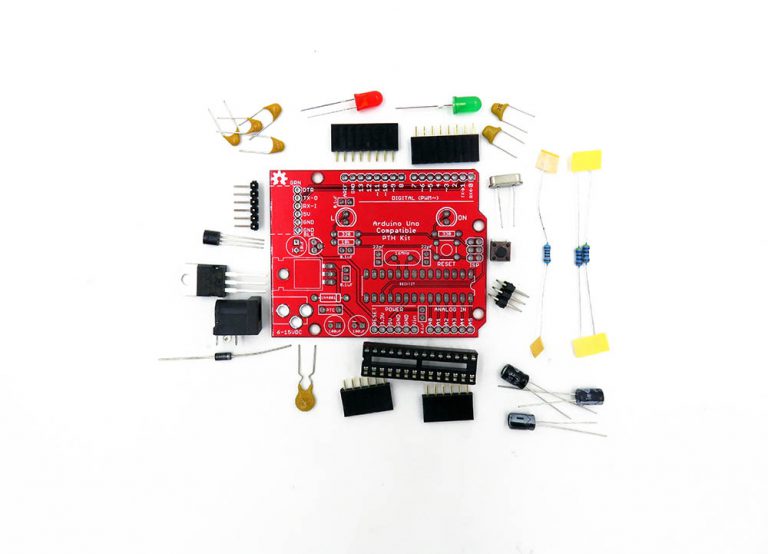

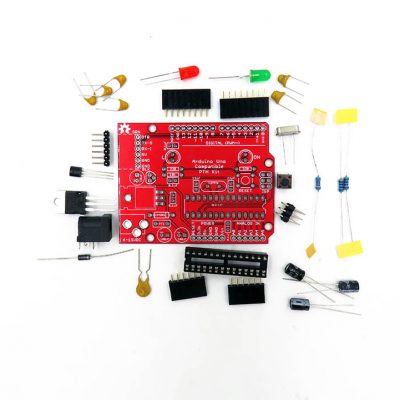

Kit Includes:

  • 1 x Arduino-Compatible PTH Kit PCB
  • 1 x ATMega328 with Optiboot bootloader (Not included)
  • 1 x MCP1700 3.3V Voltage Regulator -> changing to HT LDO (R2)
  • 1 x LM7805 5V Regulator
  • 1 x 5mm Green LED, 1 x 5mm Red LED
  • 2 x 330Ohm (or similar) Resistor -> change to 470ohm (R2)
  • 1 x 10kOhm Resistor
  • 1 x 16MHz Crystal
  • 2 x 22pF Ceramic Capacitors, 4 x 0.1uF Ceramic Capacitors
  • 2 x 100uF / 25V Electrolytic Capacitors, 1 x 10uF / 25V Electrolytic Capacitor
  • 1 x Diode 1N4001 or 1N5819
  • 1 x Resettable Fuse PTC
  • 1 x 28-Pin DIP Socket (To place your ATMega IC)
  • 1 x Push Button Reset Switch
  • 1 x DC Barrel Jack
  • 2 x 6-Pin Female Headers, 2 x 8-Pin Female Headers
  • 1 x 6-Pin Right Angle Header (To connect your FTDI Basic), 1 x 2*3 Pin Header (ISCP connector)

Documents:

R1.1 Version: enlarge the current on 3v3 output.



Additional information

Weight 0.025 kg

16 reviews for Arduino-Compatible PTH Board [Options] – w/o IC

  1. Dave H (verified owner)

    Great first project for someone learning to solder!

  2. jpoilux (verified owner)

    Work like original ! many thanks !

  3. kermed (verified owner)

    it took about 20 minutes to assemble the first one, the documents are perfect (very much like sparkfun read).

    i put a very brief reference to here on my Blog as well,

    Cheers.

    http://www.filearchivehaven.com/2014/01/25/building-your-own-arduino-uno-for-around-9-dollars/

  4. muzy (verified owner)

    Great for beginners as first solder exercise. Takes about 45 minute s for a beginner to solder – the socket for the CPU prevents it from overheating during soldering. Perfect!

  5. kermed (verified owner)

    bought a few more. still love them

  6. JOhn (verified owner)

    This is a great beginner project and you end up with a board compatible with the Arduino Uno. Of course you’ll need the processor to go with the kit to complete the build, and an FTDI programmer also sold by ElectroDragon to load in the sketches. (see SKU #DPR1003). The board is extremely well labeled but you can find build instructions on the internet also, although you probably won’t even need them. This makes a great board for use in a project, low cost and high quality.

  7. nfriedly (verified owner)

    Soldering it yourself is more fun than getting one that’s already assembled 🙂

  8. nfriedly (verified owner)

    A couple of things to note:

    1) this is based on an older Uno design, so it doesn’t have the pins that were added in R3 (IOREF and “Not Connected”). This in combination with the height and placement of the capacitors makes it incompatible with some shields, at least when assembled correctly.

    (I’m going to try building another one with some extra lead on the capacitors so that I can bend them over and out of the way – I’ll report back on whether that was a success or not.)

    2) The assembly instructions came from sparkfun, and in my case, the parts didn’t always exactly match what the instructions called for. Nothing that was too big of a deal, but it could throw off a beginner: some of the capacitors were a slightly different value, and the resistors were the correct value but used 4 bars instead of 3 so you can’t just go with the colors in the instructions.

    Altogether, though, I’m very happy with the result and will probably be picking up a couple more of these.

  9. Kenneth (verified owner)

    very nice board as others have noted needs to change out the caps to a “STUBBY” or shorter ones … works wonderful and makes for a nice 1st time soldering job for beginners

  10. Matthias von Ehr (verified owner)

    sehr schönes KIT , hab jetzt schon 3 Stück.
    das neue ist das beste, Kondensatoren sind jetzt nicht mehr so hoch.
    perfekt.

  11. cetaron (verified owner)

    It is a great kit, I bought 15 for a course to welding. it was great

  12. Salvatore Grisafi (verified owner)

    Had good luck with your company when I first ordered back in 2011. Ordered 3 PTH kits
    I had a problem with my second order, but it was quickly fixed so I gave five stars for customer support.
    I will order from this place again.

  13. yu.ed (verified owner)

    For some reason Electrodragon put L7905 voltage regulator (minus 5V) instead of LM7805 (+5V) into all kits I’ve ordered
    So I can’t assemble the board 🙁

  14. yu.ed (verified owner)

    I got the replacement for my PTH Kits with correct LM7805 regulators. Thank you 🙂

  15. Salvatore Grisafi (verified owner)

    Got my PTH kits the other day and they went together and worked perfectly.

  16. Michael (verified owner)

    Great product! Check the values—my set had three 100uF instead of two and one 10uF. Also, the red LED is far too bright. I used a 4.7K resistor instead.
