[Retired]ESP8266 SMD Adapter Board for wi07-12

Description

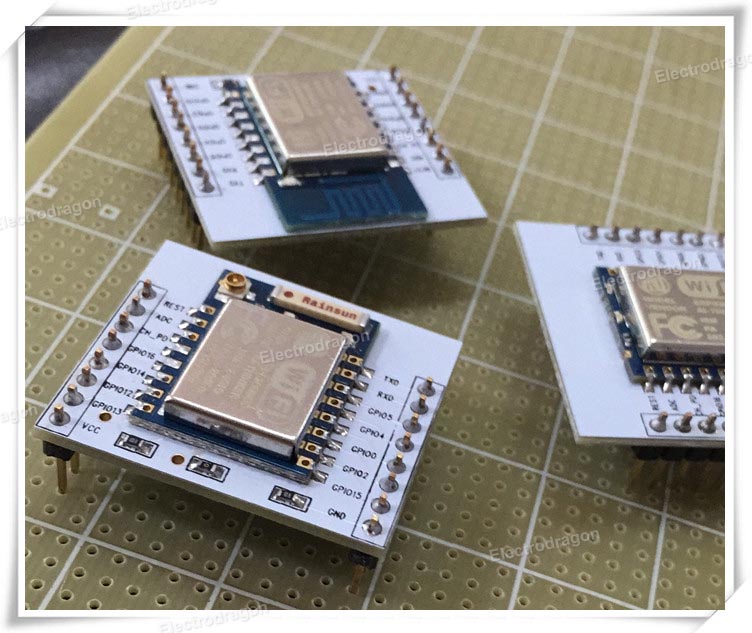

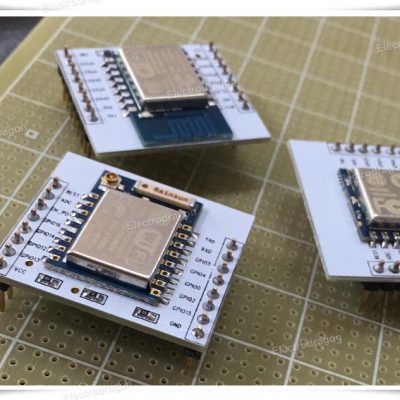

Simple ESP8266 wi07-12 SMD to DIP/PTH adapter board.

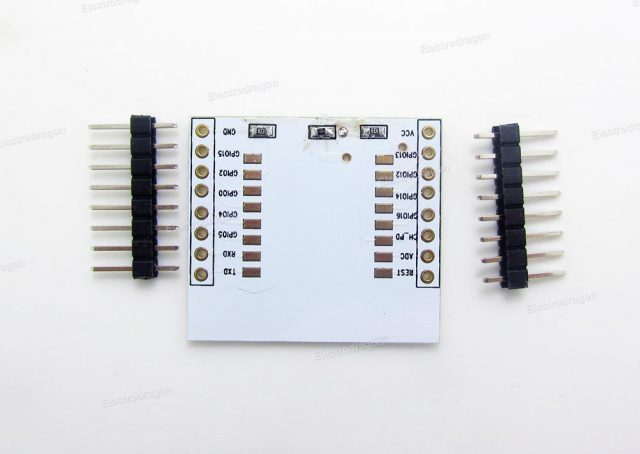

Package includes the adapter board and break away pins, all items are not soldered, not include the wifi board.

Features:

• Reserved LDO place on the back of board
• 10K resistor between CHPD and VCC, to enable chip
• 10K resistor between GPIO2 and GND
• GPIO15 to GND for normal flash boot mode

Wiring:

only need power VCC GND for power up the module, and TX, RX for serial communication.

This item will be replaced by new version soon.
