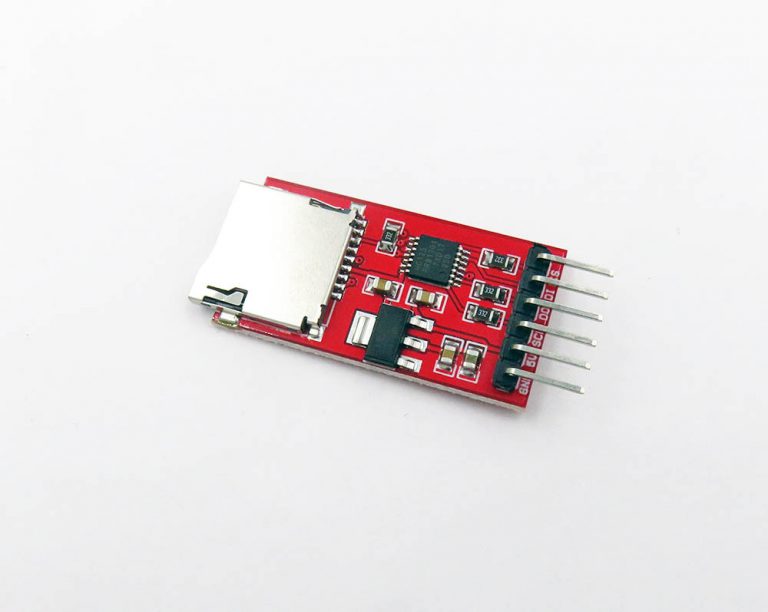

MicroSD SD Card Module w/Logic Shifter For Arduino

USB to MicroSD Card Reader GL823
OLED RTC EEPROM MISC Pack Board IIC Utility
0 out of 5
( There are no reviews yet. )

$0.90

SKU: MOT1024 Category: Tags: , , ,

Description

  • Use 74HC125 logic shifter on SPI interface to read the micro SD card.
  • On Board logic power supply from 3-5V
  • Pin Definition from top to bottom is:
    • GND
    • 5V
    • CS
    • SCK
    • MOSI
    • MISO

Version Update:

  • More simple than R1 version which use mosfet SSB138.

Documentation of schematic see on this page.
