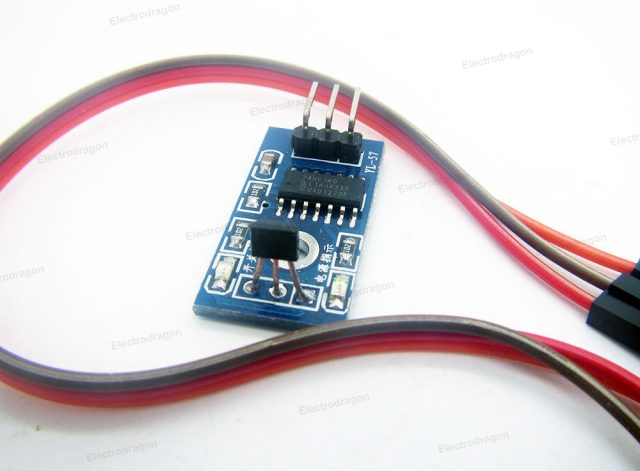

Motor Speed-Testing Hall Switch Sensor Module

(1 customer review)

$2.20

SKU: SMO1016 Category: Tags: ,

Description

Main Features:

  • Size: 2.7 cm * 1.4Cm
  • Main chip: LM393, 3144 Hall sensor
  • Working voltage: DC 5 V

Pinouts:

  • External 5V VCC
  • External GND
  • DO digital output interface (0 and 1)

Features:

  • Has a power indicator and signal output instructions.
  • Single-channel output.
  • When modules without triggering the output low; when module has triggered, the output high.
  • Sensitivity adjustable (fine-tuning).
  • There is a magnetic field signal output cut.
  • Output switch circuit board can be directly connected microcontroller or shop relay module, buzzer module.
  • Can be used for motor speed / position detection and other occasions.

Words:

  • 电源指示: Power Indicator; 开关是指示: status Indicator

Documentation:

Additional information

Weight 0.008 kg

1 review for Motor Speed-Testing Hall Switch Sensor Module

  1. egon leon dadalt

    i have this. this works so much great.
