SG90 Micro Servo For Toy Contorl [Type]
Price range: $1.50 through $3.10
- Description
- Additional information
- Reviews (4)
- Enquiry2
Description
- Dimensions: 22*11.5*27mm
- Operating Speed (4.8V no load): 0.12sec/60 degrees
- Stall Torque : 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
- Temperature Range: -30 to +60 Degree C
- Dead Band Width: 7usec
- Operating Voltage:3.0-7.2 Volts

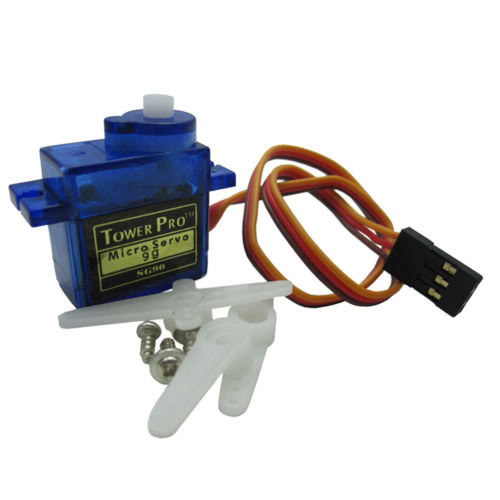

- TOWERPROSG-90 Micro Servo
- Platic gear
- Connector Wire Length 150MM
- Orange pin = PWM, red = VCC power, brown = GND
- Buck order price 17% off for 50+pcs order.
- Common used for RC Helicopter, Boat, Plane Car control

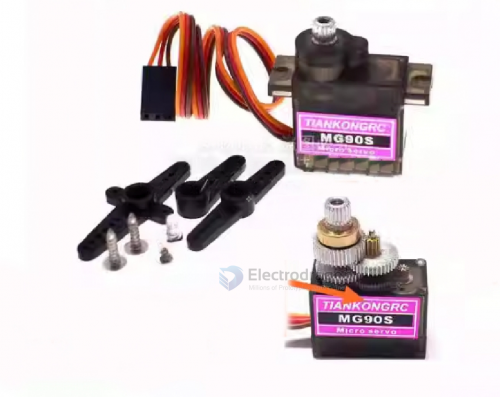

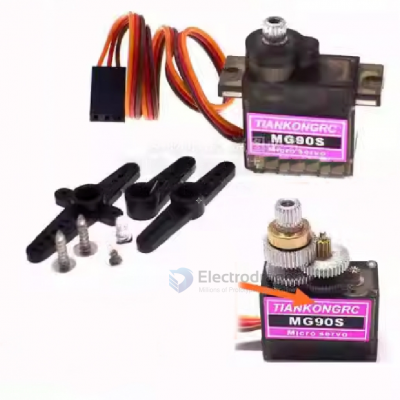

New version is for metal gears, more robost, but higher weight
Additional information
| Weight | N/A |
|---|---|
| Model (Actuator) |
![[Retired]ULN2003 Board SMD Version (Stepper Control)](https://www.electrodragon.com/wp-content/uploads/2013/10/ULN2003-Board-SMD-Version-Stepper-Control-560x560.jpg)
![Mini Vibrating Vibration Motor, Vibrator [Type]](https://www.electrodragon.com/wp-content/uploads/2012/04/Mini-Vibrating-Motor.jpg)
![Stepper Motor 3~6kg/cm^2, 200 steps/rev [Types]](https://www.electrodragon.com/wp-content/uploads/2013/07/Minebea-Stepper-Motor-36KGCM^2-200-stepsrev-560x560.jpg)
![Handy USB Lithium Battery Charge Cable [VER]](https://www.electrodragon.com/wp-content/uploads/2025/06/Handy-USB-Lithium-Battery-Charge-Cable-VER-03-400x400.jpg)
muzy (verified owner) –
Item is great and works as described. Very small and lightweight. Connectors for three different configurations were included in my servo pack as well as screws! 🙂
jounihuo (verified owner) –
These work great when getting started with servos. Nice and cheap!
geraldhasmail (verified owner) –
Realy good introduction to servos, no problems at all!
19mato (verified owner) –
best price I found
