Description

With the original PAM8610 chip, PAM8610 chip is 10W (each channel) D-level stereo audio amplifier.

  • High-quality voice reproduction, low THD + N (0.1%) No filter. At 10V power supply with 8Ω load has 10% THD of 10W.
  • Good PSRR, ultra-low noise output -90dB
  • New type direct output drive speaker without needing low-pass filter.
  • Low quiescent current, low EMI. Low power consumption, heat.
  • With off / mute noise cancellation function.
  • High efficiency of 90%, , operating voltage 7-13.5V, low THD + N, and low quiescent current,
  • With over-current / temperature / short circuit protection

Specification:

  • Work mode: high efficience D class
  • Quiescent Current: 20mA
  • Working efficiency: 90%
  • Rated output power: 10W + 10W (8Ω)
  • Frequency response: 20Hz to 50KHz
  • Operating voltage: DC7.5-15V
  • Recommended supply voltage: 12V
  • PCB board size: (40 * 40) mm
  • Weight One 24g

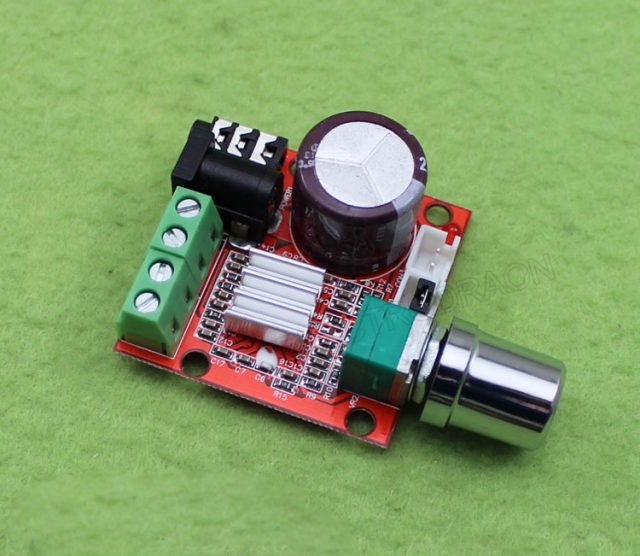

Board include mute, sound volume, L R channel output, audio jack input, features.

Note: This amplifier board must first connect the speaker, then the other! . Otherwise will be burnedl!

Schematic refer to this page.
