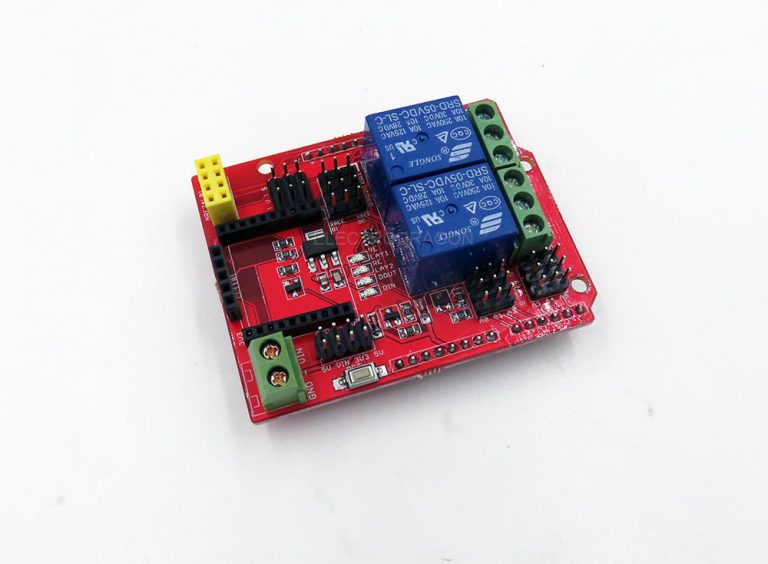

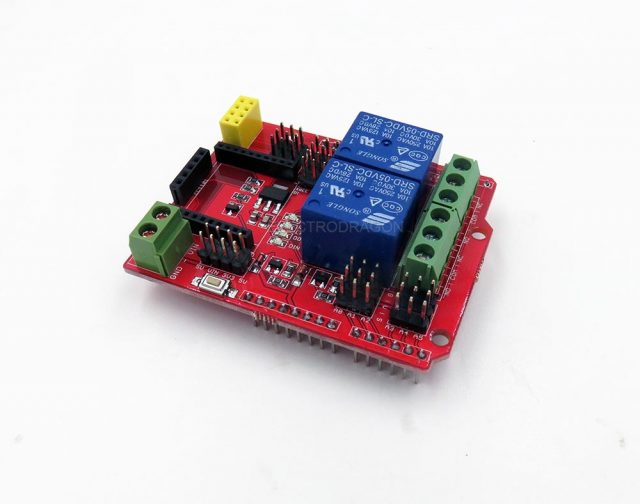

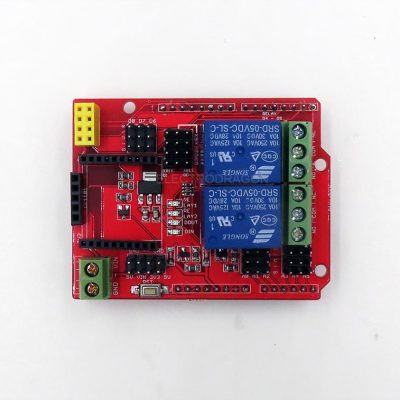

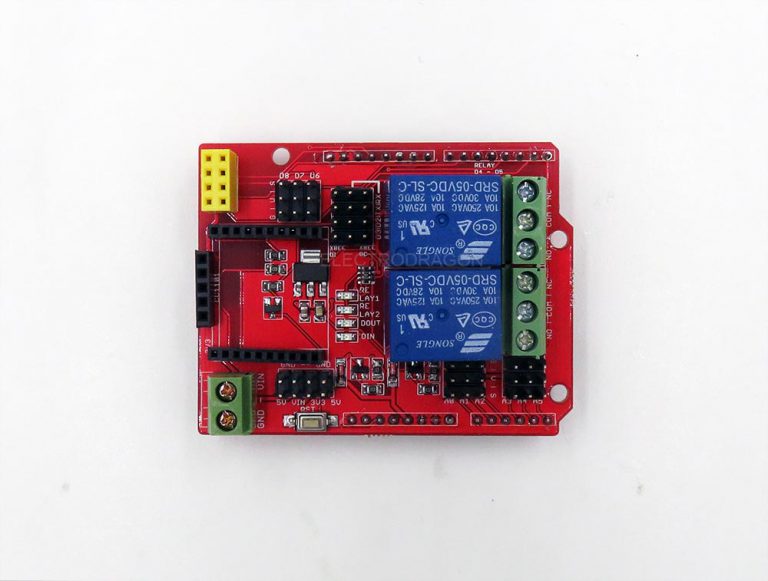

Wireless Controlled Relays Arduino Shield

(1 customer review)

$4.00

SKU: DAS1016 Categories: , Tags: , , , , ,

Description

The Relay shield is capable of controlling 2 relays. The max switching power could be 10A/250VAC or 10A/30VDC. It could be directly controlled by Arduino through digital IOs with external 9v supply. With buildin xbee/BTBee type socket, it can be wirelessly controlled via Xbee/BTBee(HC-06). Make it an ideal solution for home automation and robotics purpose.

Specification

  • 2 channel Relay
  • With XBBee/BTBee, CC1101 and nRF24L01 wireless interface
  • Wiht 6 sensor and 3 servo interface
  • Contact Rating 10A AC 250V / DC 30V
  • Max Switching Voltage AC 250V / DC 30V
  • Max Switching Current 10A
  • Electrical Life (Min) 100,000 Operations
  • Mechanical Life (Min) 10,000,000 Operations
  • Safety Standard(relay) UL cUL TUV CQC
  • Coil Working Voltage 5VDC

Documentation

Additional information

Weight 0.045 kg
Wireless Tech

Xbee

1 review for Wireless Controlled Relays Arduino Shield

  1. jeorghe (verified owner)

    This is a very complete board, all-in-one for remote control either with Nordic 2.4 link or simple 433Mhz.
    Very usefull and easy !
