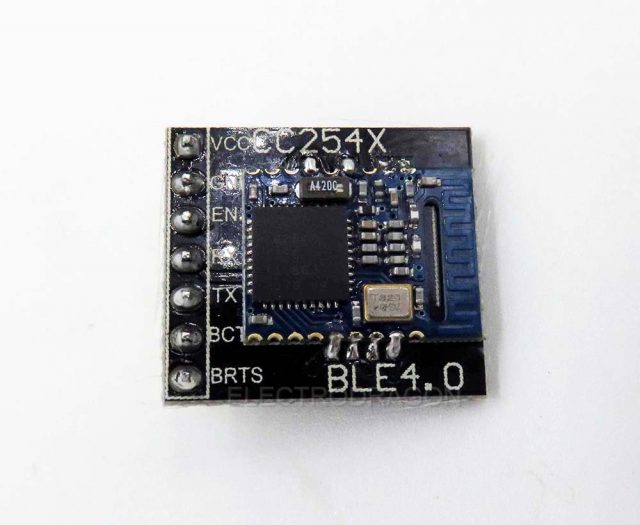

[Replaced by EY-08]EC40 BLE Serial Data Breakout Board (Slave, CC2540)

$4.60

Out of stock

SKU: NBL1044 Category: Tags: , , ,

Description

Features:

  • No need any Bluetooth RF protocol stack and application experience
  • supports bridging mode (passthrough)
  • max speed transfer rates of up to 6Kbps / S
  • ultra low-power communications
    • TX Current≤0.5mA
    • RX Current≤0.5mA
  • low standby power 0.3-0.4uA
  • support for Apple iphone4S, ipd3, ipd4 and later models
  • support Android 4.3 mobile phone with BLE bluetooth feature
  • Size: 1.5*1.1cm

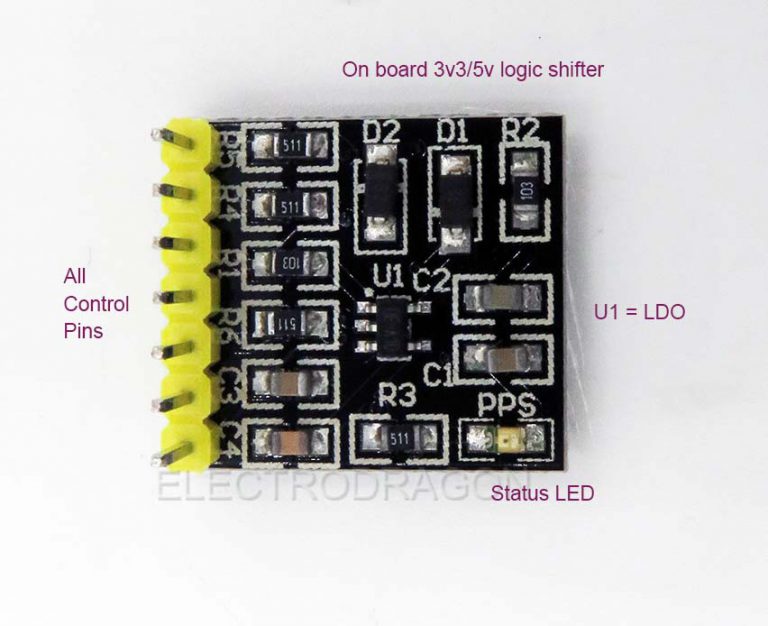

  • On board logice shifter and LDO to support 3v3 and 5V power supply and communciation.

About Power consumption:

  • Sleep mode 0.3uA
  • Broadcast (broadcast cycle 20ms) 0.15-1.01mA
  • Connection status (connected interval 20ms) 2.06mA
  • BRTS buy low-emission state 8.74mA

Wiring (Standard 2.54mm):

  • 3.3V ——— 3.3v
  • GND ——— GND
  • TX ———– RXD
  • RX ———– TXD
  • EN ———– connected to IO or directly connected to GND
  • BRTS ——– connected to IO or directly connected to GND

More info about BLE4.0 can be found on this page.
