Description

  • Support CAN V2.0B specification, the communication speed 1Mb / S
  • 0 to 8 bytes of data fields
  • Standard frame, expanding the frame and remote frame
  • 5V DC power supply module, SPI interface protocol control
  • 120 ohm termination resistors. Impedance matching, ensure drive capability, long-distance data transmission to prevent signal radiation
  • Module Size: 4.4cm x 2.8cm screw holes center to center spacing 23mm x 38mm
  • Current:
    • typ. 5mA
    • 1 mA standby current. Except the power indicator.
  • Operating temperature: Industrial grade to 85 ℃ -40 ℃

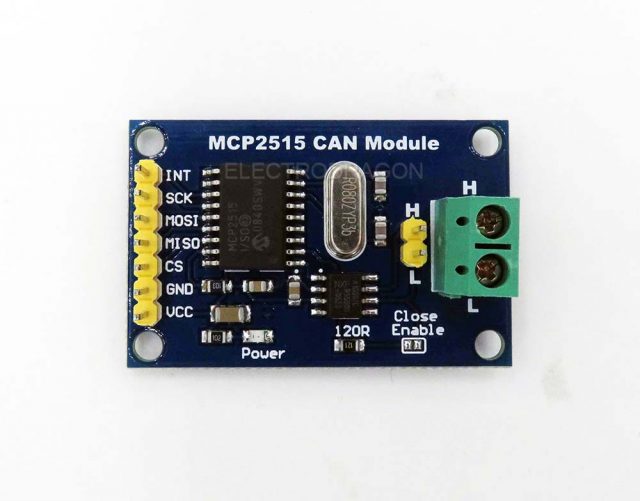

  • On Board MCP2515 and TJA1050 (Replace and compatible with MCP2551)

Documentation on this page.
